Component Location Index

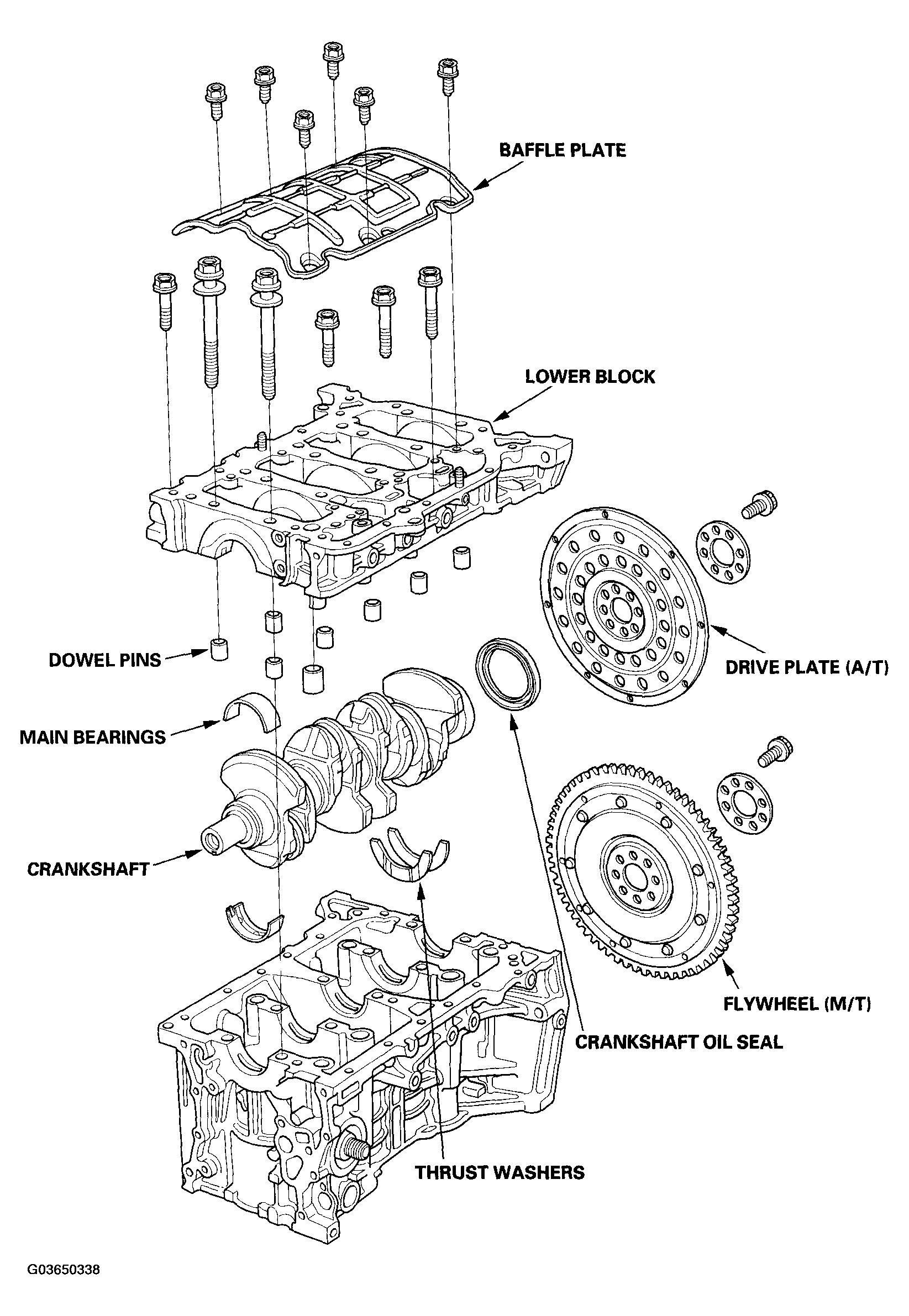

Fig 1: Identifying Engine Block Component Location Index (1 of 2)
G03650338Courtesy of AMERICAN HONDA MOTOR CO., INC.

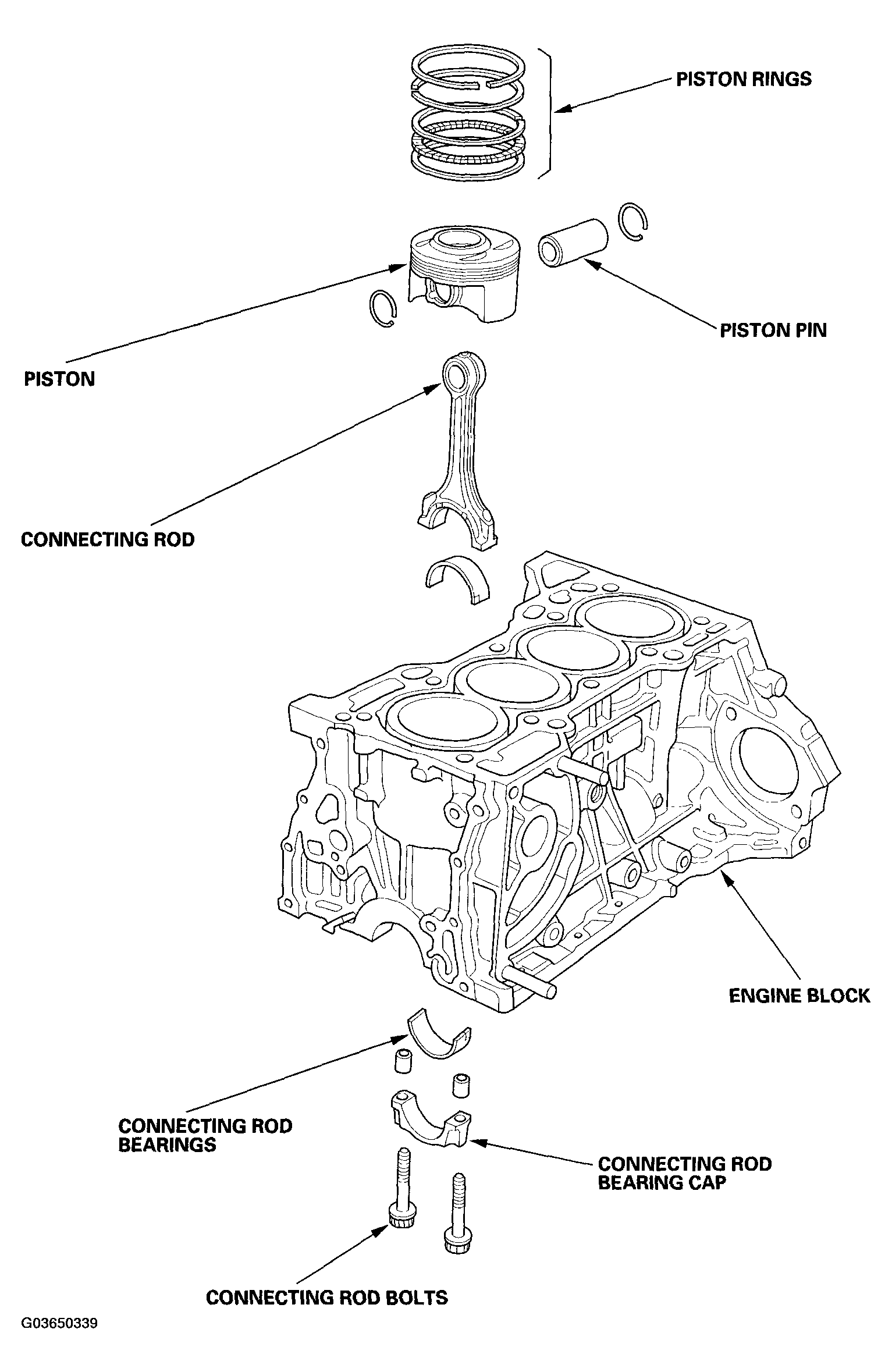

Fig 2: Identifying Engine Block Component Location Index (2 of 2)
G03650339Courtesy of AMERICAN HONDA MOTOR CO., INC.
