Power and Ground Distribution: Locations

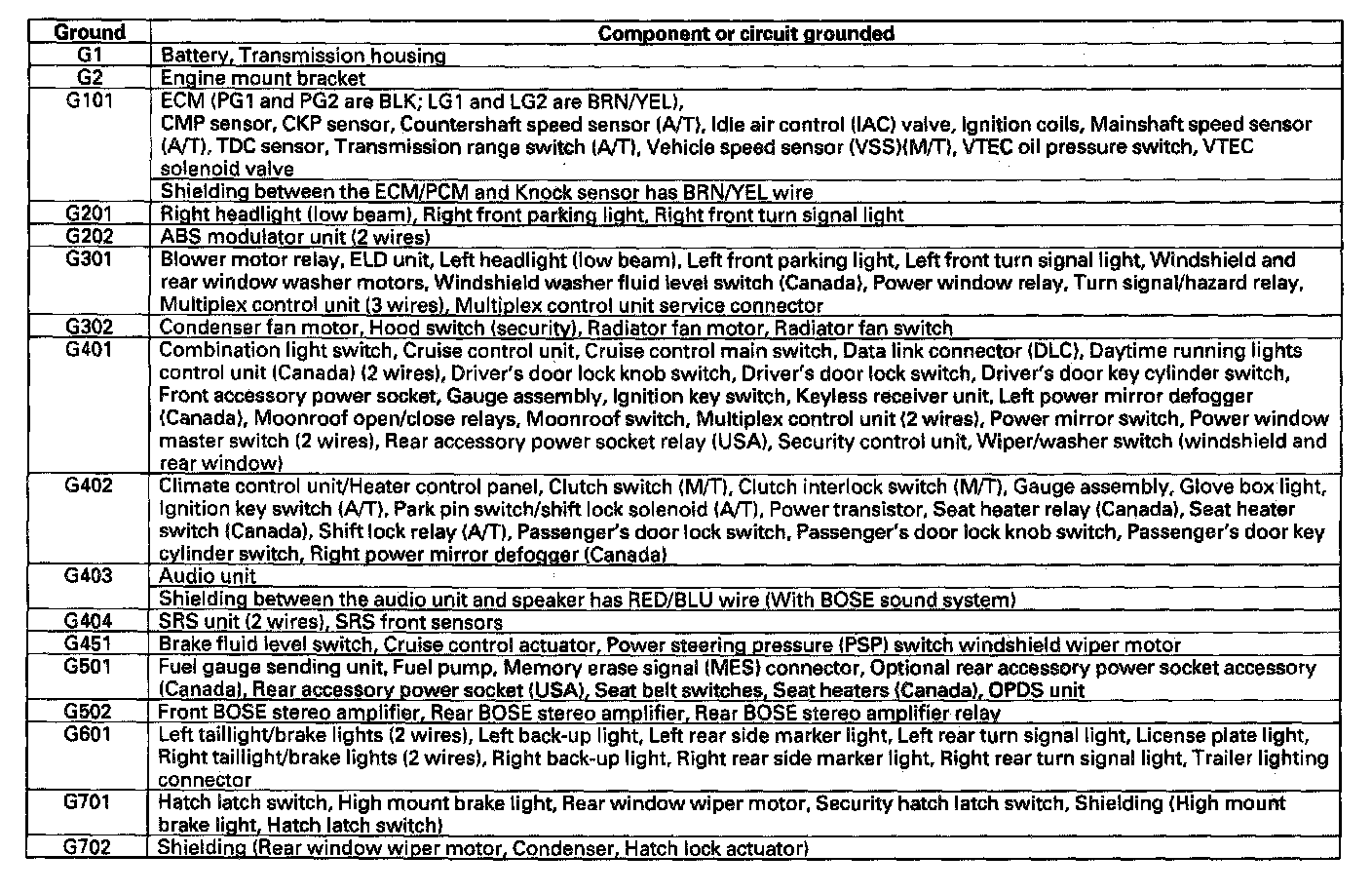

Ground To Component Index (G1 - G702):

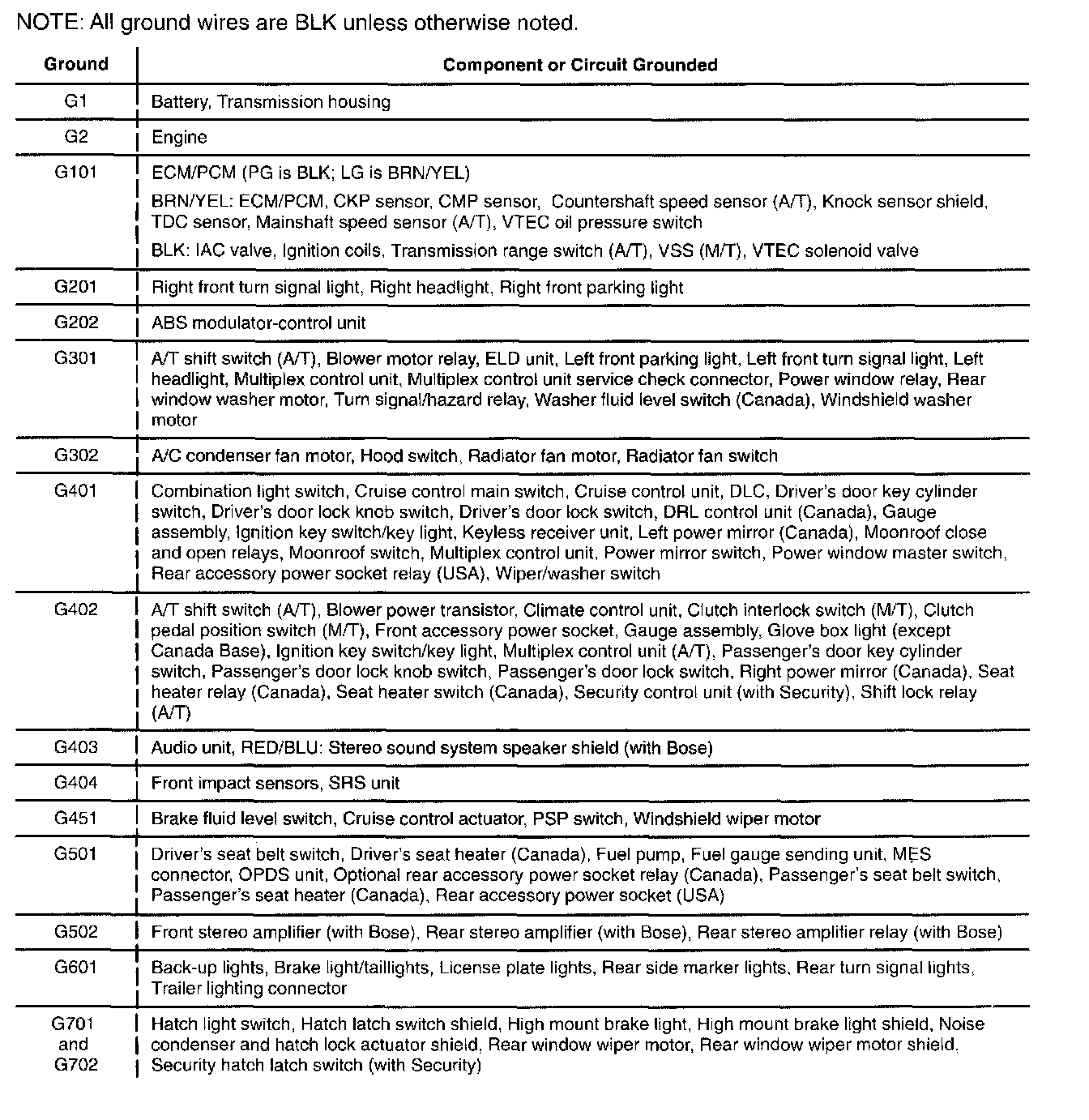

Ground-To-Component Index Image 6-5:
