Passenger's Window Switch Test/ Replacement

Remove the door grip cover (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 5P connector (A) from the passenger's power window switch (B).

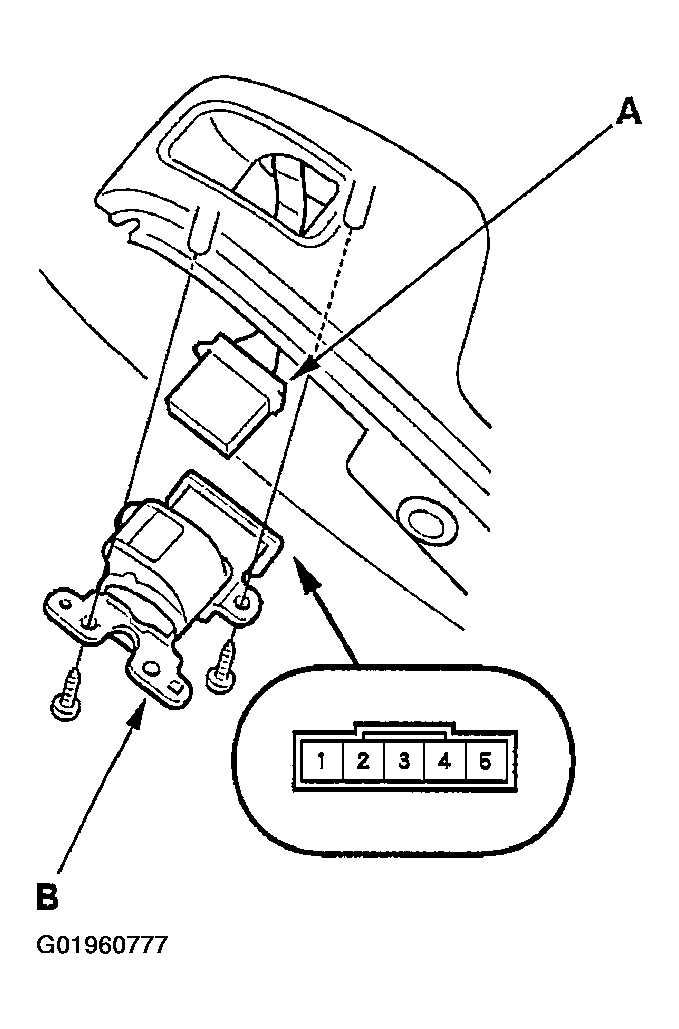

Fig 1: Disconnecting 5P Connector From Passenger's Window Switch
Check for continuity between the terminals in each switch position according to the table.

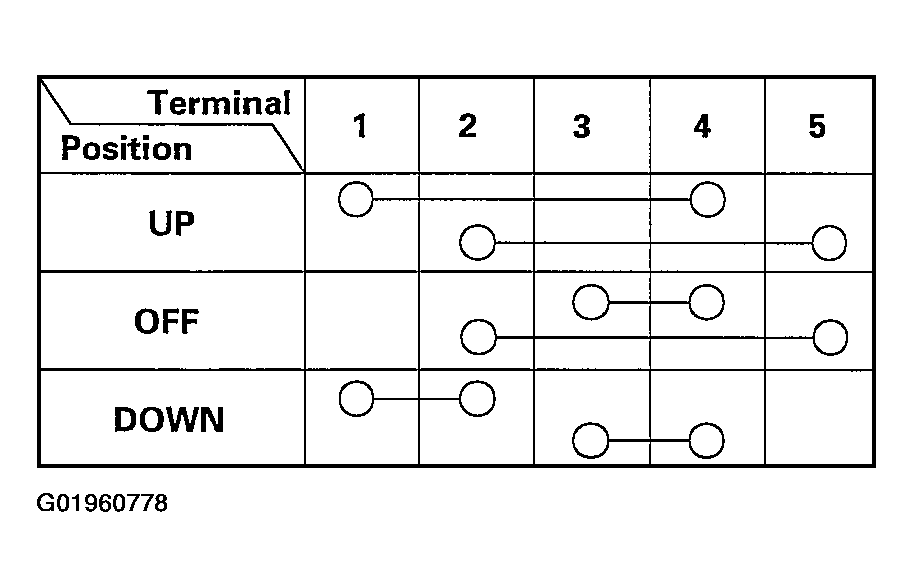

Fig 2: Checking Continuity Between Terminals Table (Left)

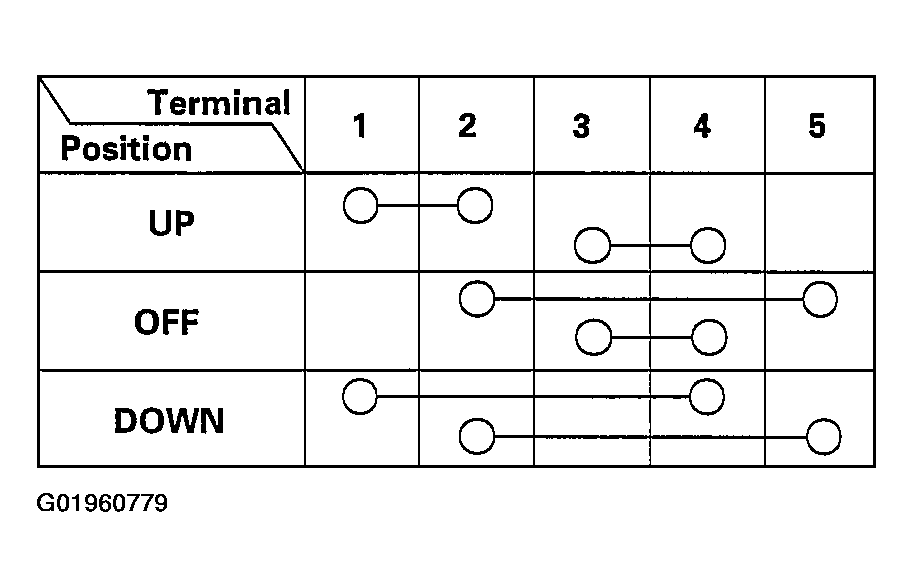

Fig 3: Checking Continuity Between Terminals Table (Right)
If the switch is faulty, remove the two screws and replace the switch.
