Oil Pressure Switch Replacement

  1. Disconnect the oil pressure switch connector, then remove the oil pressure switch.

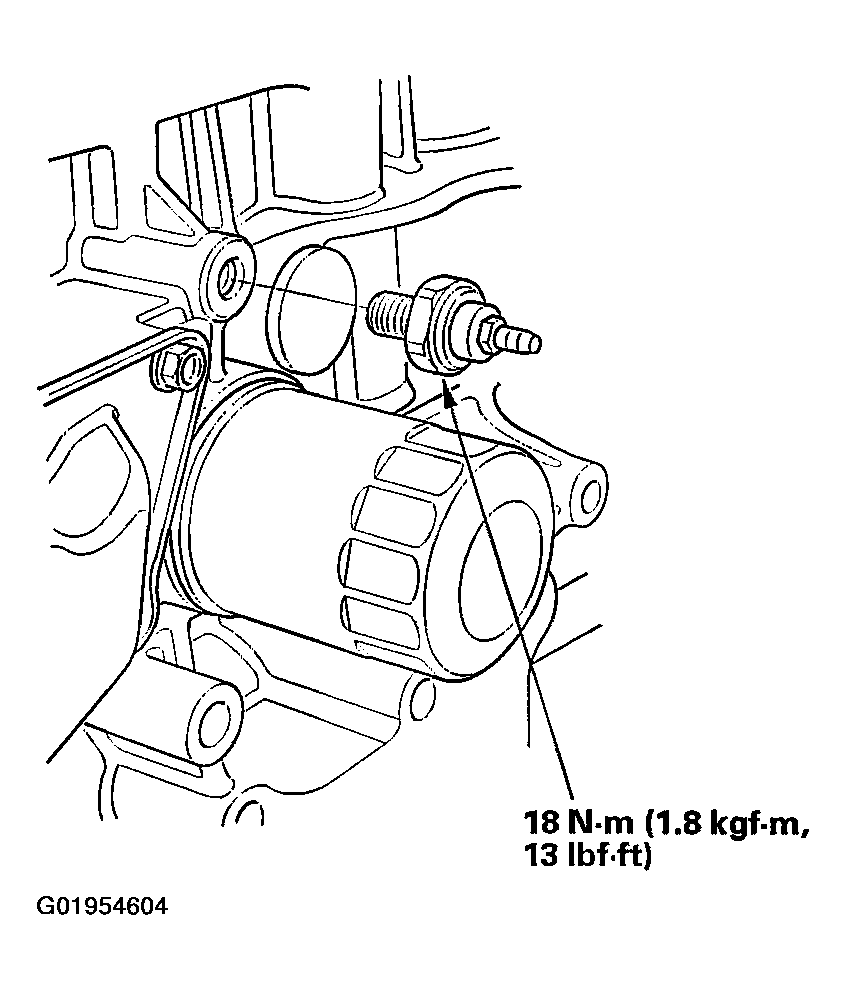

    Fig 1: Removing Oil Pressure Switch
    G01954604
  2. Apply liquid gasket to the oil pressure switch threads, then install the oil pressure switch.
