Fuel Pressure Regulator Replacement

  1. Remove the fuel pump (see Fuel Pump/Fuel Gauge Sending Unit Replacement  ).
  2. Remove the fuel pressure regulator (A).

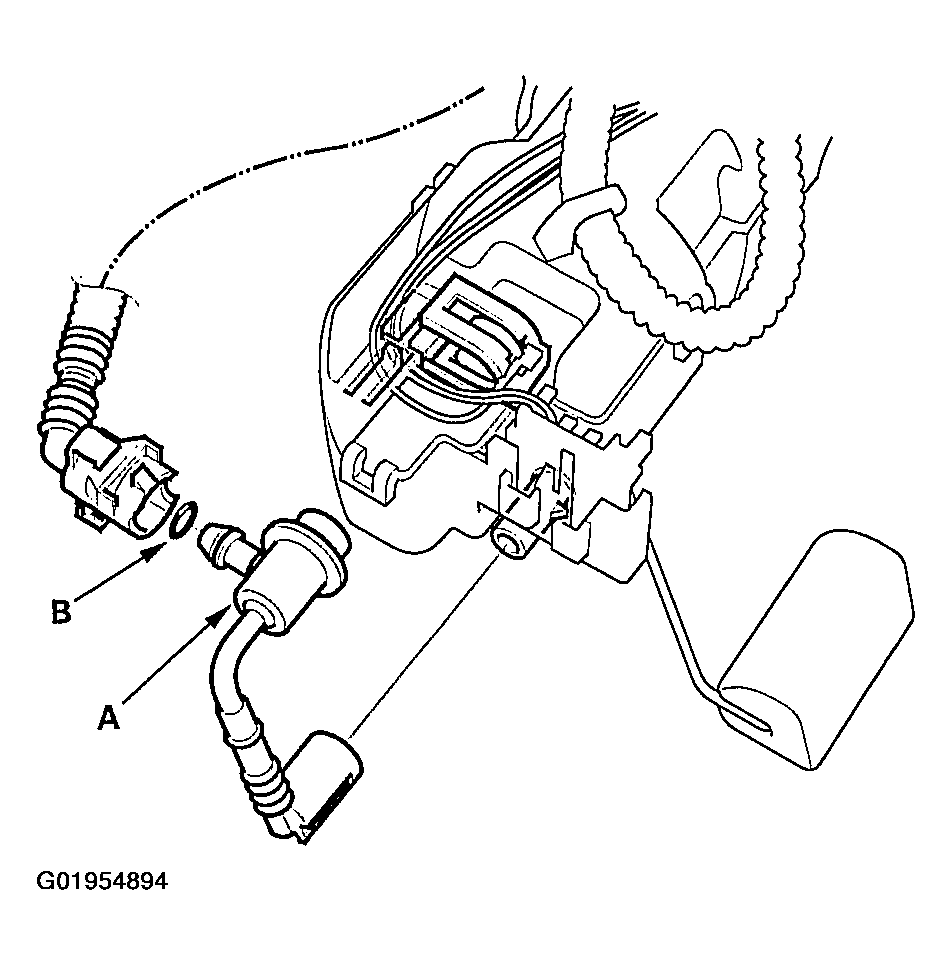

    Fig 1: Removing Fuel Pressure Regulator
    G01954894
  3. Install the part in the reverse order of removal with a new O-ring (B).
