ECM/PCM Inputs and Outputs at Connector A (31P)

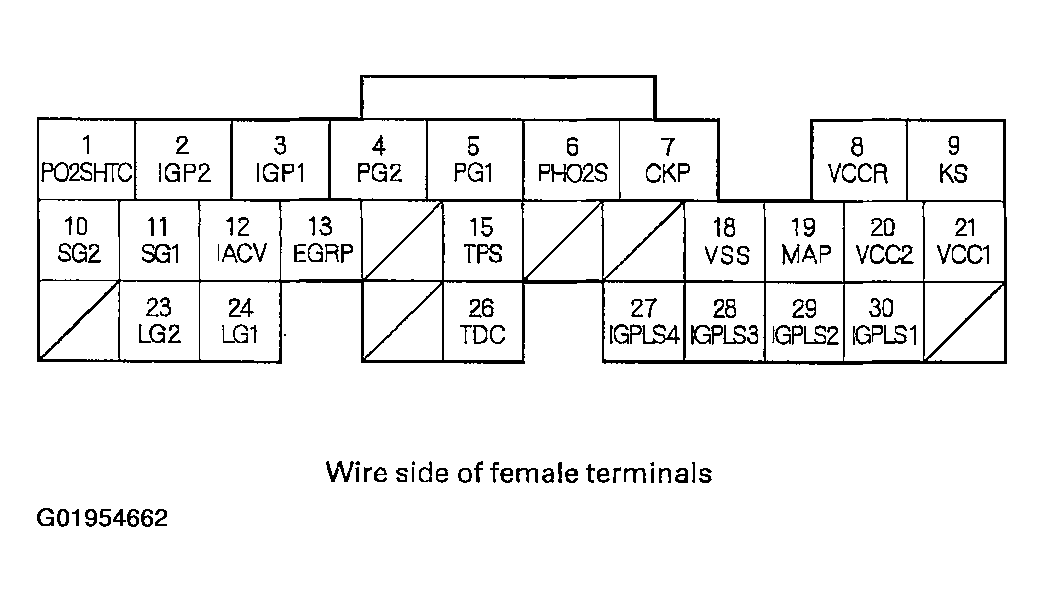

Fig 1: Identifying Connector A (31P) Terminals

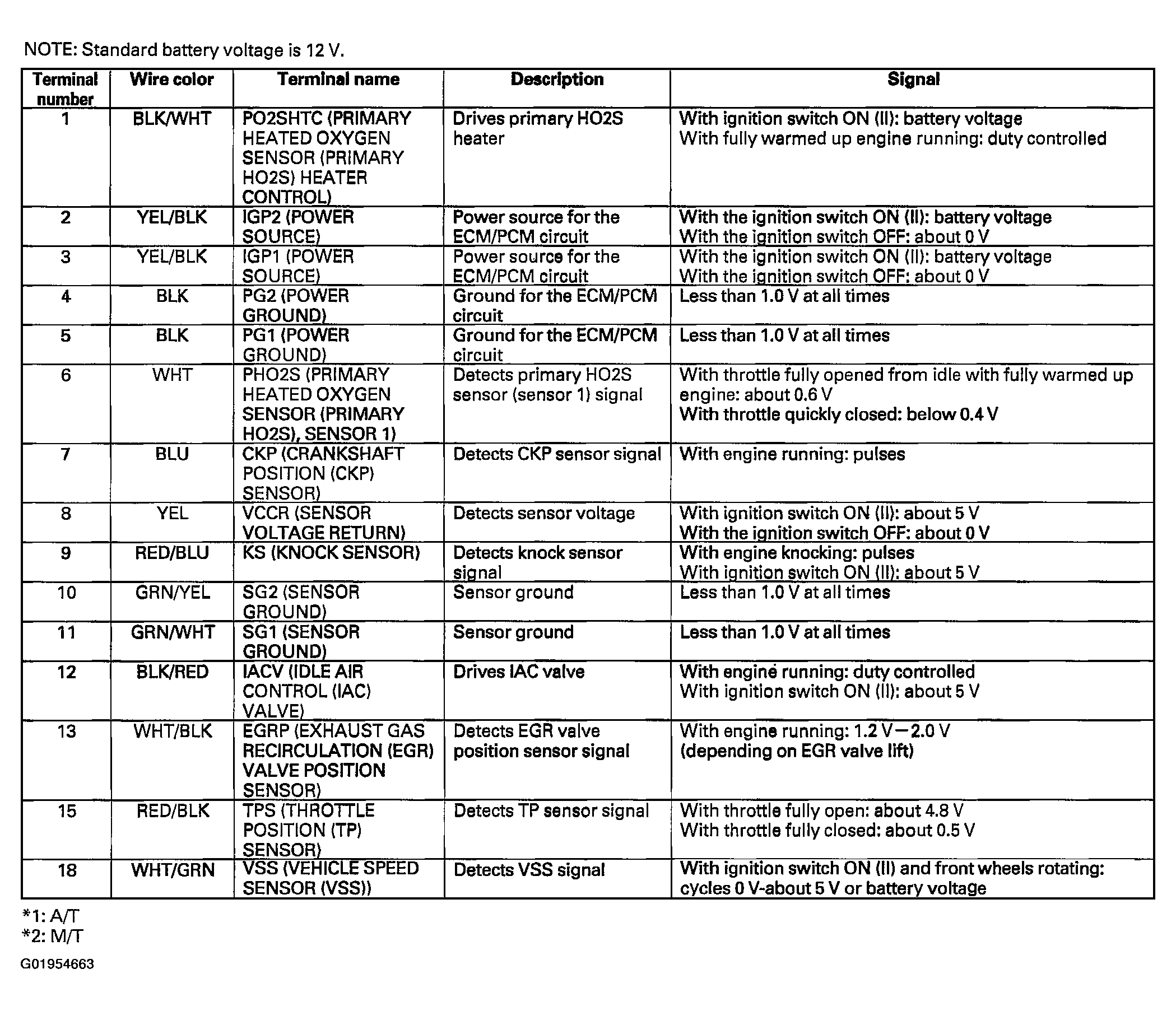

Fig 2: ECM/PCM Connector A (31P) Inputs & Outputs Pin Voltage Chart

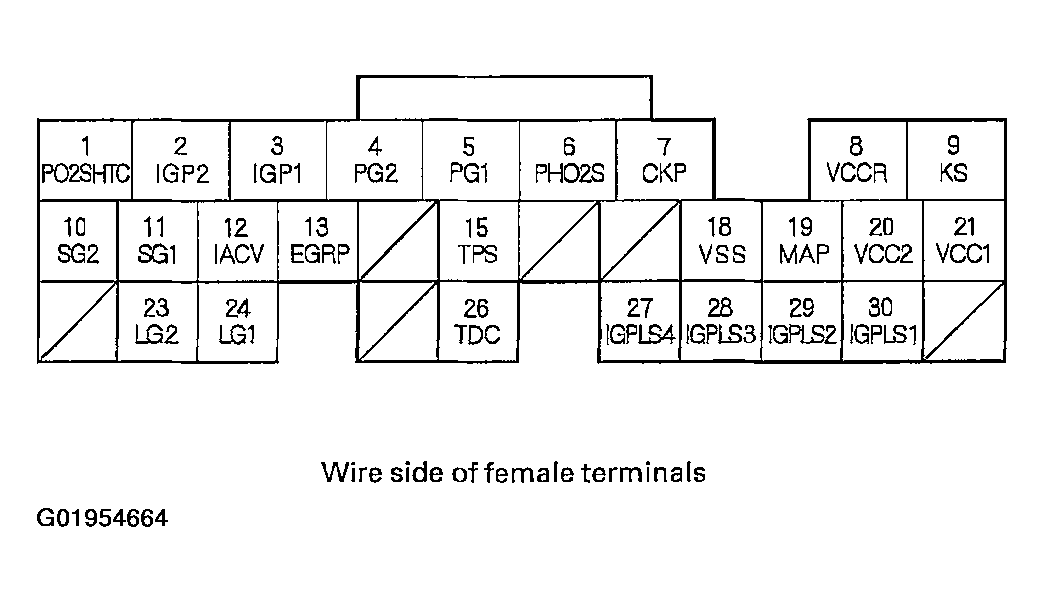

Fig 1: Identifying Connector A (31P) Terminals

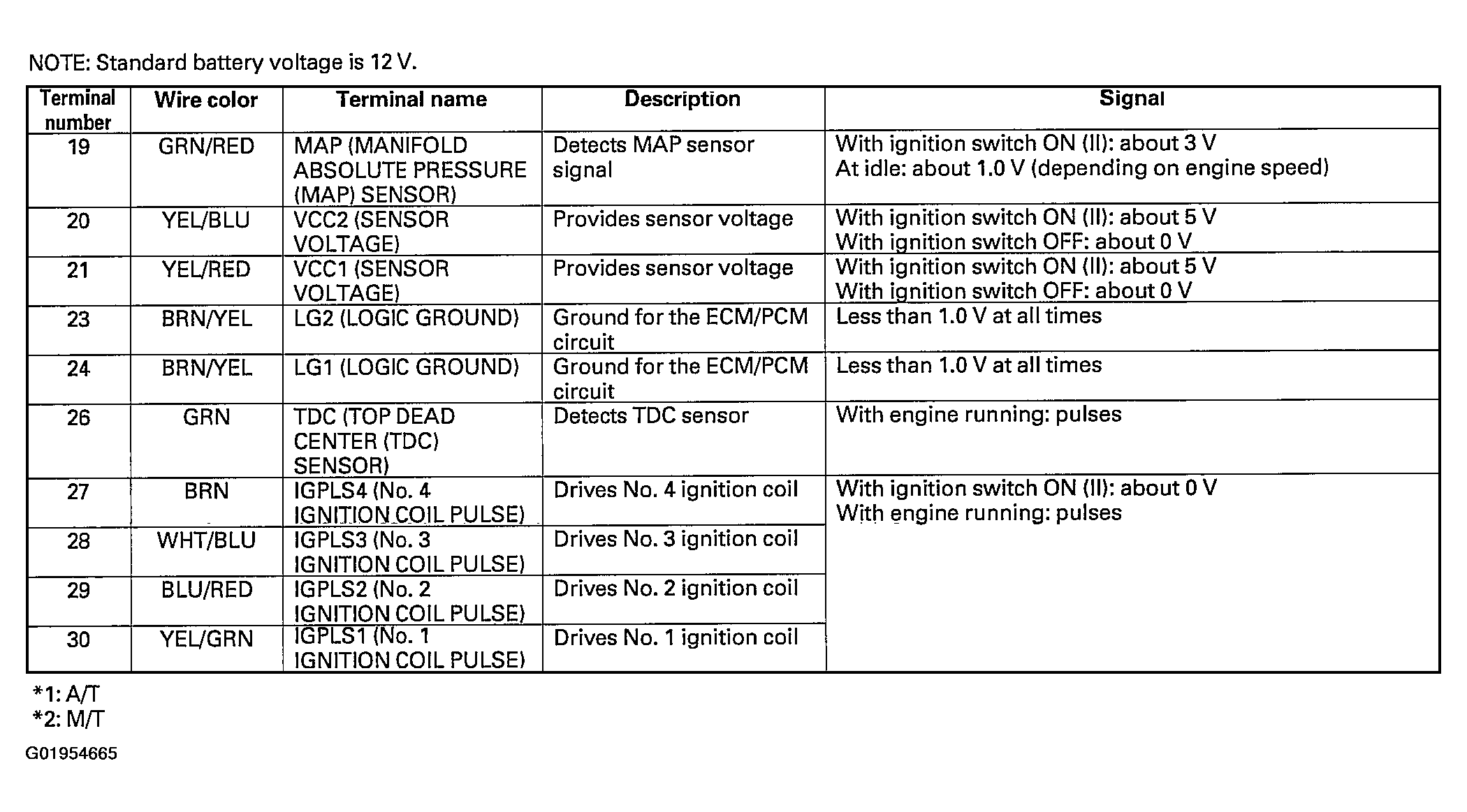

Fig 2: ECM/PCM Connector A (31P) Inputs & Outputs Pin Voltage Chart
