ECM/PCM Inputs and Outputs at Connector E (31P)

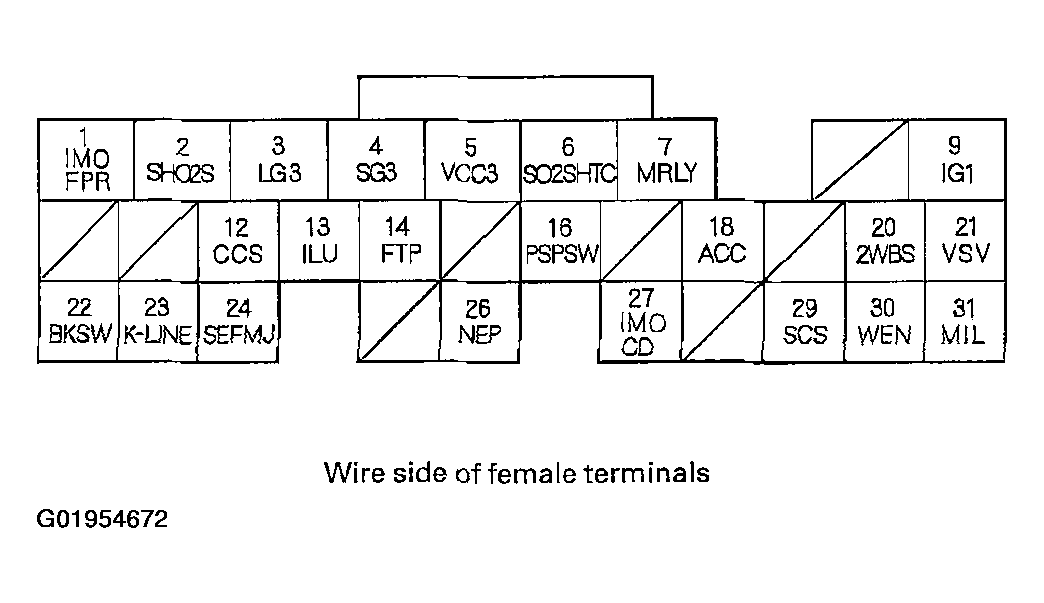

Fig 1: Identifying Connector E (31P) Terminals

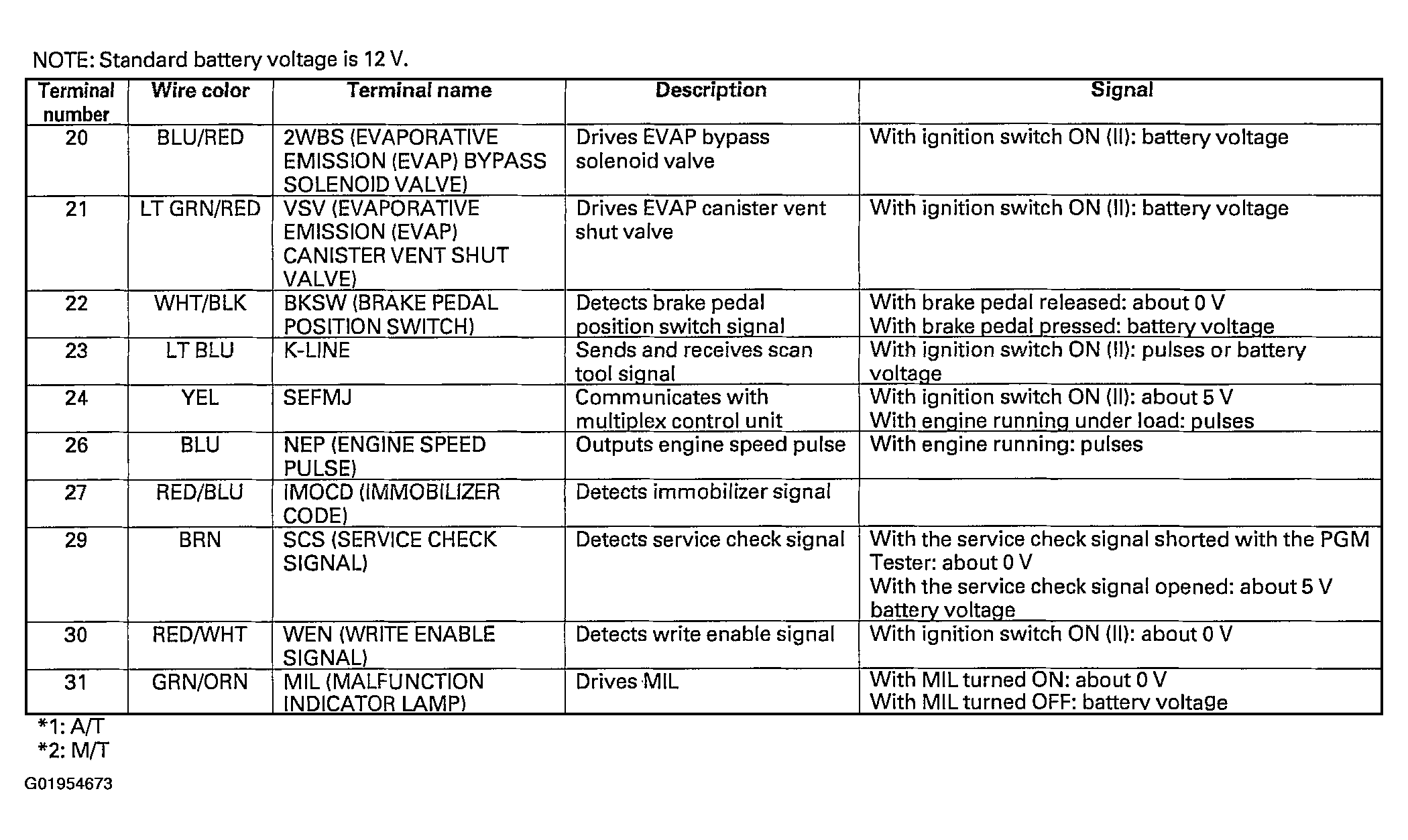

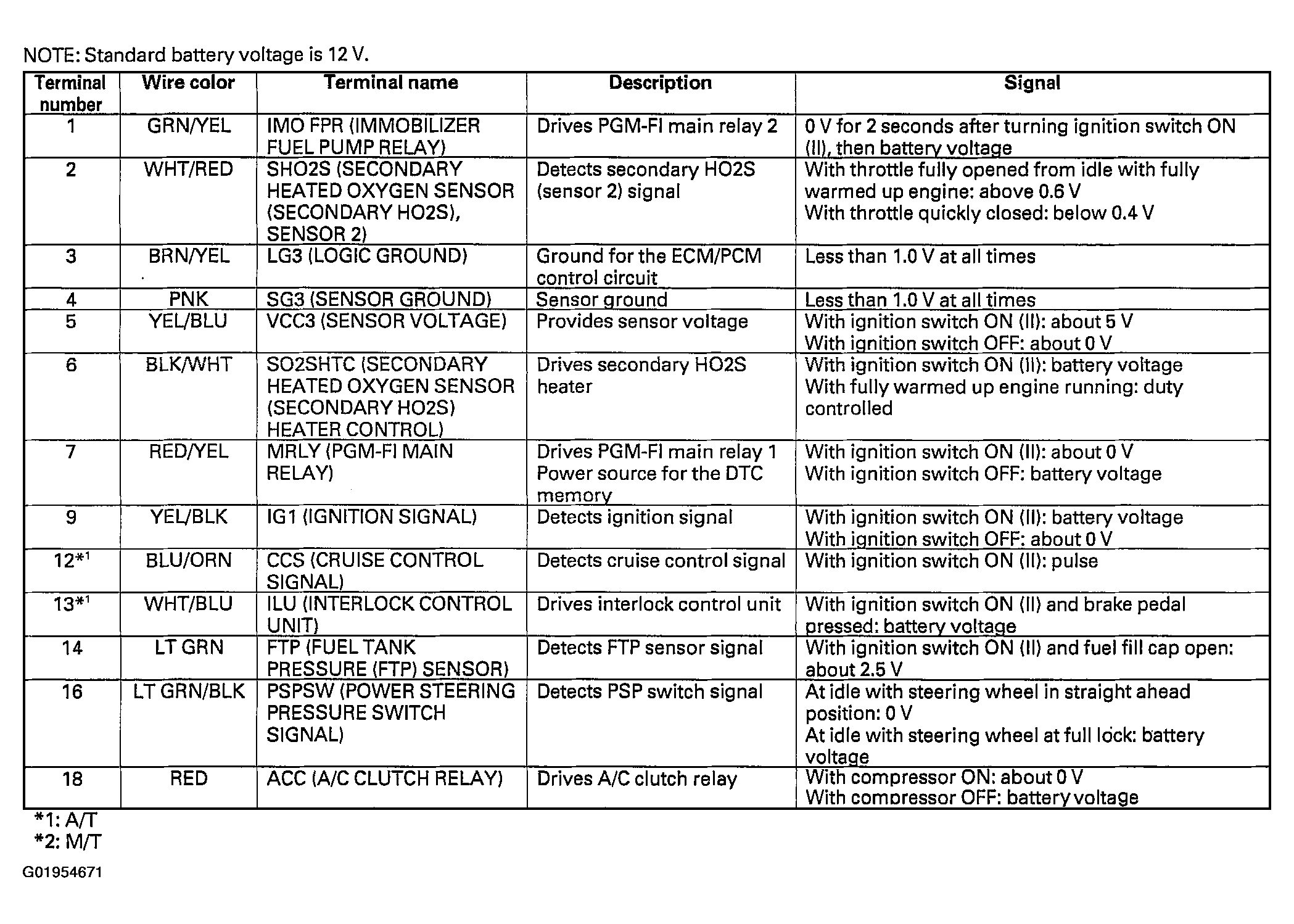

Fig 2: ECM/PCM Connector E (31P) Inputs & Outputs Pin Voltage Chart

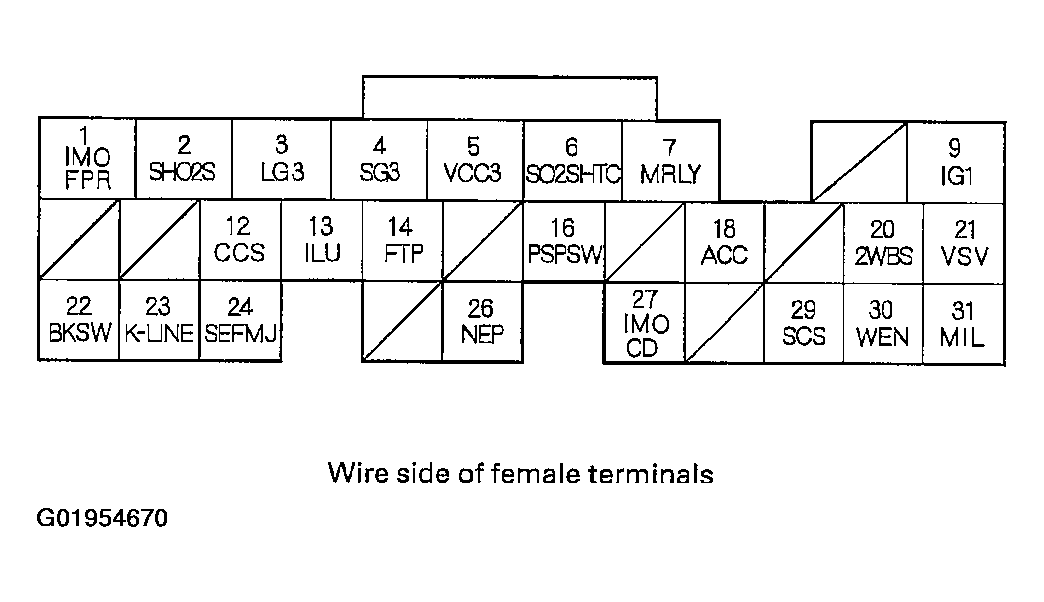

Fig 1: Identifying Connector E (31P) Terminals
Fig 2: ECM/PCM Connector E (31P) Inputs & Outputs Pin Voltage Chart
