Intake Air System Diagram

This system supplies air for engine needs. A resonator in the intake air pipe provides additional silencing as air is drawn into the system.

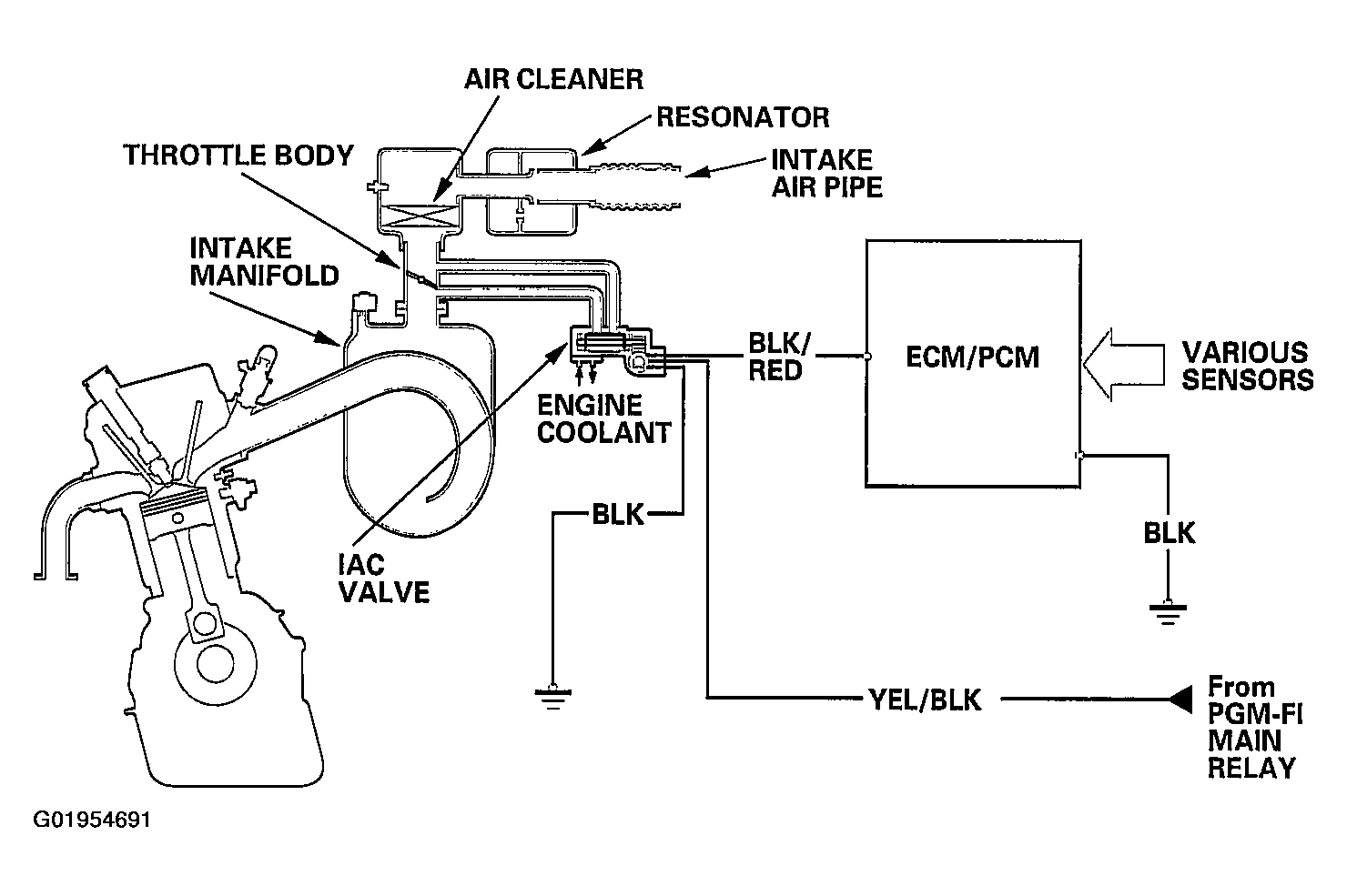

Fig 1: Intake Air System Diagram
G01954691
