ATF Level Check
NOTE:
Keep all foreign particles out of the transmission.
- Warm up the engine to normal operating temperature (the radiator fan comes on).
- Park the vehicle on level ground, and turn the engine off.

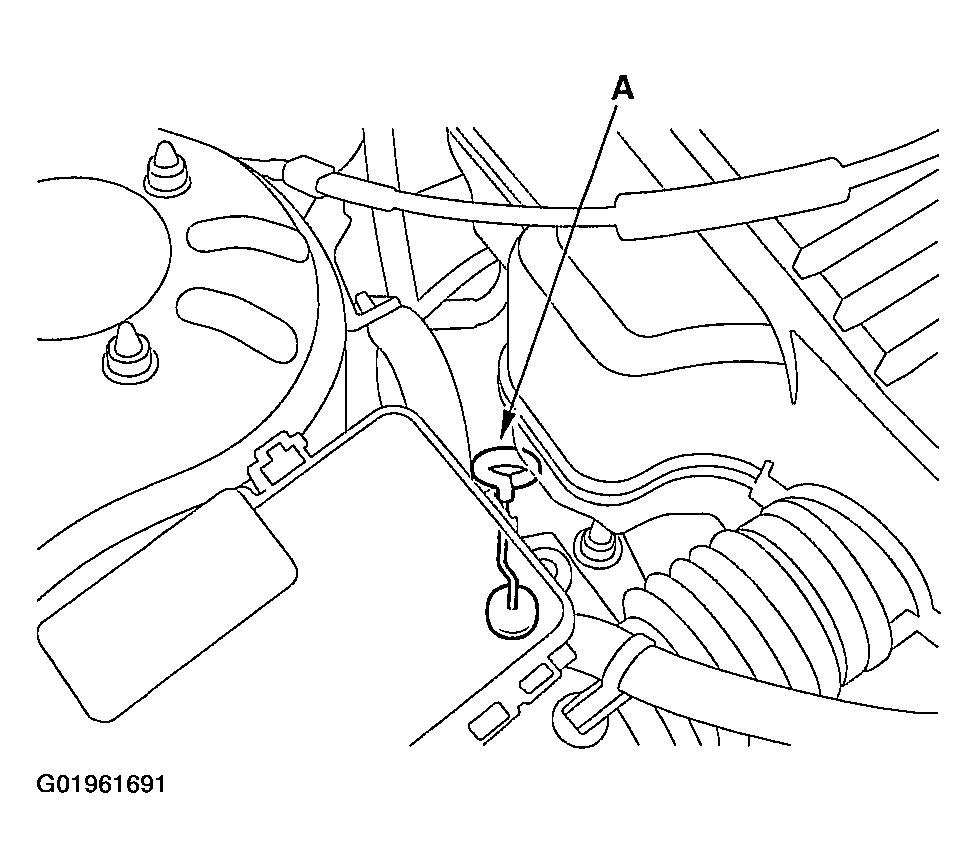

- Remove the dipstick (yellow loop) (A) from the transmission, and wipe it with a clean cloth.
- Insert the dipstick into the transmission.

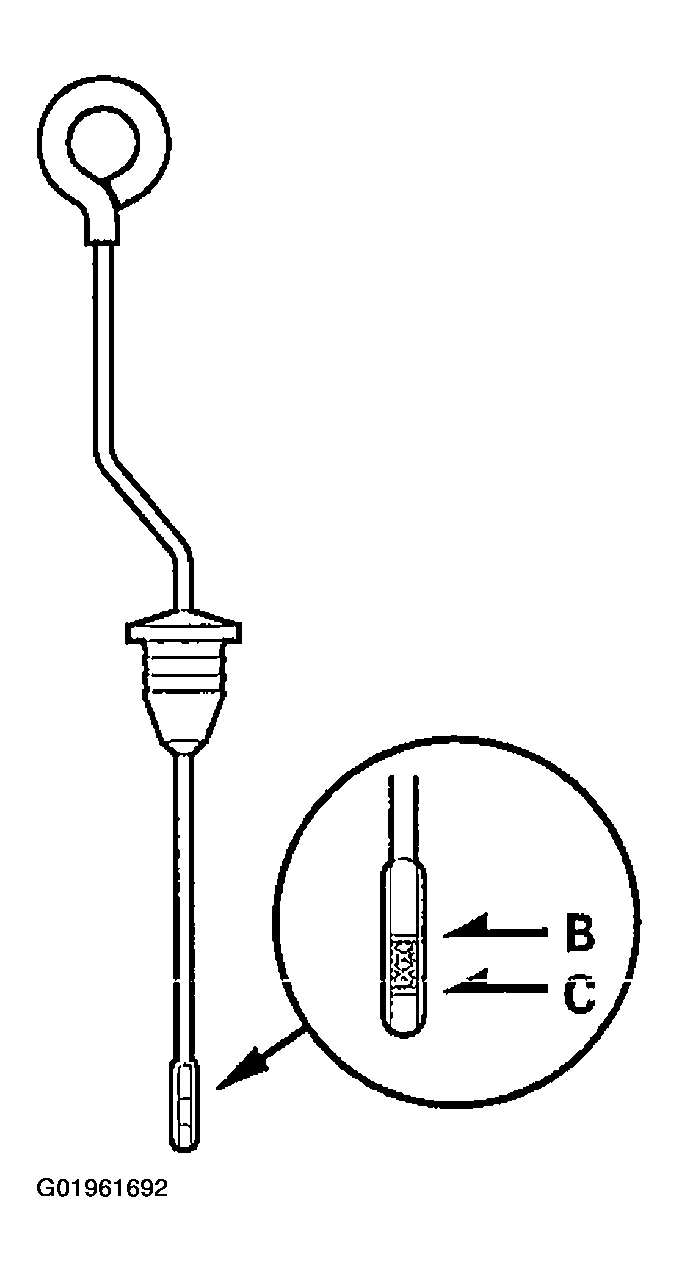

- Remove the dipstick and check the fluid level. It should be between the upper mark (B) and lower mark (C).
- If the level is below the lower mark, pour the recommended fluid into the dipstick hole to bring it to the upper mark. Always use Honda ATF-Z1 Automatic Transmission Fluid (ATF). Using a non-Honda ATF can affect shift quality.

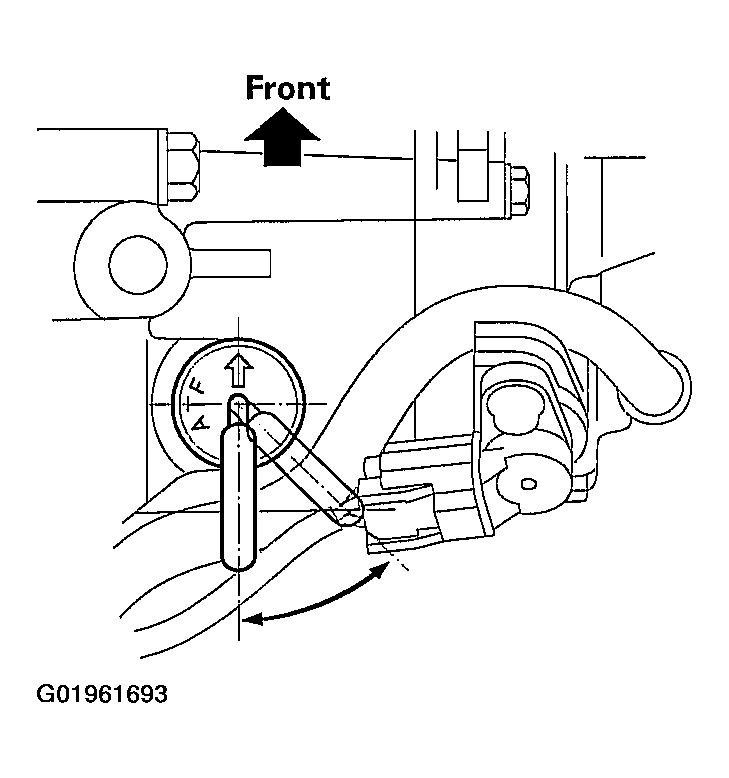

- Insert the dipstick back into the transmission in the direction shown in Fig 3 .
