Mode Control Motor Replacement

  1. Disconnect the 10P connector (A) from the mode control motor (B). Remove the self-tapping screws and the mode control motor from the heater unit.

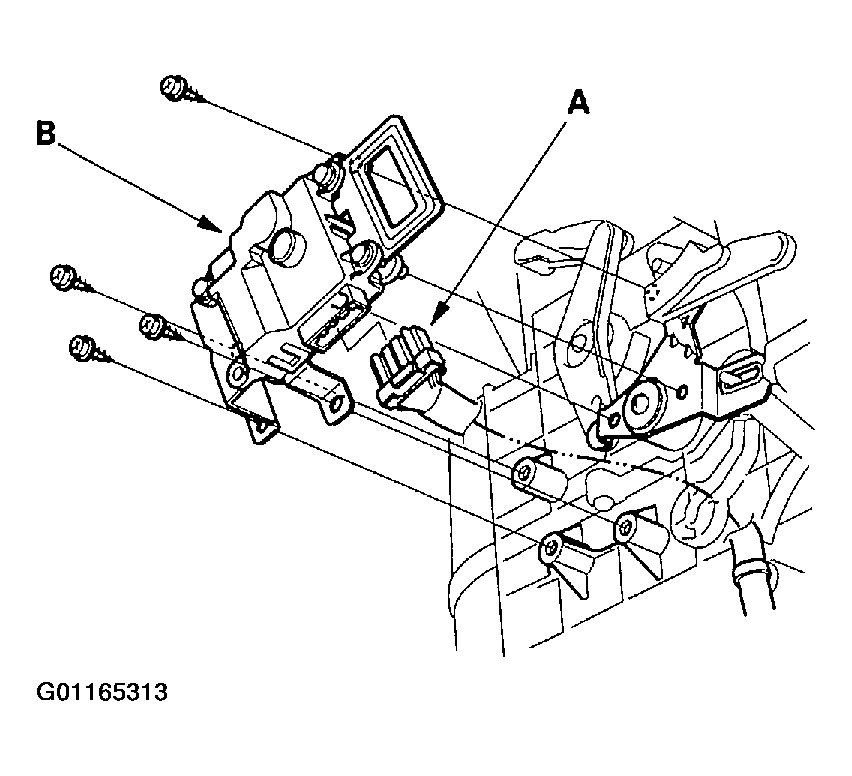

    Fig 1: Removing The Mode Control Motor
    G01165313Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the motor in the reverse order of removal. After installation, make sure the mode control motor runs smoothly.
