Recirculation Control Motor Replacement

  1. Remove the evaporator (see EVAPORATOR REMOVAL AND INSTALLATION ).
  2. Disconnect the 5P connector (A) from the recirculation control motor (B). Remove the self-tapping screws and the recirculation control motor from the blower unit.

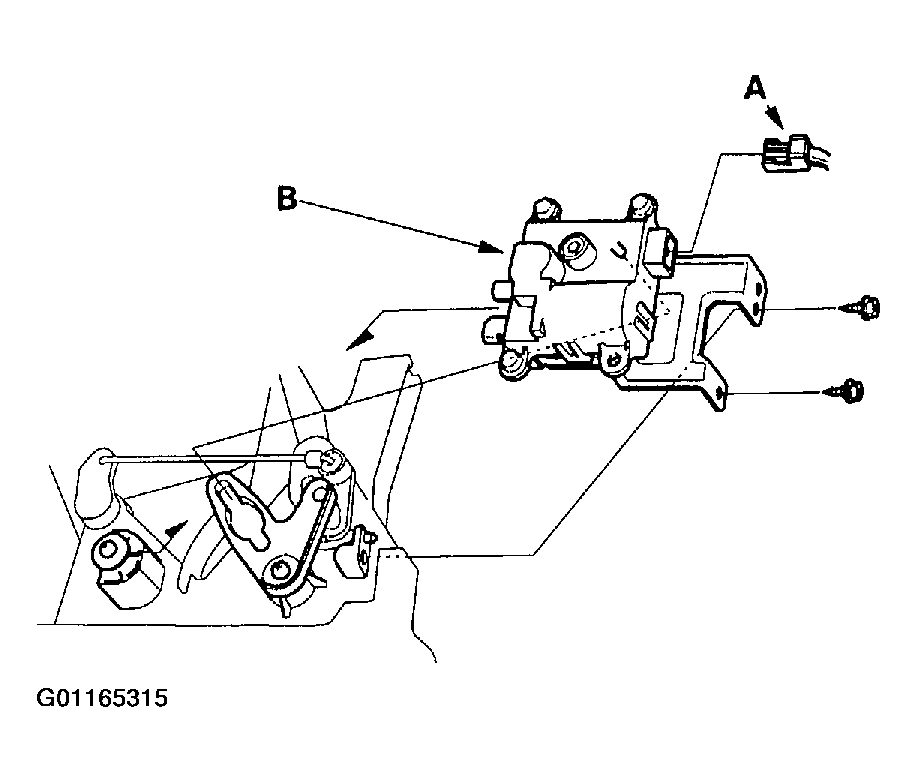

    Fig 1: Removing The Recirculation Control Motor
    G01165315Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the motor in the reverse order of removal. After installation, make sure the recirculation control motor runs smoothly.
