Brake Pedal Position Switch Test

Disconnect the 4P connector from the switch (A).

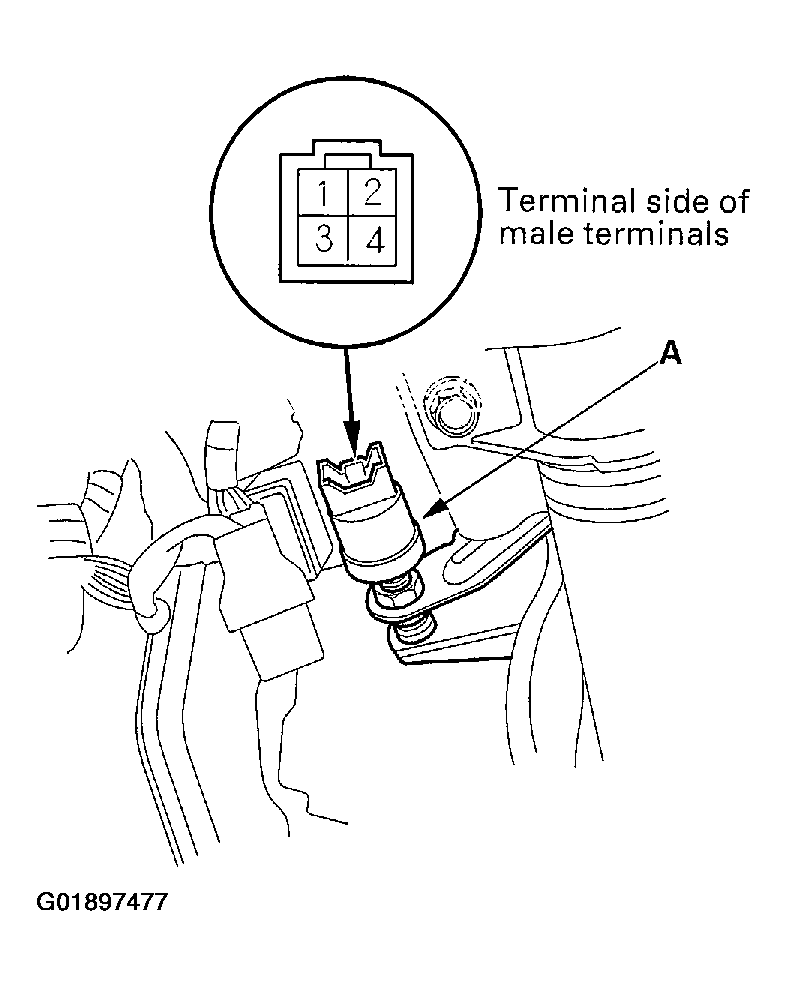

Fig 1: Disconnecting The 4P Connector From The Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the brake pedal position switch.
Check for continuity between the terminals according to the table.
- If the continuity is not as specified, replace the brake pedal position switch.
- If OK, install the brake pedal position switch and adjust the pedal height (see BRAKE PEDAL HEIGHT & FREE PLAY ).

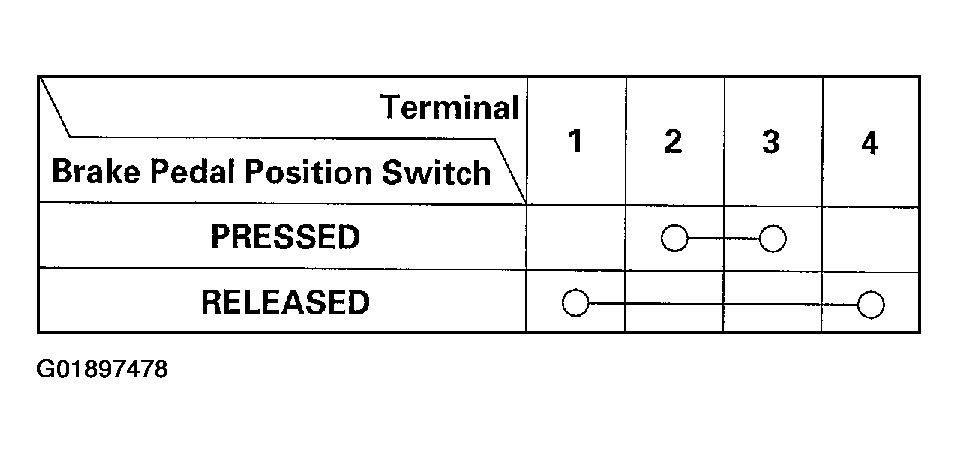

Fig 2: Brake Pedal Position Switch Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
