Symptom Troubleshooting Index

NOTE:

The numbers in the table show the troubleshooting sequence.
Before troubleshooting.
- check the No. 9 (7.5A) and No. 6 (15A) fuses in the driver's under-dash fuse/relay box, and the No. 47 (20A) fuse in the under-hood fuse/relay box.
- check that the horn sounds.
- check the tachometer to see if it works properly.

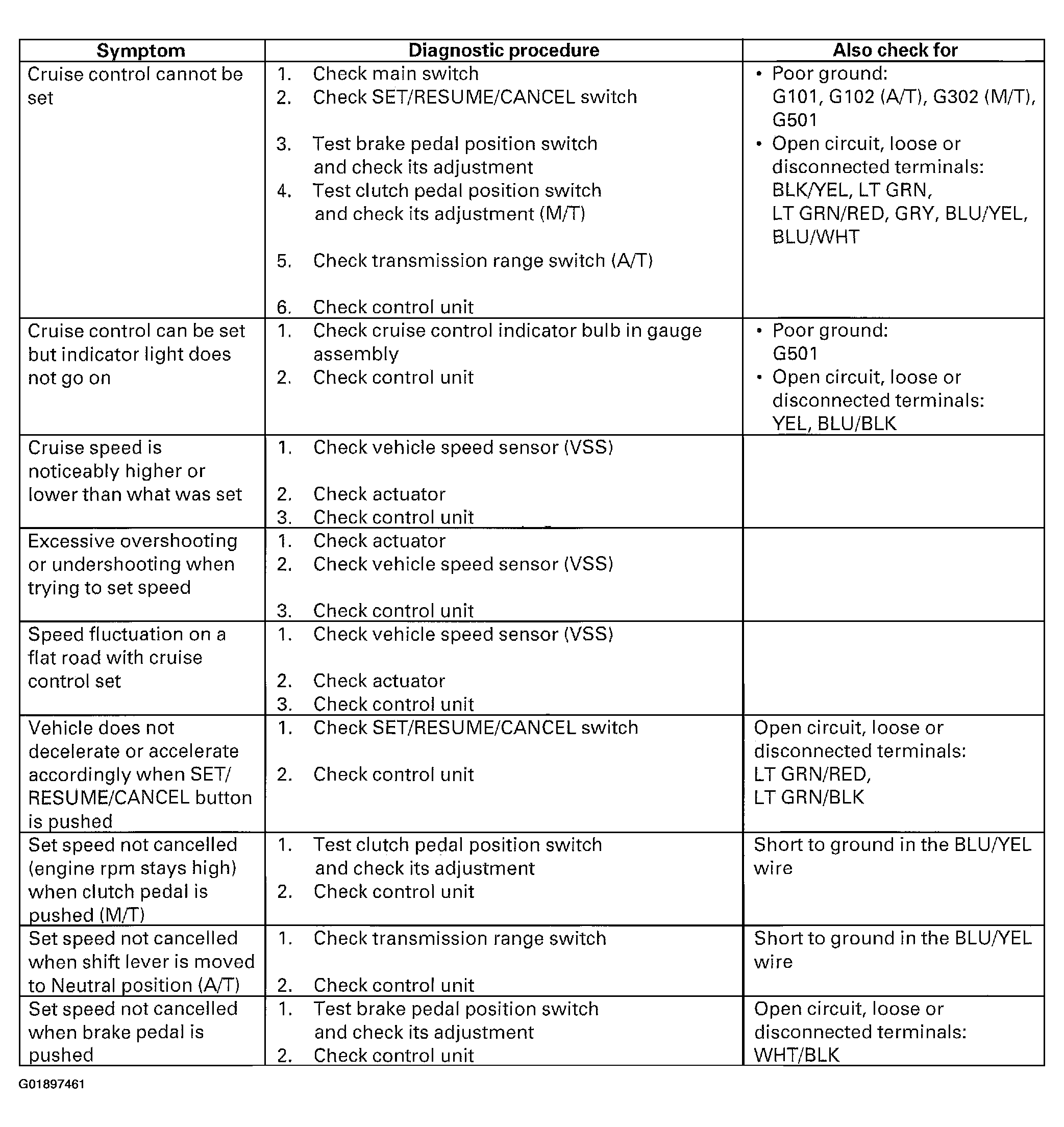

Fig 1: Troubleshooting Table (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

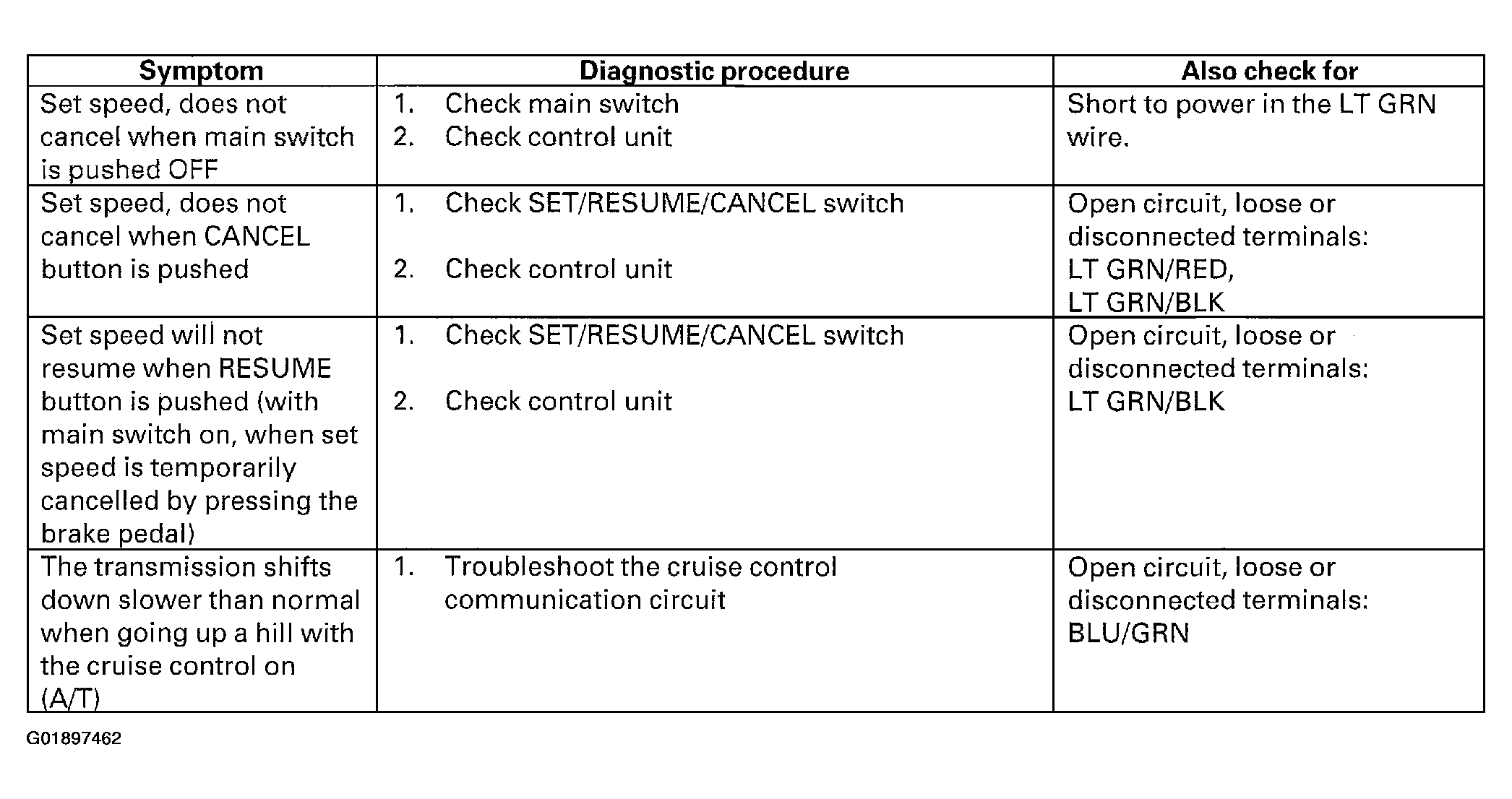

Fig 2: Troubleshooting Table (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
