Circuit Diagram

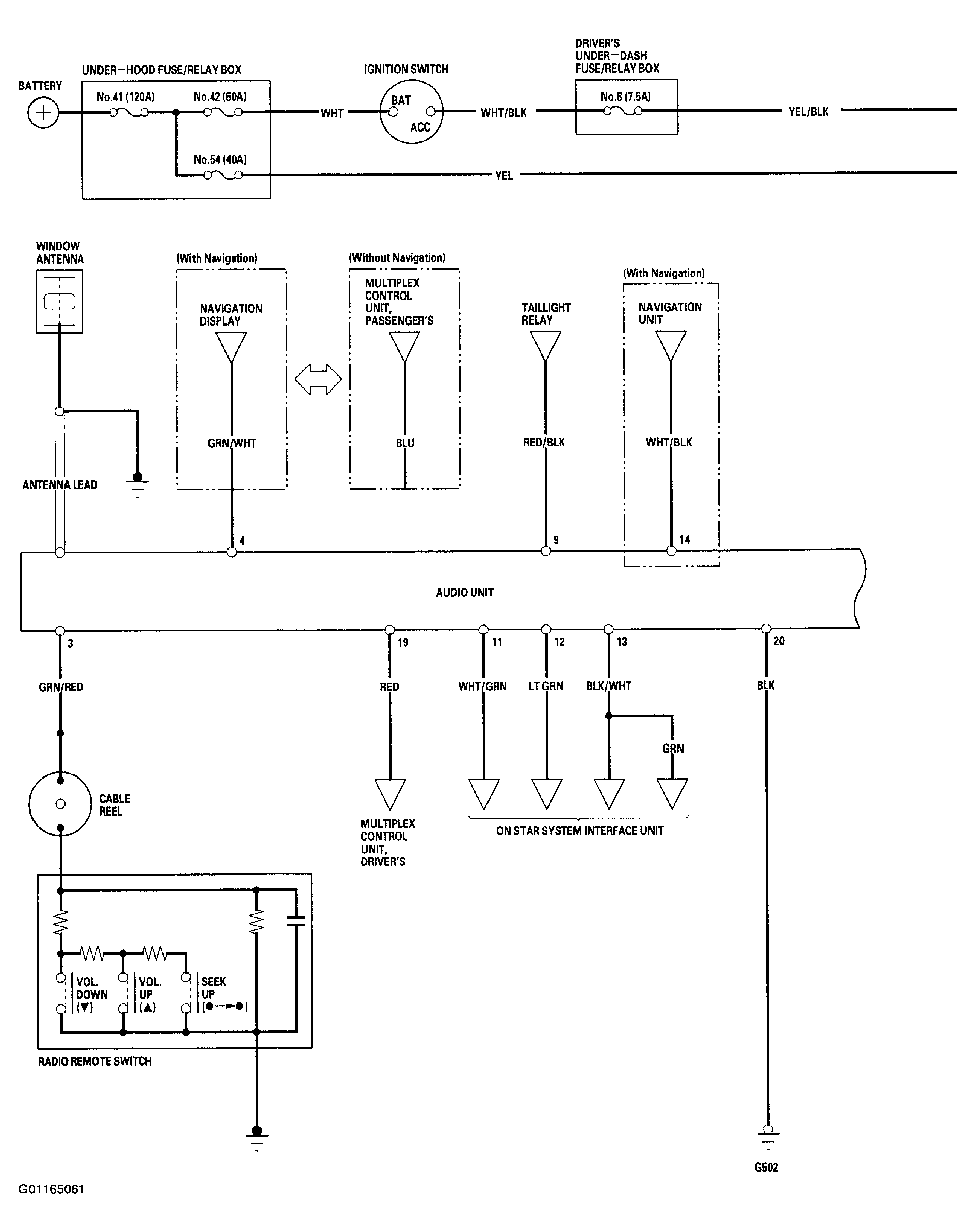

Fig 1: Stereo Sound System Wiring Diagram ('01-02 models - 1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

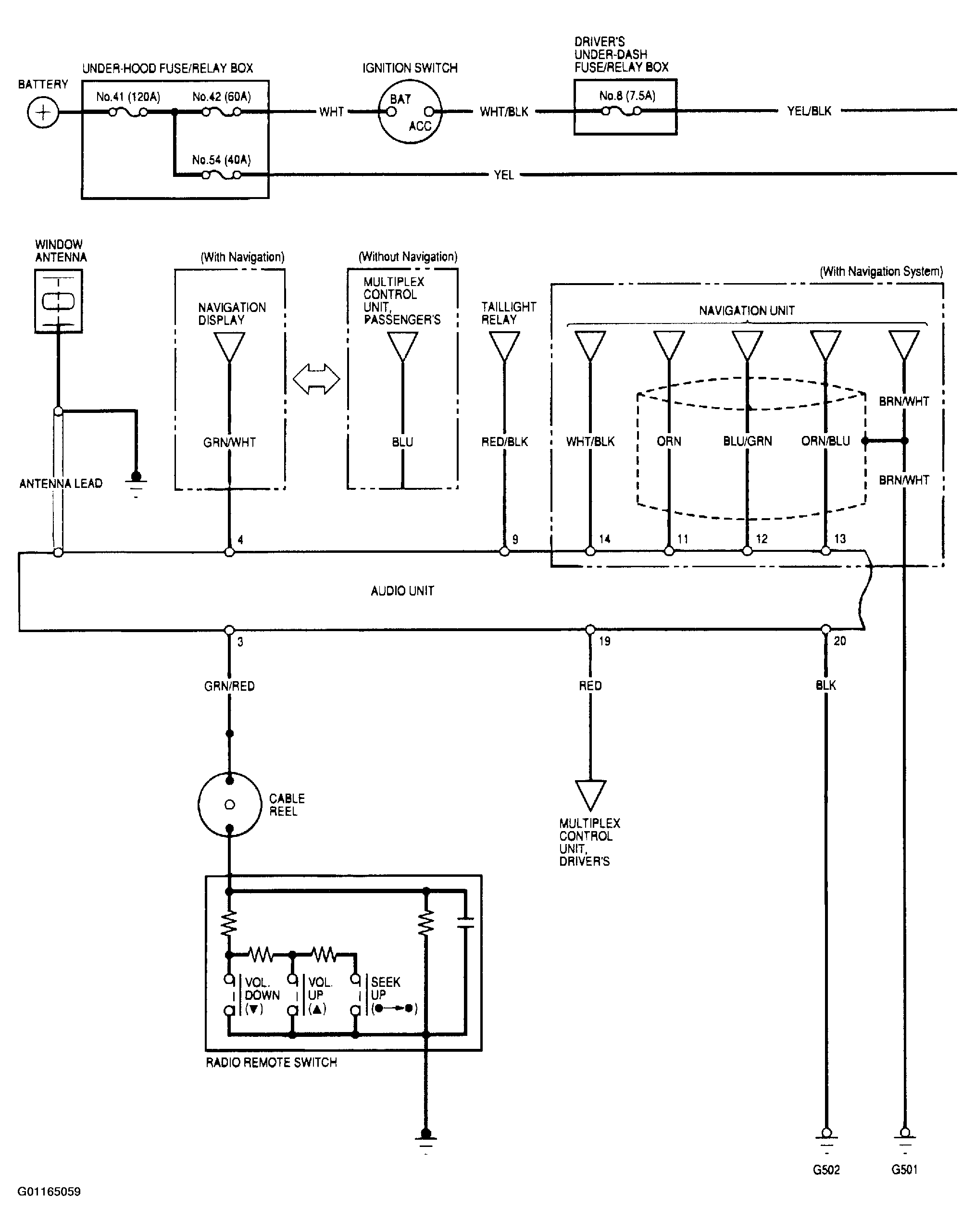

Fig 2: Stereo Sound System Wiring Diagram ('01-02 models - 2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

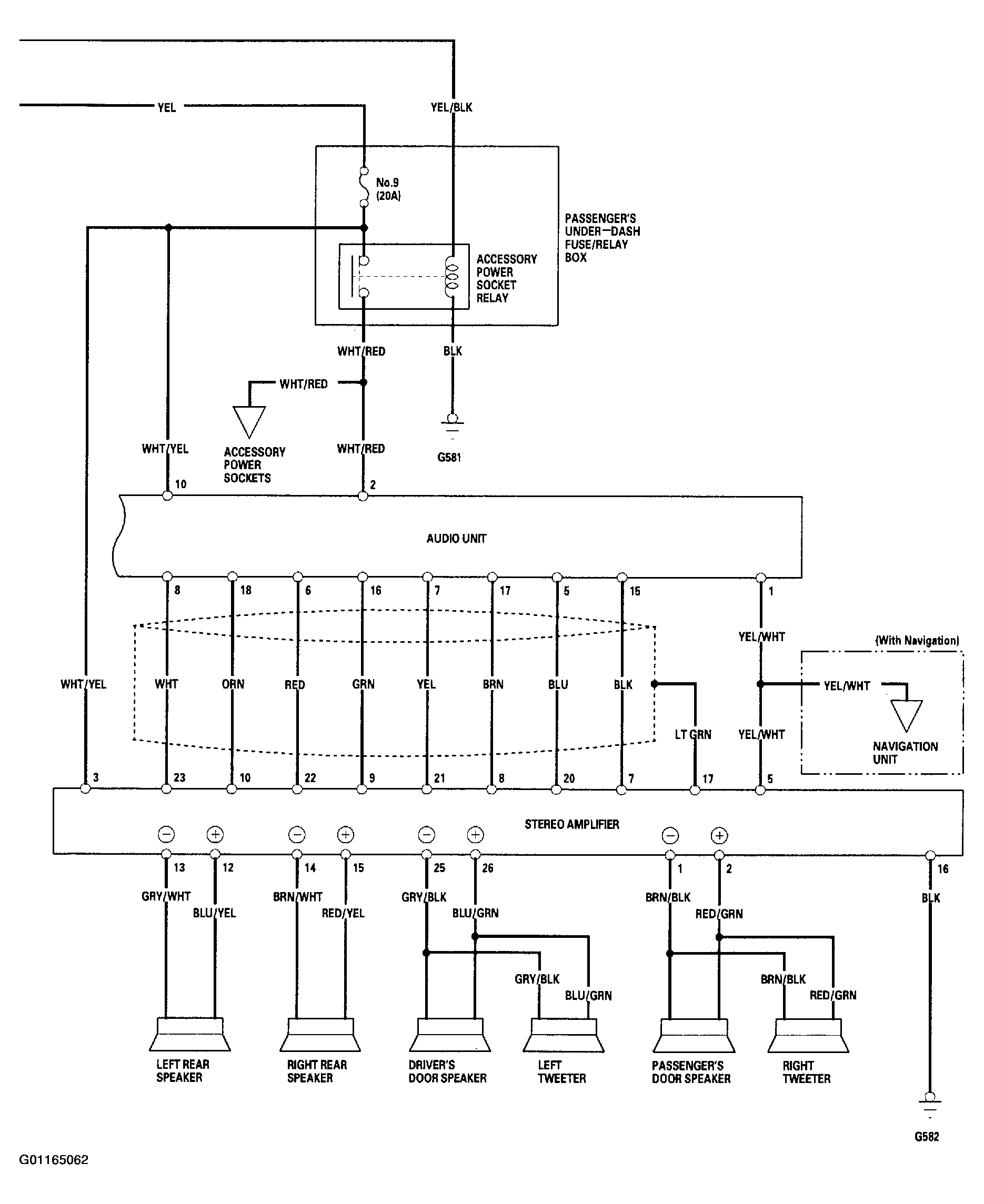

Fig 3: Stereo Sound System Wiring Diagram ('03 model - 1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

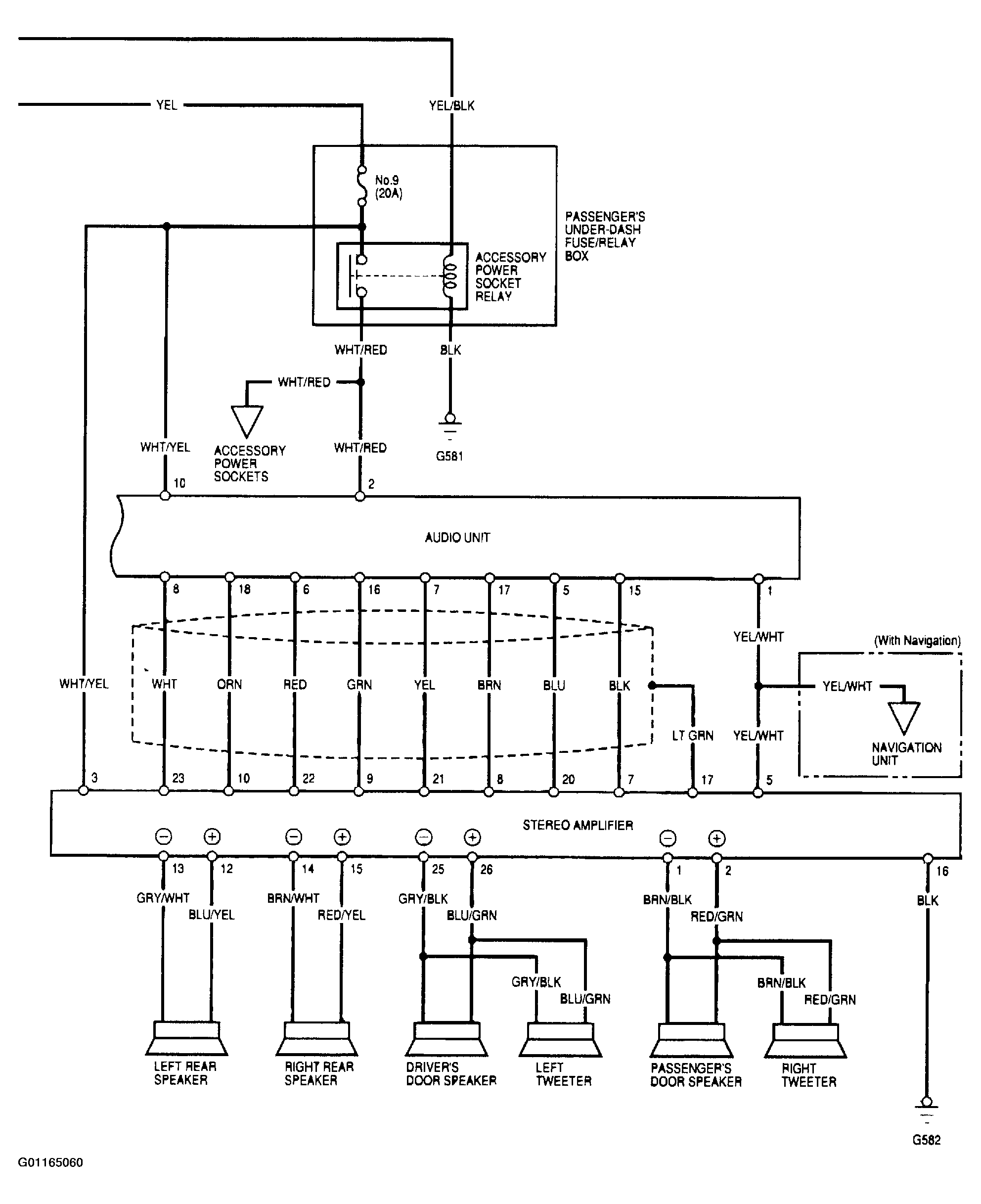

Fig 4: Stereo Sound System Wiring Diagram ('03 model - 2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
