'99 Model:

  1. Turn the ignition switch OFF.
  2. Slide the front cover (A) of navigation unit up.

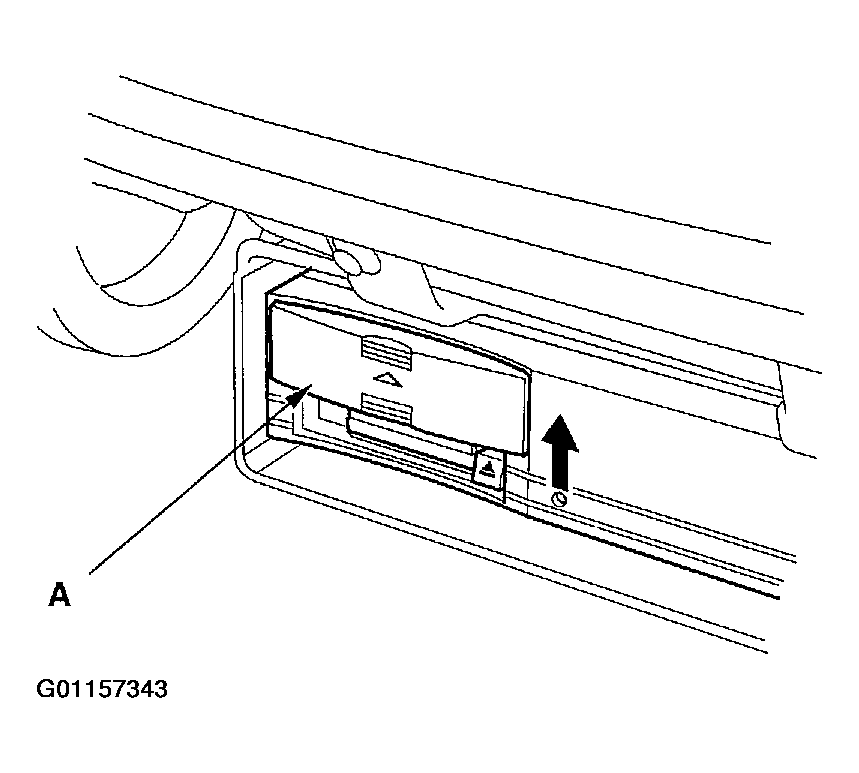

    Fig 1: Sliding Front Cover Up
    G01157343Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Press the EJECT (A) switch.
    NOTE: Make sure the ignition switch is OFF.
  4. Remove the hard disk(B).

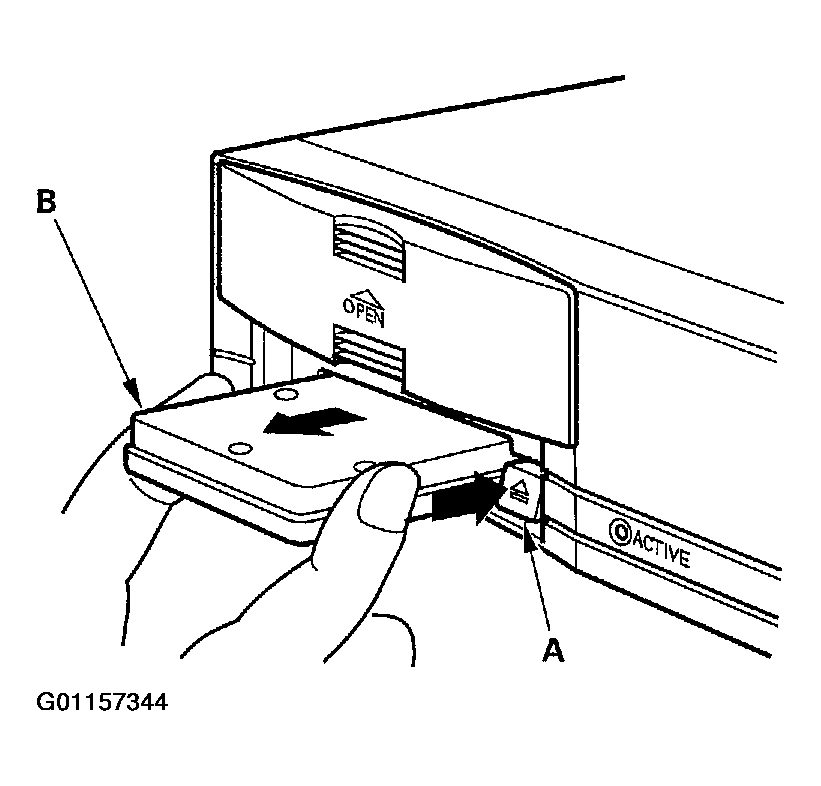

    Fig 2: Removing The Hard Disk
    G01157344Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Insert the new hard disk.
  6. Slide the front cover down.
    NOTE: After servicing, the front cover must be down. If you start up the navigation system with the front cover up, the display will indicate "NO Hard Disk".
