Driver's Window Motor Test ('01-02 models)

Motor Test:

1. Remove the driver's door panel .
2. Disconnect the 4P connector from the window motor.

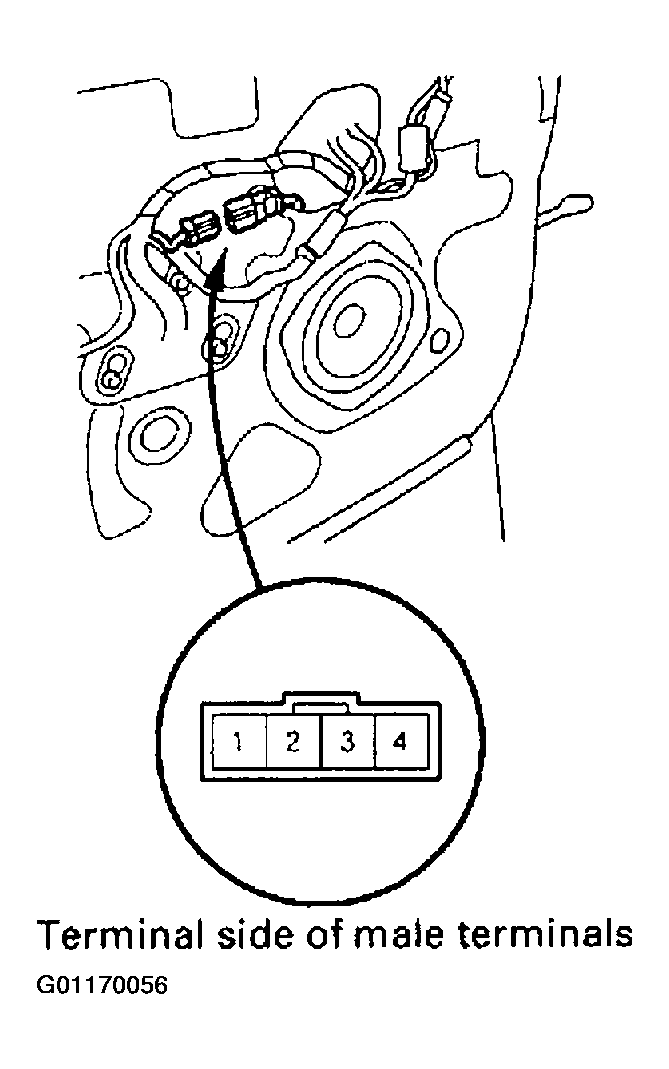

   Fig 1: Disconnecting The Connector From The Window Motor

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Test the motor in each direction by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.
   CAUTION: When the motor stops running, disconnect one lead immediately.

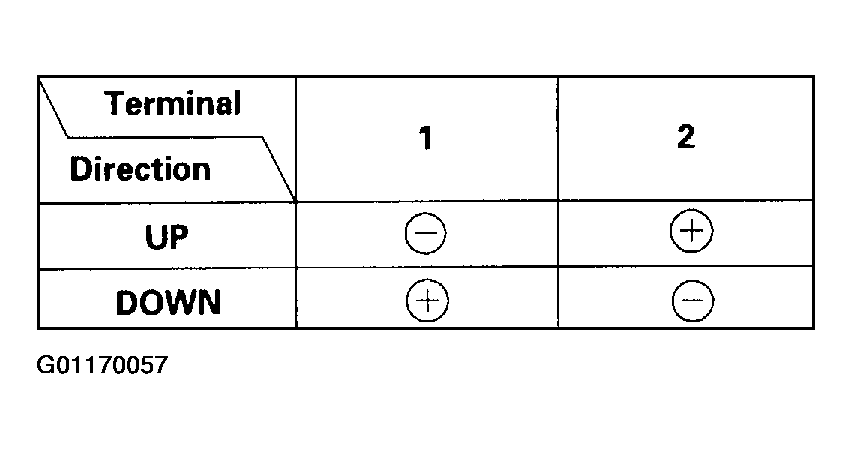

   Fig 2: Driver's Window Motor Test

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. If the motor does not run or fails to run smoothly, replace it.

   Pulser Test:

5. Connect the test leads of an analog ohmmeter to the No. 3 and No. 4 terminals.
6. Run the motor by connecting power and ground to the No. 1 and No. 2 terminals. The ohmmeter needle should move back and forth alternately. If the needle does not move back and forth, replace the motor.
