Fuse to Component Index

Under-hood Fuse/Relay Box

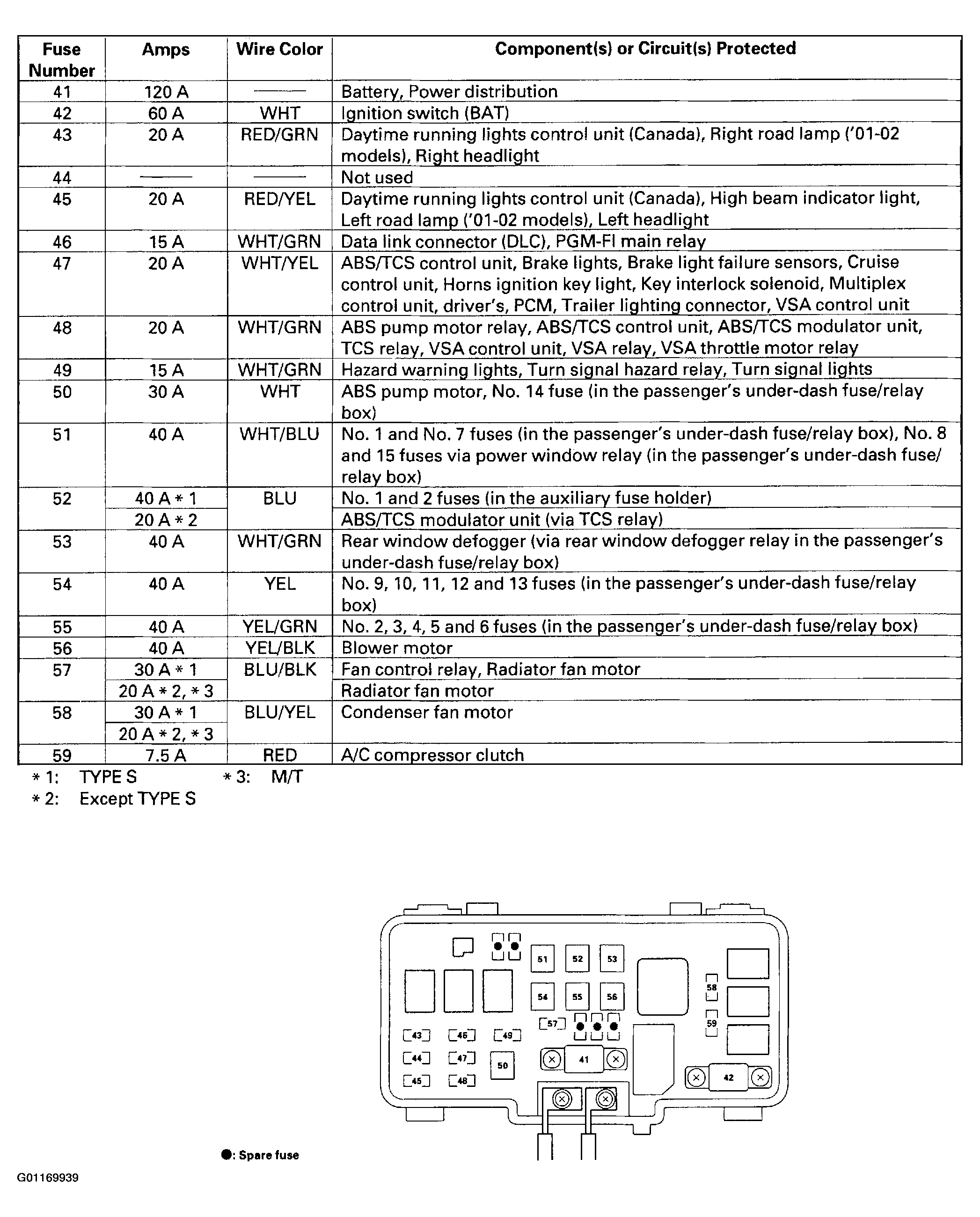

Fig 1: Under-Hood Fuse/Relay Box Fuse-To-Component Index

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Driver's Under-dash Fuse/Relay Box

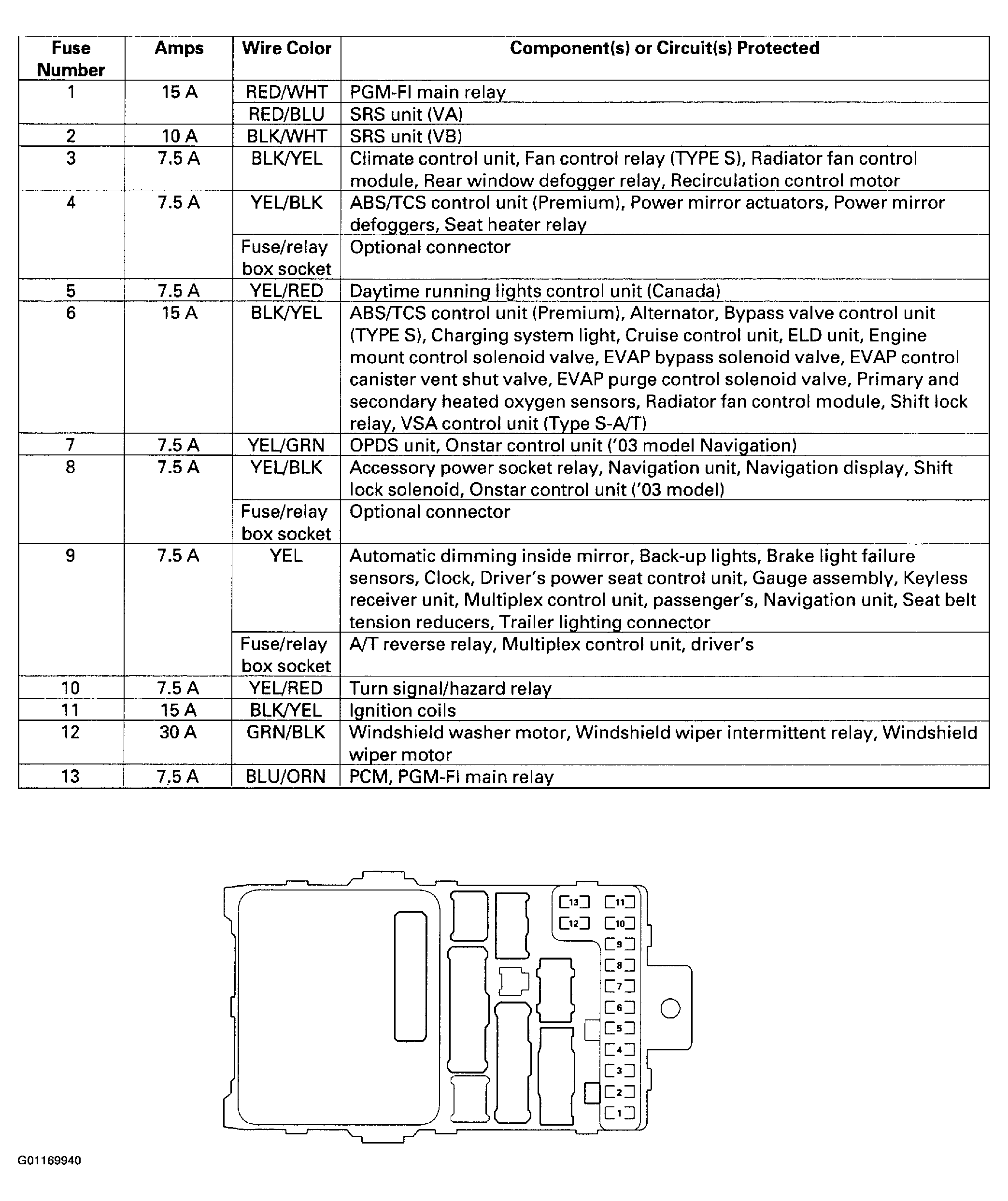

Fig 2: Driver's Under-dash Fuse/Relay Box Fuse-To-Component Index

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Passenger's Under-dash Fuse/Relay Box

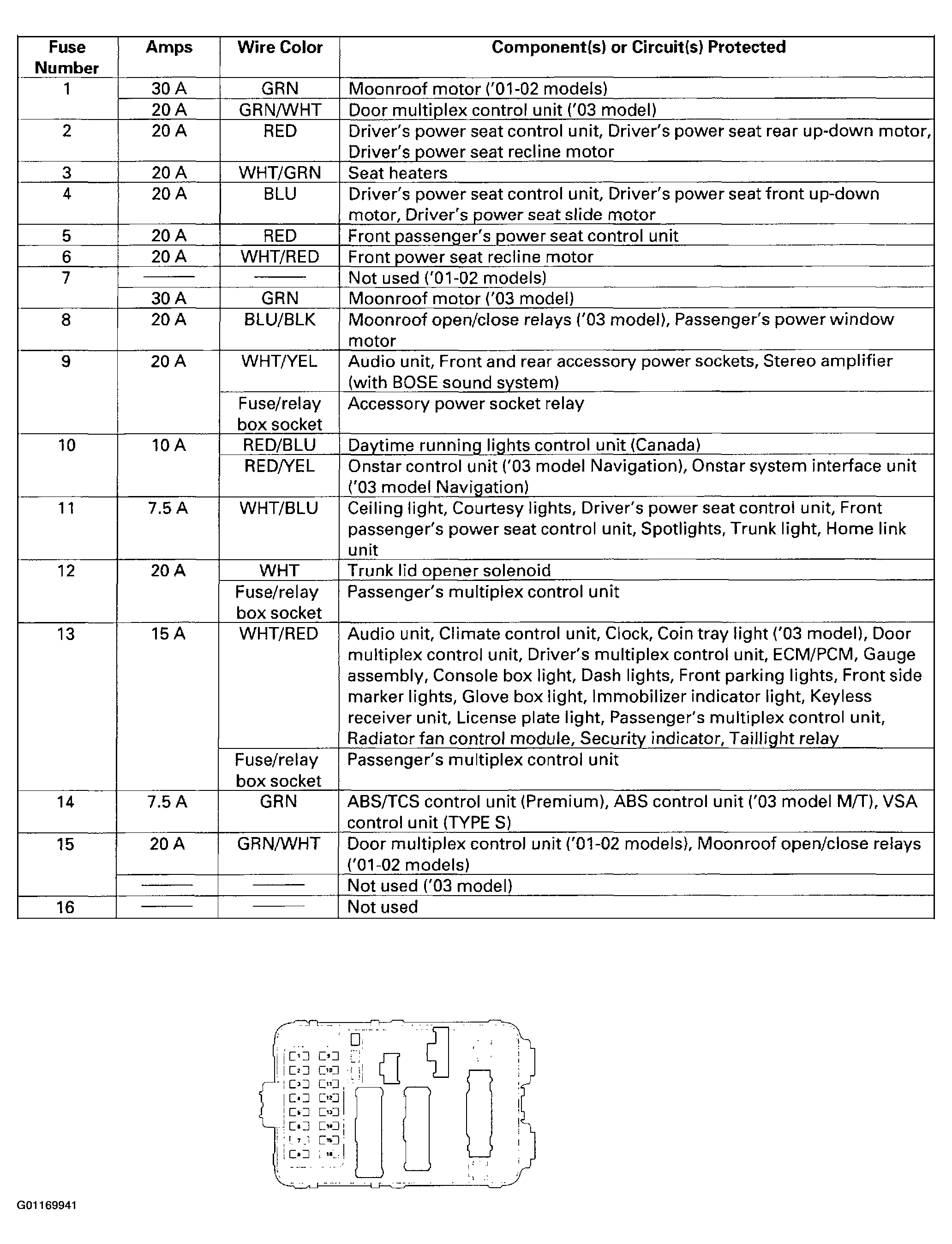

Fig 3: Passenger's Under-dash Fuse/Relay Box Fuse-To-Component Index

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Auxiliary Fuse Holder (Type S Except M/T)

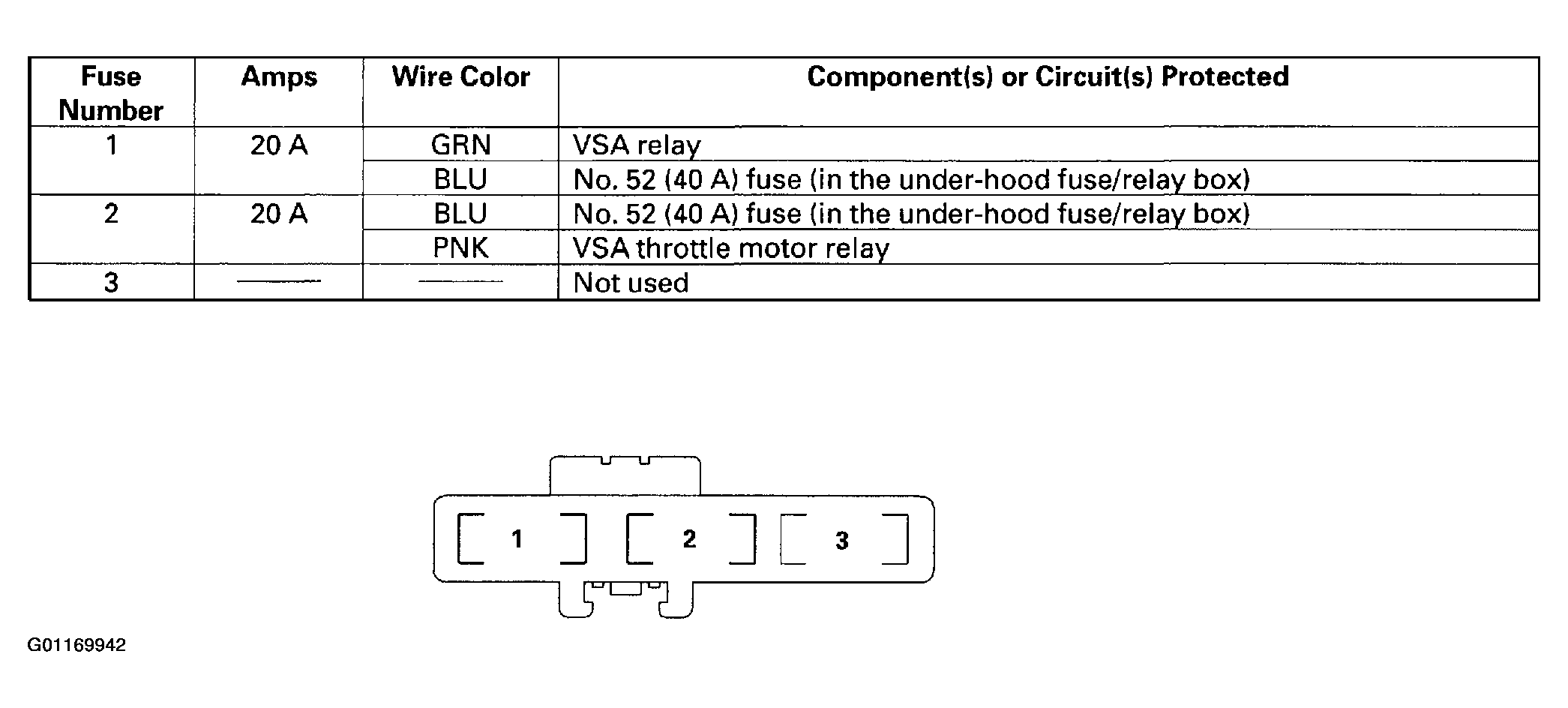

Fig 4: Auxiliary Fuse Holder Fuse-To-Component Index (Type S Except M/T)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
