DTC 26: Lateral Acceleration Sensor
WARNING:
This page is about a different variant/trim than selected.
For DTC testing chart, see
Fig 1
and
Fig 2
.

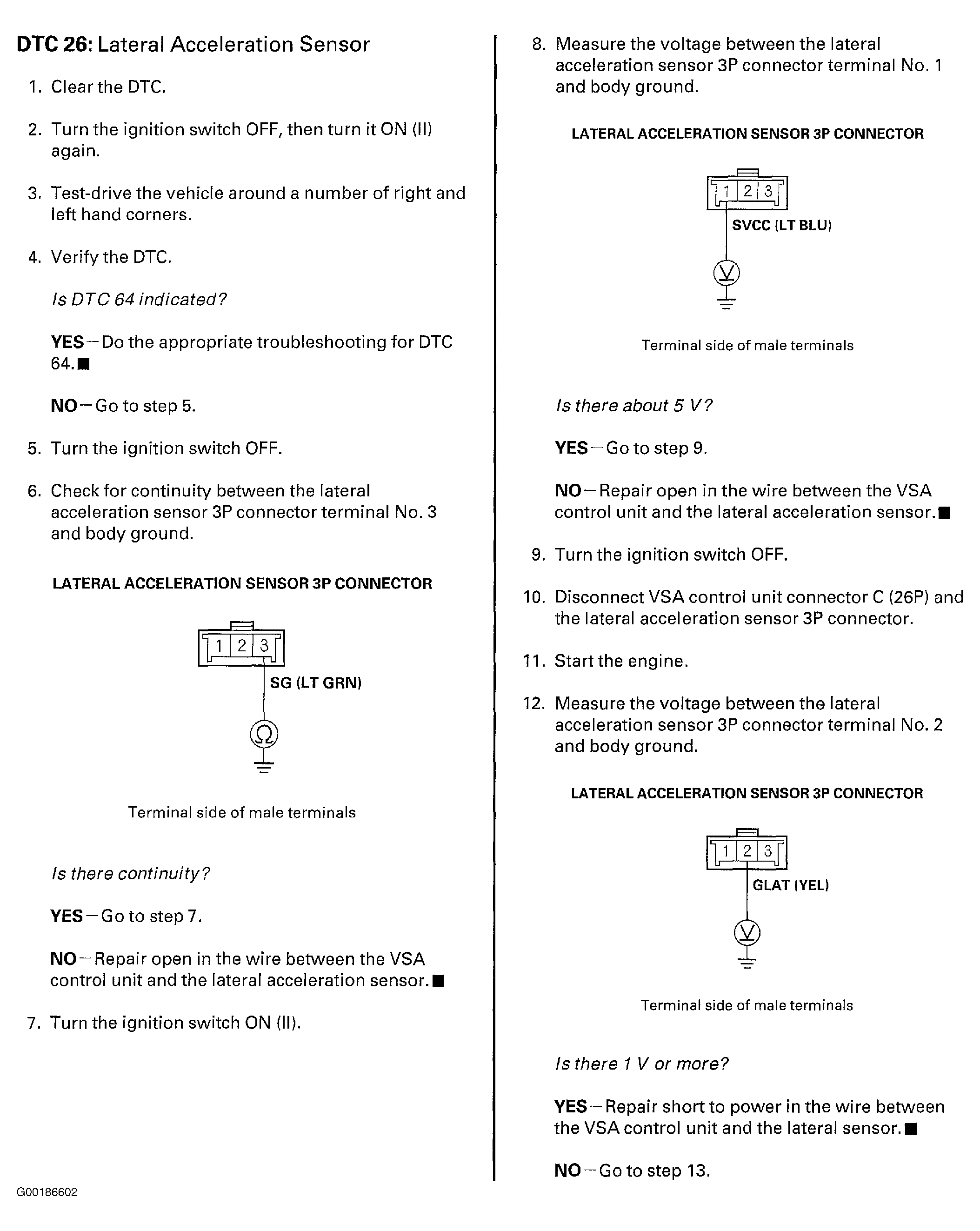

Fig 1: DTC 26: Lateral Acceleration Sensor Trouble Shooting Chart (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

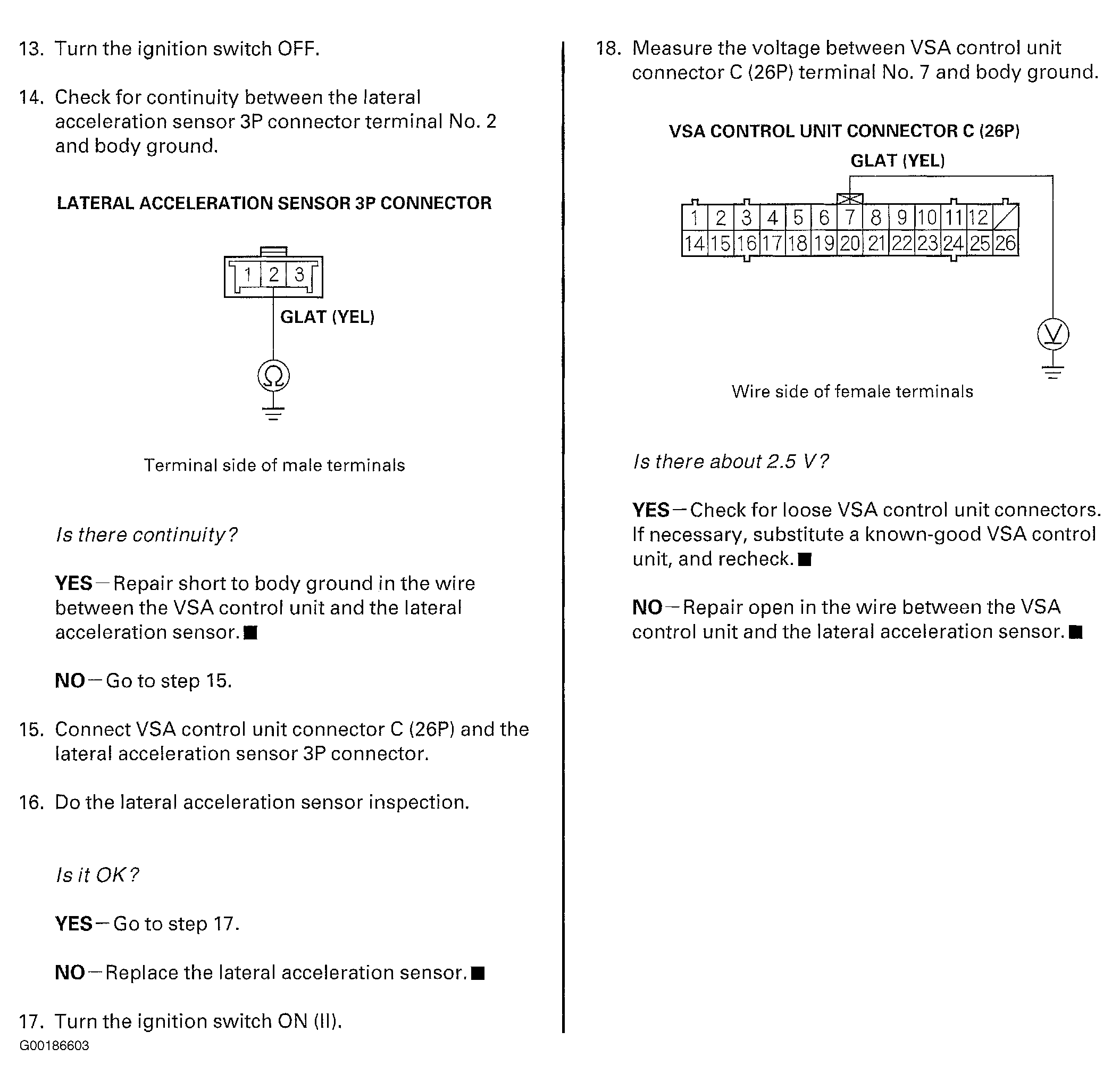

Fig 2: DTC 26: Lateral Acceleration Sensor Trouble Shooting Chart (2 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
