ABS/TCS Control Unit Replacement

ABS/TCS Control Unit Replacement
1. Remove the passenger's kick panel.

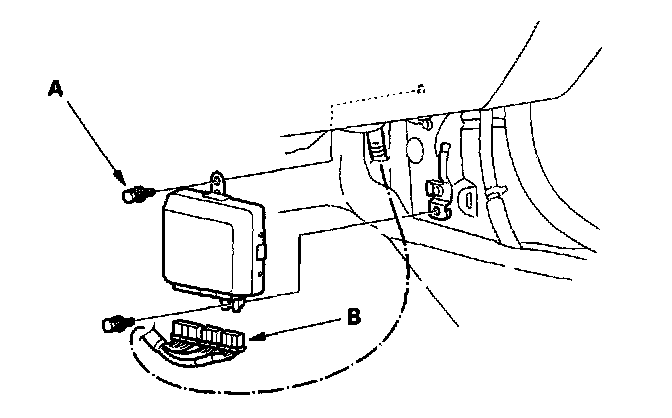

2. Remove the ABS/TCS control unit (A).
3. Disconnect the ABS/TCS control unit connectors (B).
4. Install the ABS/TCS control unit in the reverse order of removal.
