ABS System

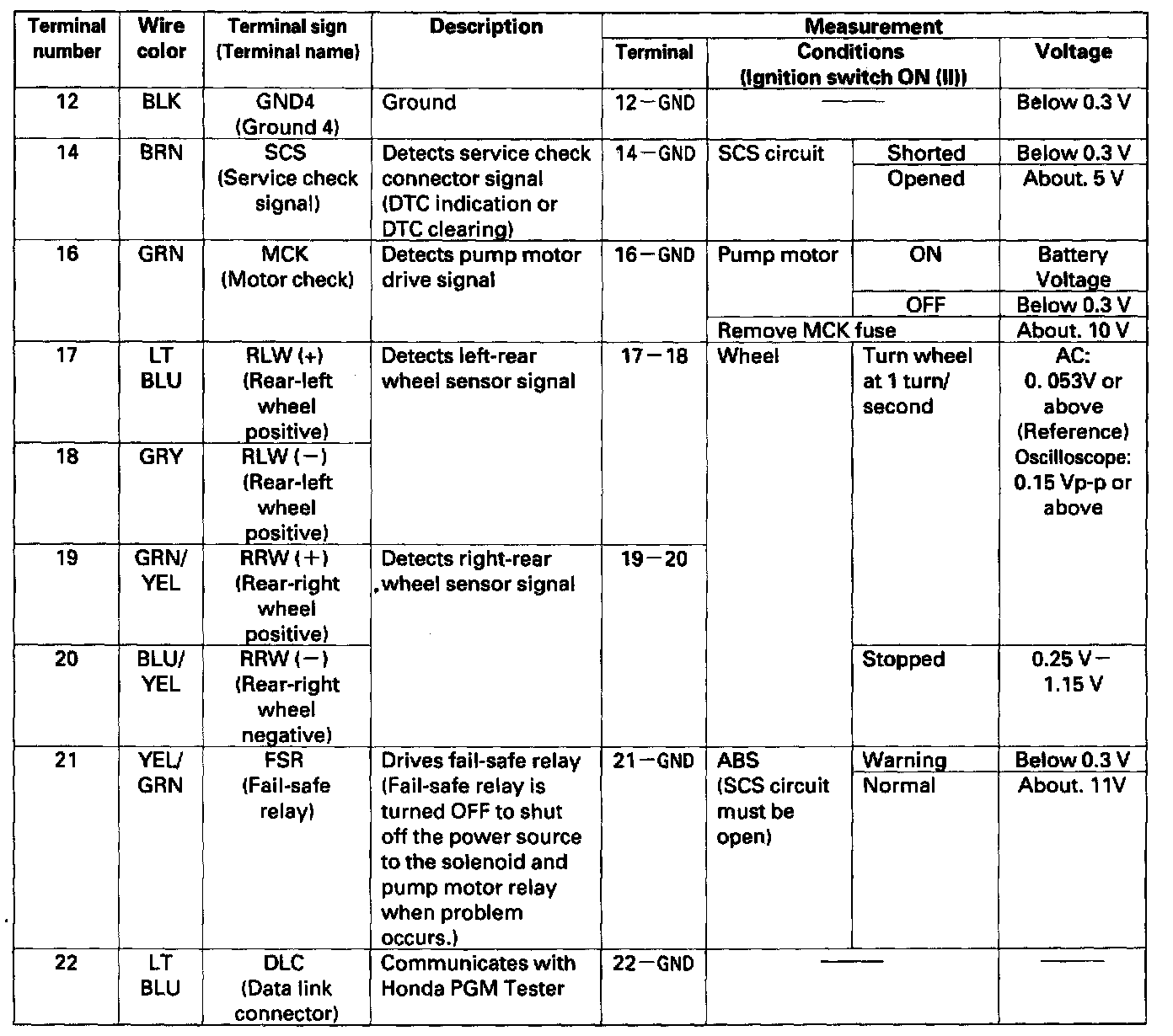

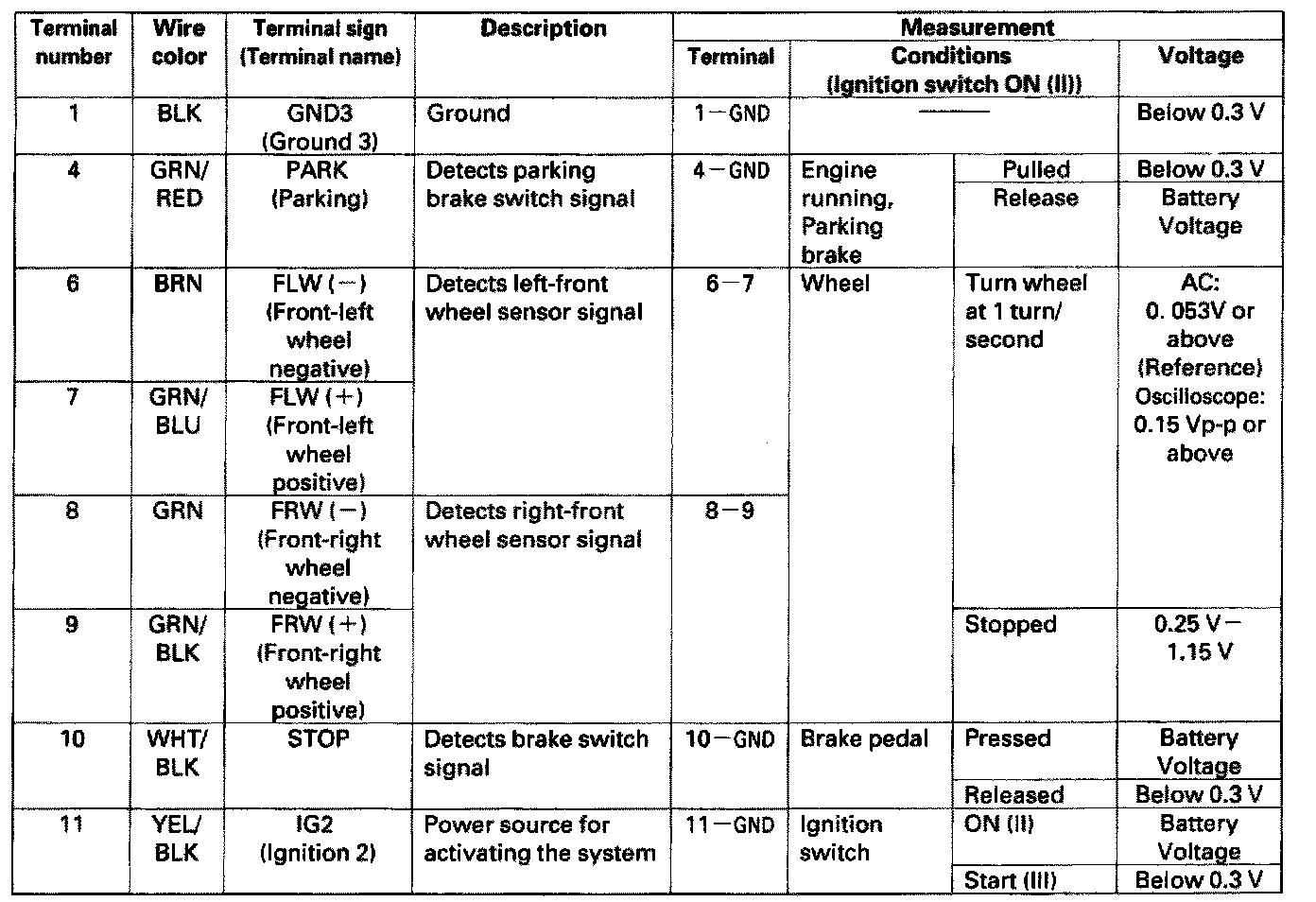

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:

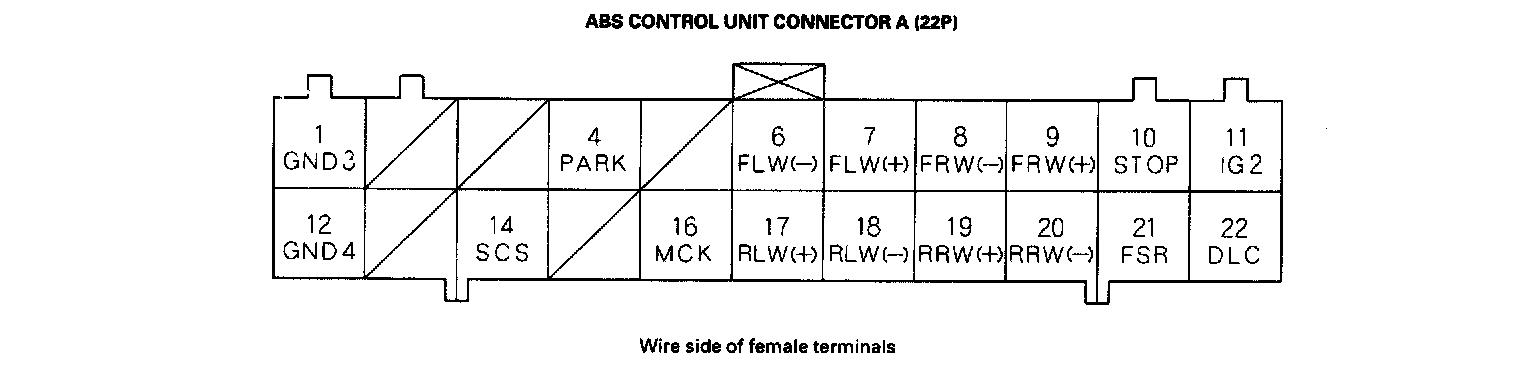

ABS Control Unit Inputs and Outputs for Connector A (22P)

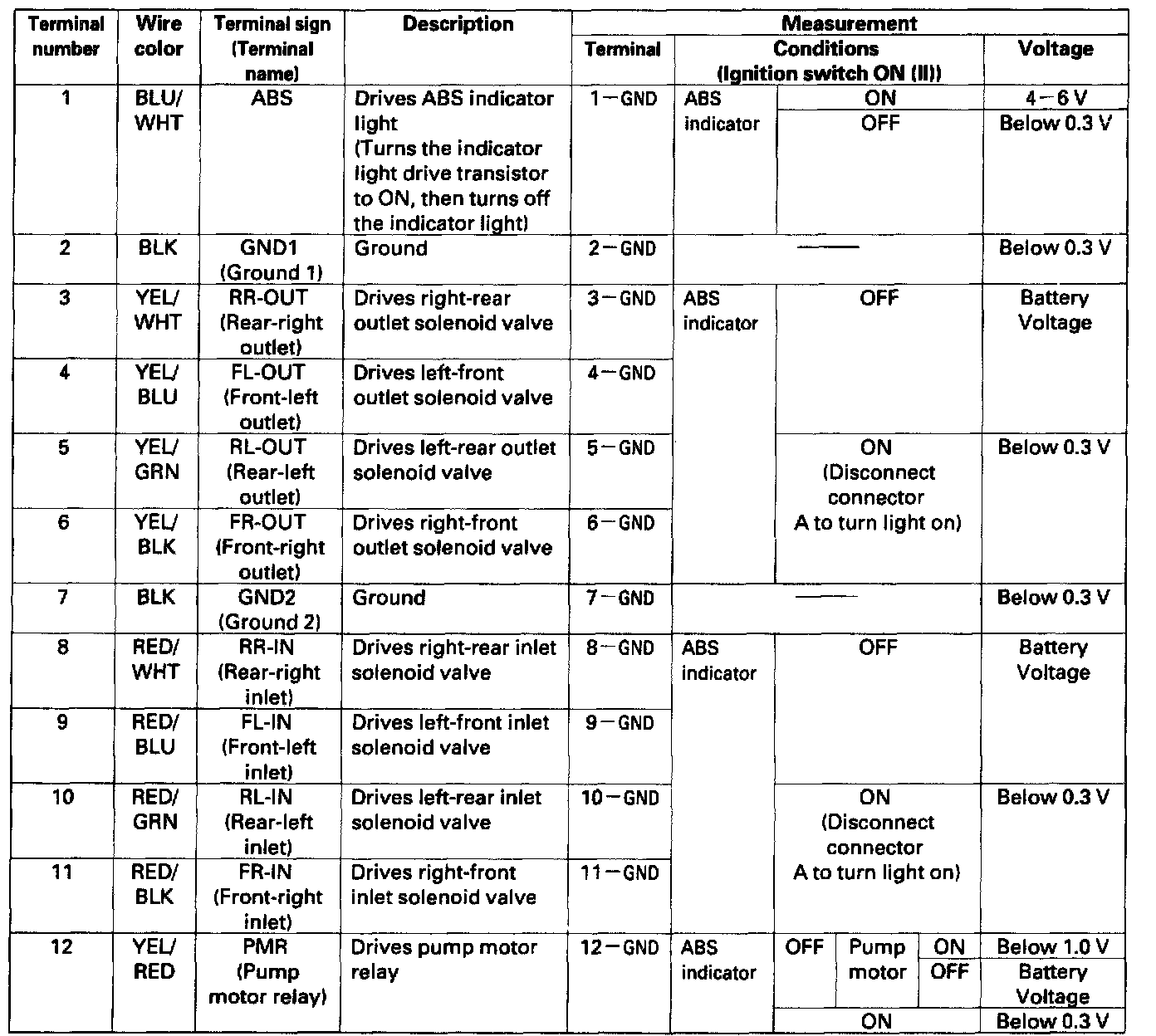

Part 1 Of 2:




Part 2 Of 2:

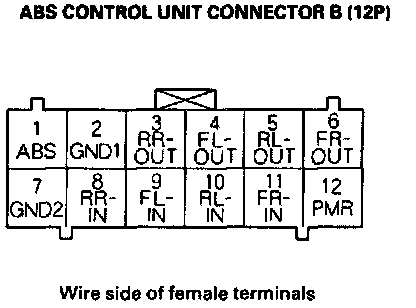

ABS Control Unit Inputs and Outputs for Connector B (12P)
