VSA System

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

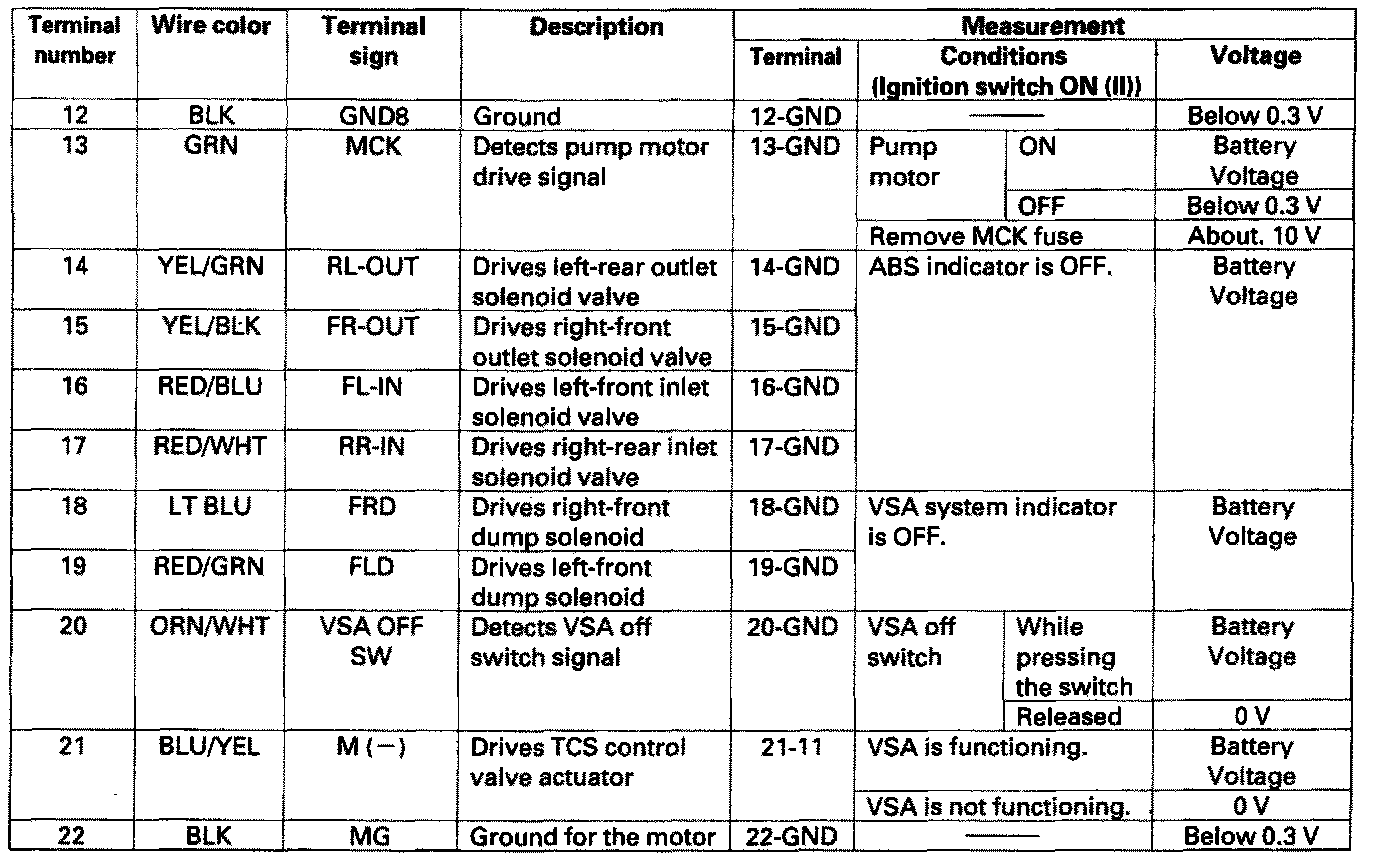

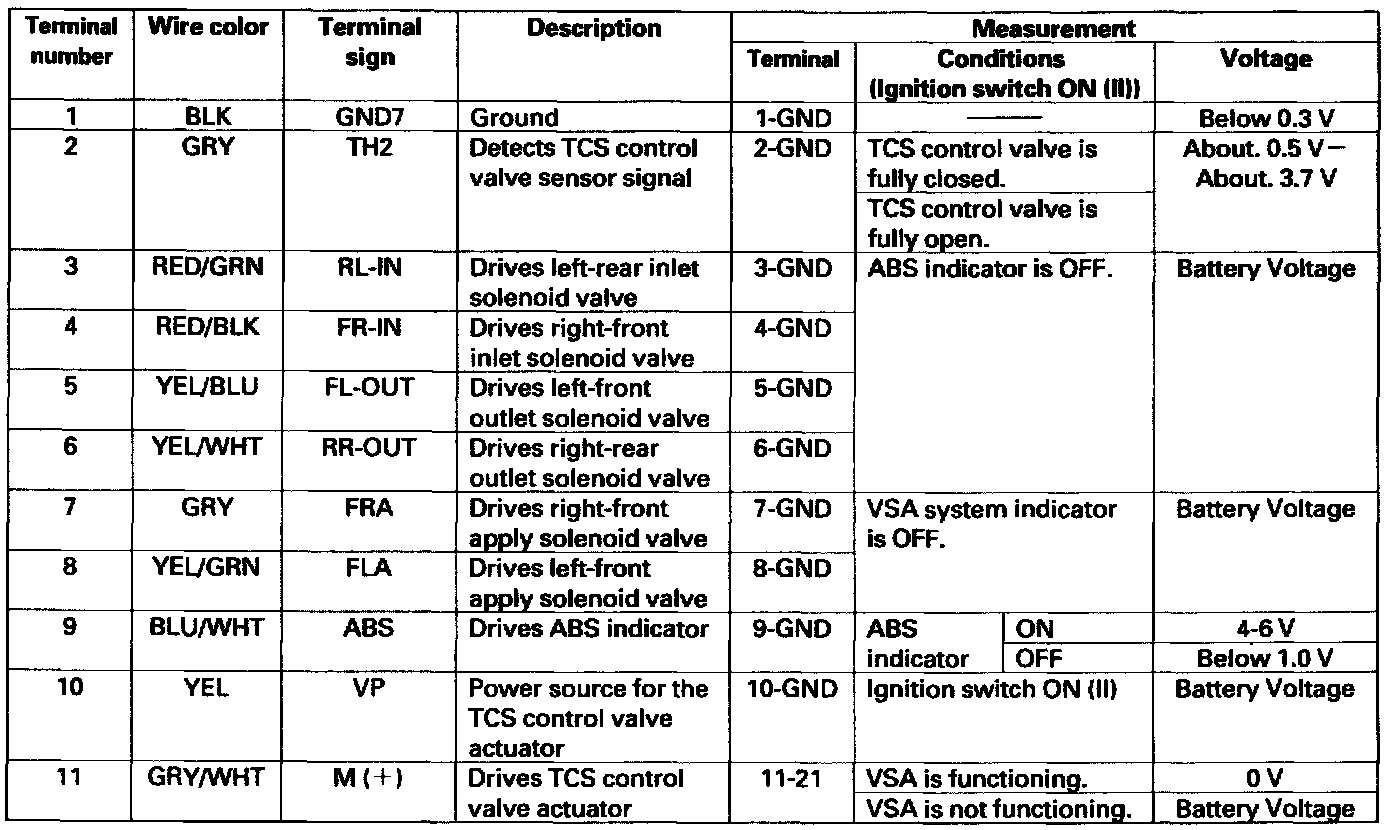

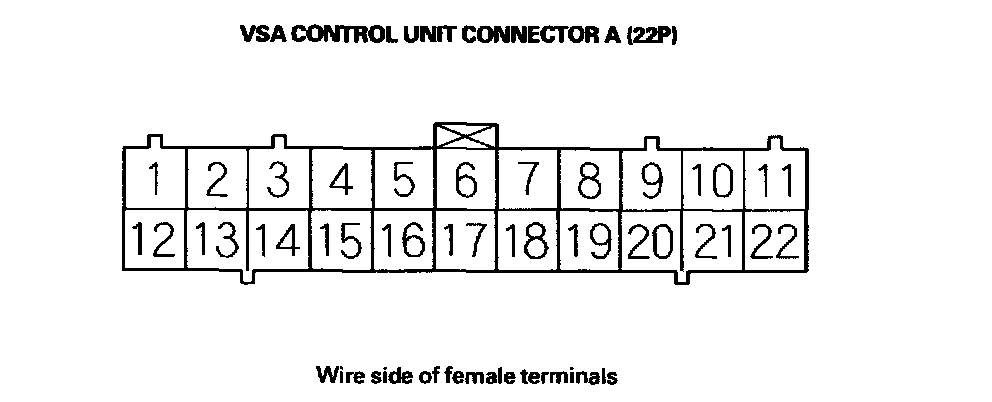

VSA Control Unit Inputs and Outputs for Connector A (22P)

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

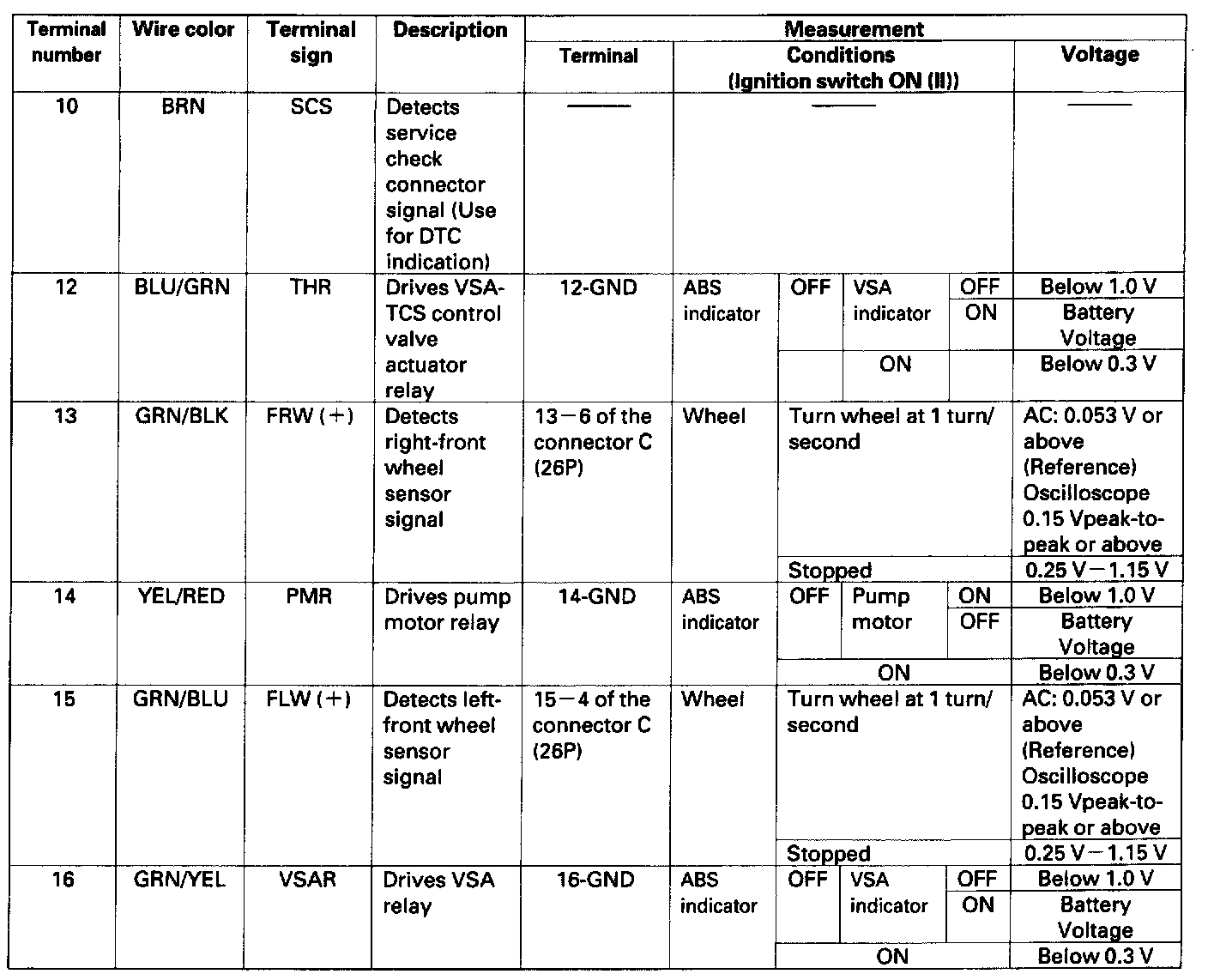

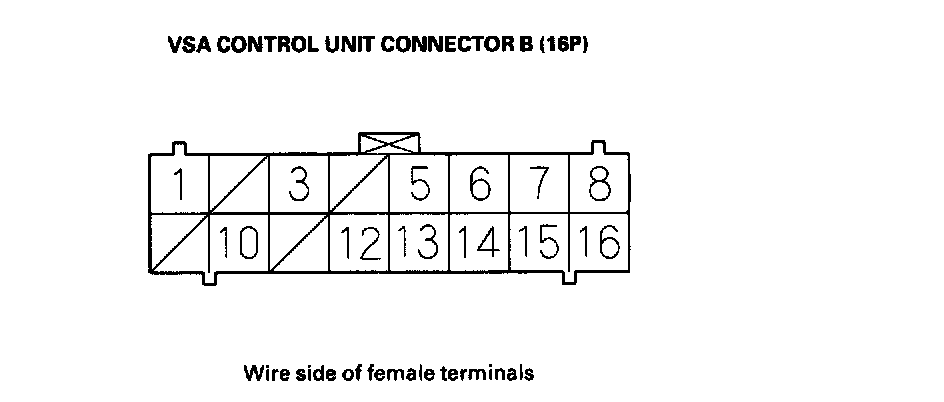

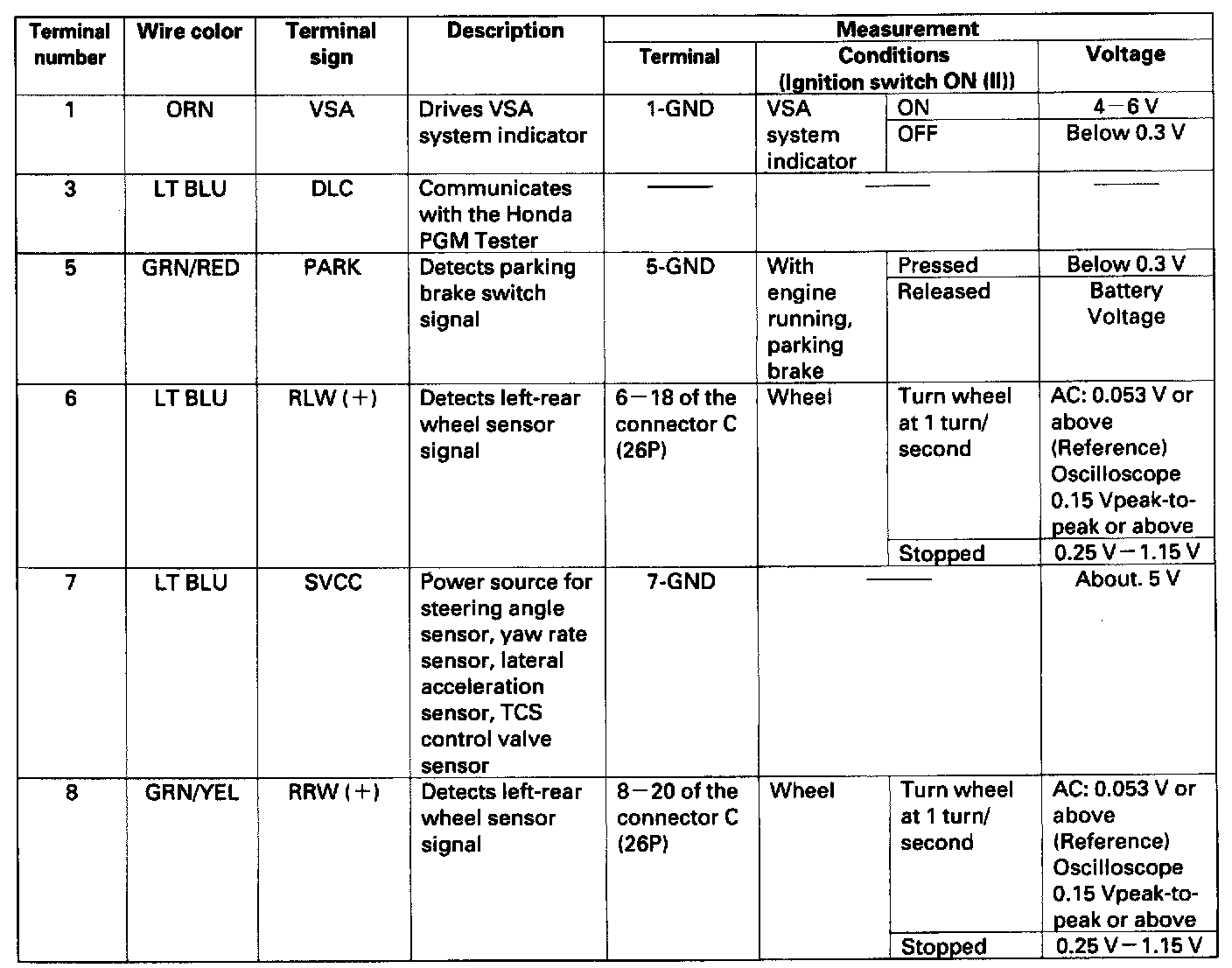

VSA Control Unit Inputs and Outputs for Connector B (16P)

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

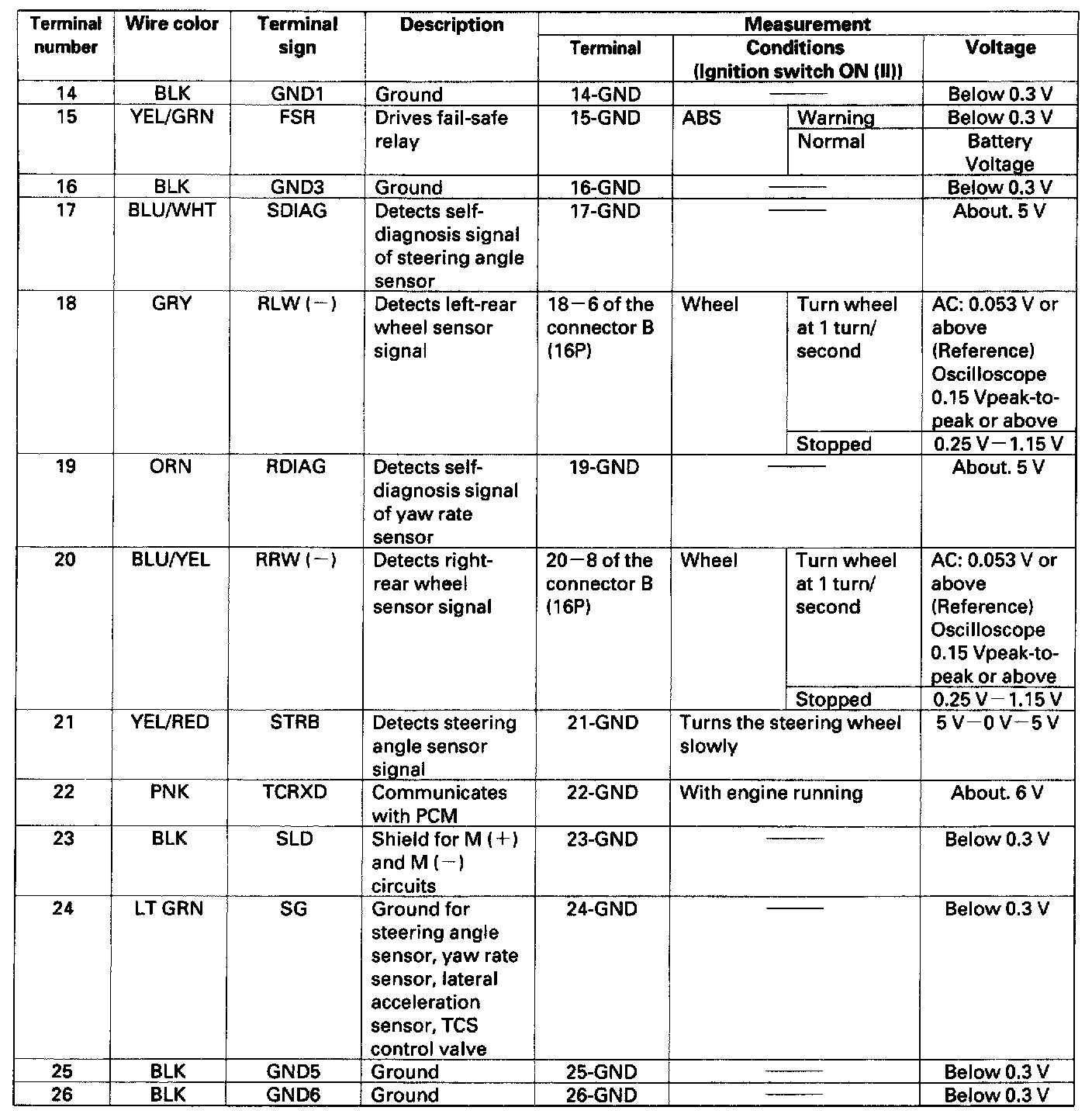

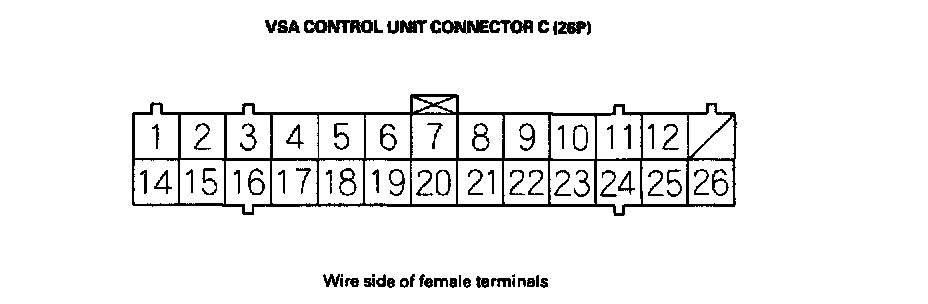

VSA Control Unit Inputs and Outputs for Connector C (26P)

Outline
This system consists of the VSA control unit, the modulator unit, four wheel sensors, the TCS control valve assembly (the TCS control valve actuator (sub throttle motor) and the TCS control valve sensor), the steering angle sensor, the yaw rate sensor, the lateral acceleration sensor, and the PCM. The system integrates the ABS (Anti-lock Brake System), the VSA (Vehicle Stability Assist) system, and the TCS (Traction Control System). The TCS includes brake TCS, engine TCS, and throttle TCS.
