Cruise Control Master Switch Test/Replacement

Main Switch Test/Replacement

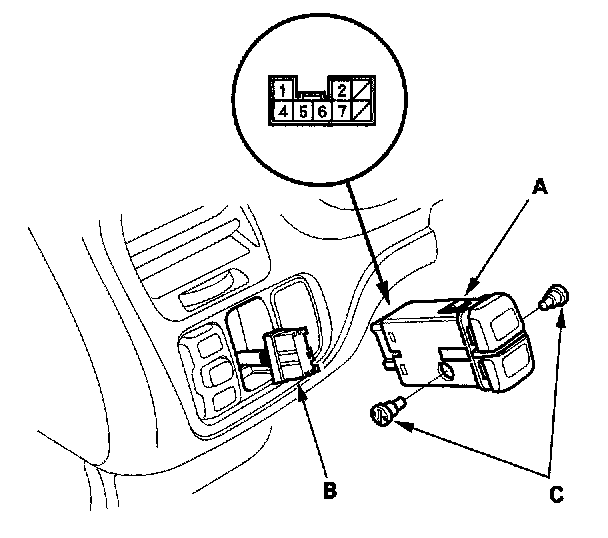

1. Carefully pry the switch (A) out of the instrument panel.
2. Disconnect the 8P connector (B) from the switch.

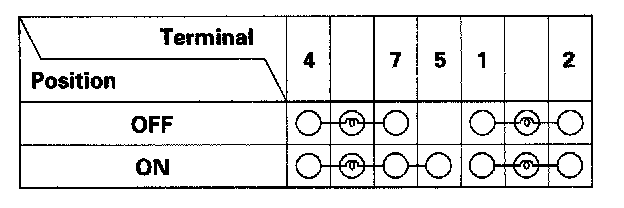

3. Check for continuity between the terminals in each switch position according to the table. If there is no continuity, replace the bulbs (C) or the switch.
