Crankshaft Position Sensor: Service and Repair

CKP Sensor B Replacement

M/T Model

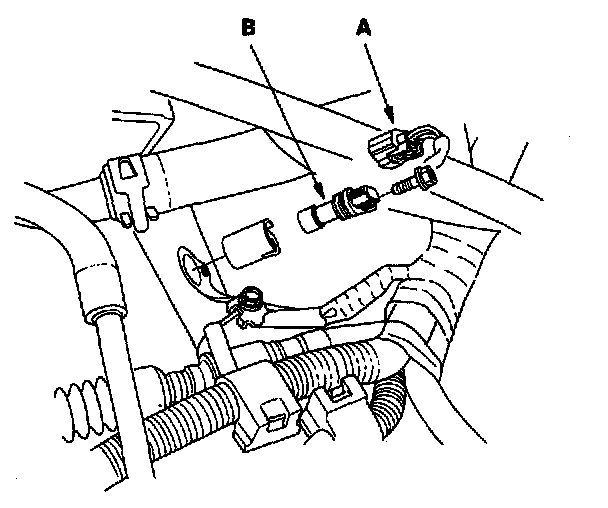

1. Disconnect the CKP sensor B 3P connector (A).
2. Remove the bolt. then remove the CKP sensor B (A).
3. Install the sensor in the reverse order of removal.
