Radiator Cooling Fan Control Module: Locations

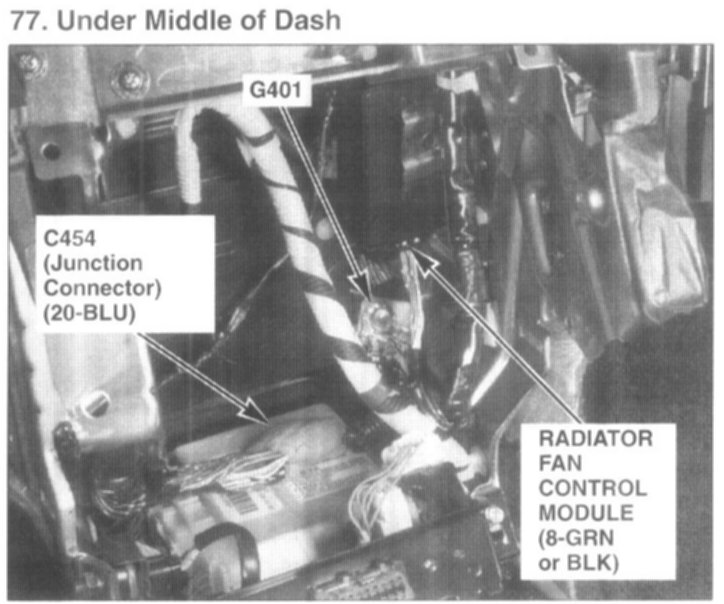

77. Under Middle of Dash:



Relay And Control Unit Locations - Dashboard:
