Passenger's Window Switch Test/Replacement

Passenger's Window Switch Test/Replacement

1. Remove the passenger's door panel.

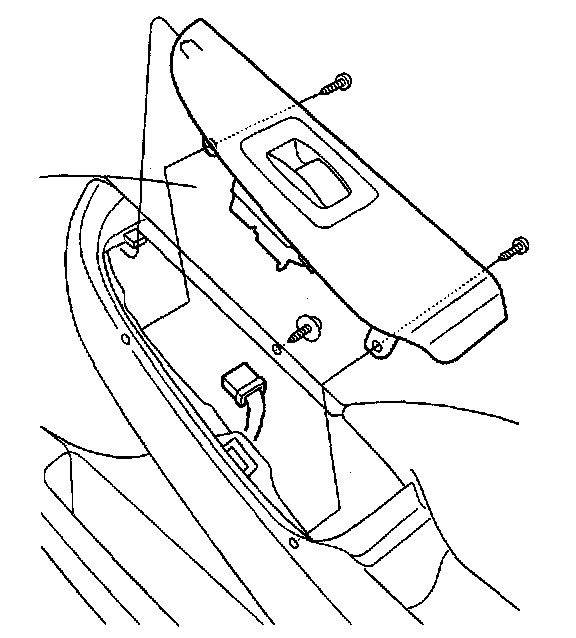

2. Remove the screws and passenger's switch assembly.

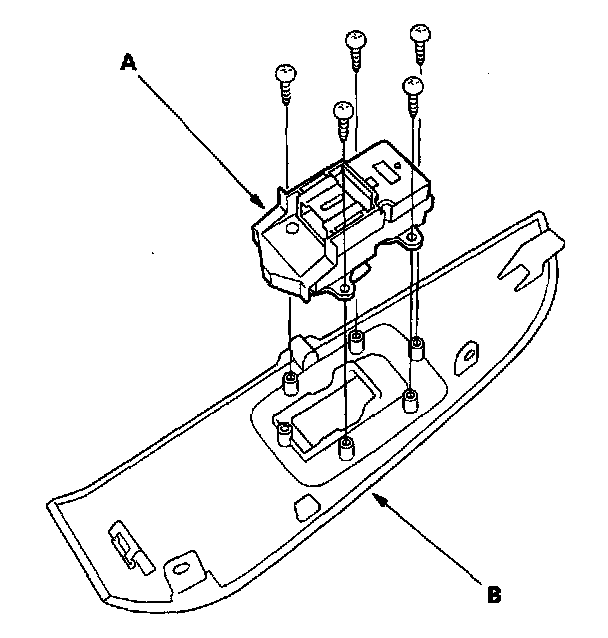

3. Remove the five mounting screws, then remove the passenger's switch (A) from the panel (B).

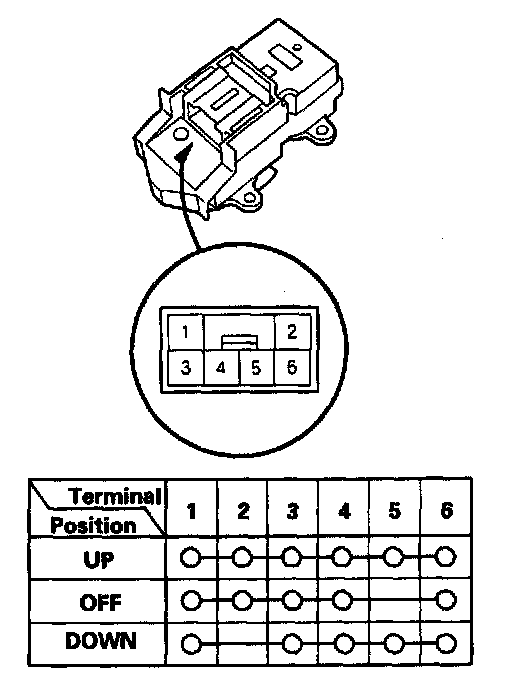

4. Check for continuity between the terminals in each switch position according to the table.
5. If the continuity is not as specified, replace the switch.
