PCM Inputs and Outputs

The PCM terminal voltage and measuring conditions for the A/T control system are shown. Other PCM terminal voltage and measuring conditions are described in FUEL & EMISSIONS SYSTEMS .

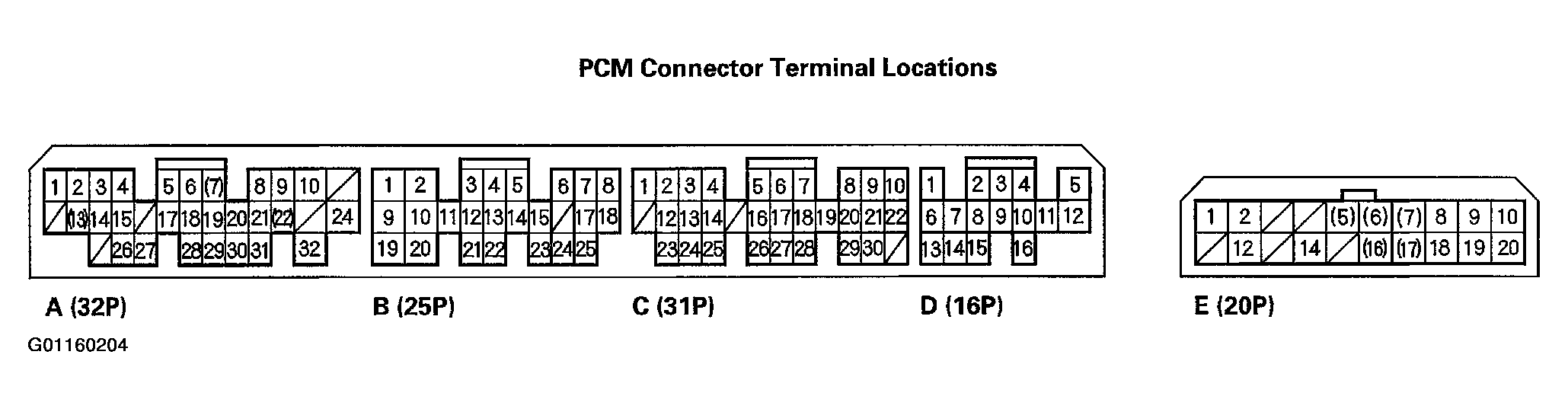

Fig 1: Identifying PCM Connector Terminal Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.

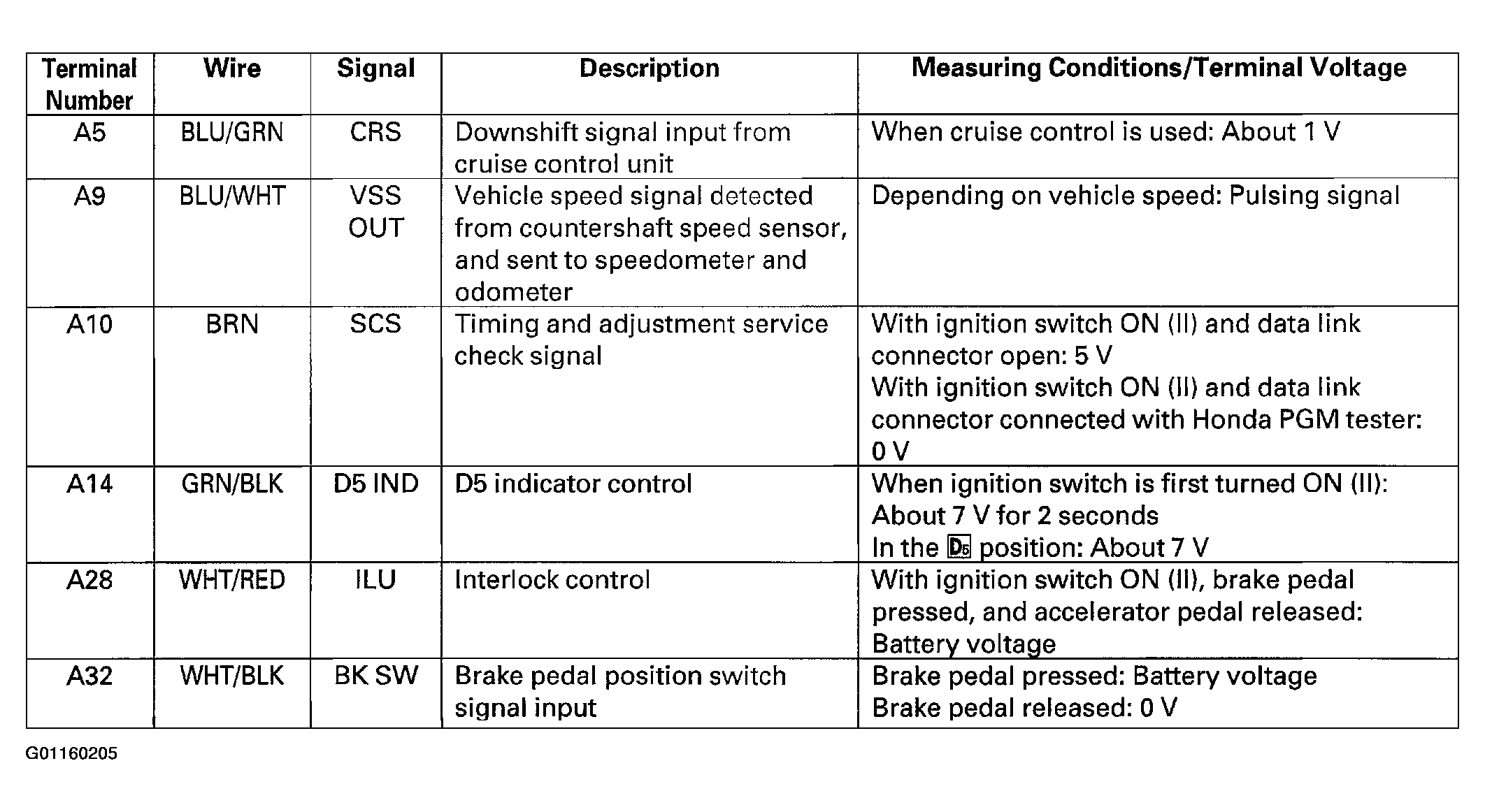

Fig 2: Identifying PCM Connector A (32P) Inputs & Outputs

Courtesy of AMERICAN HONDA MOTOR CO., INC.

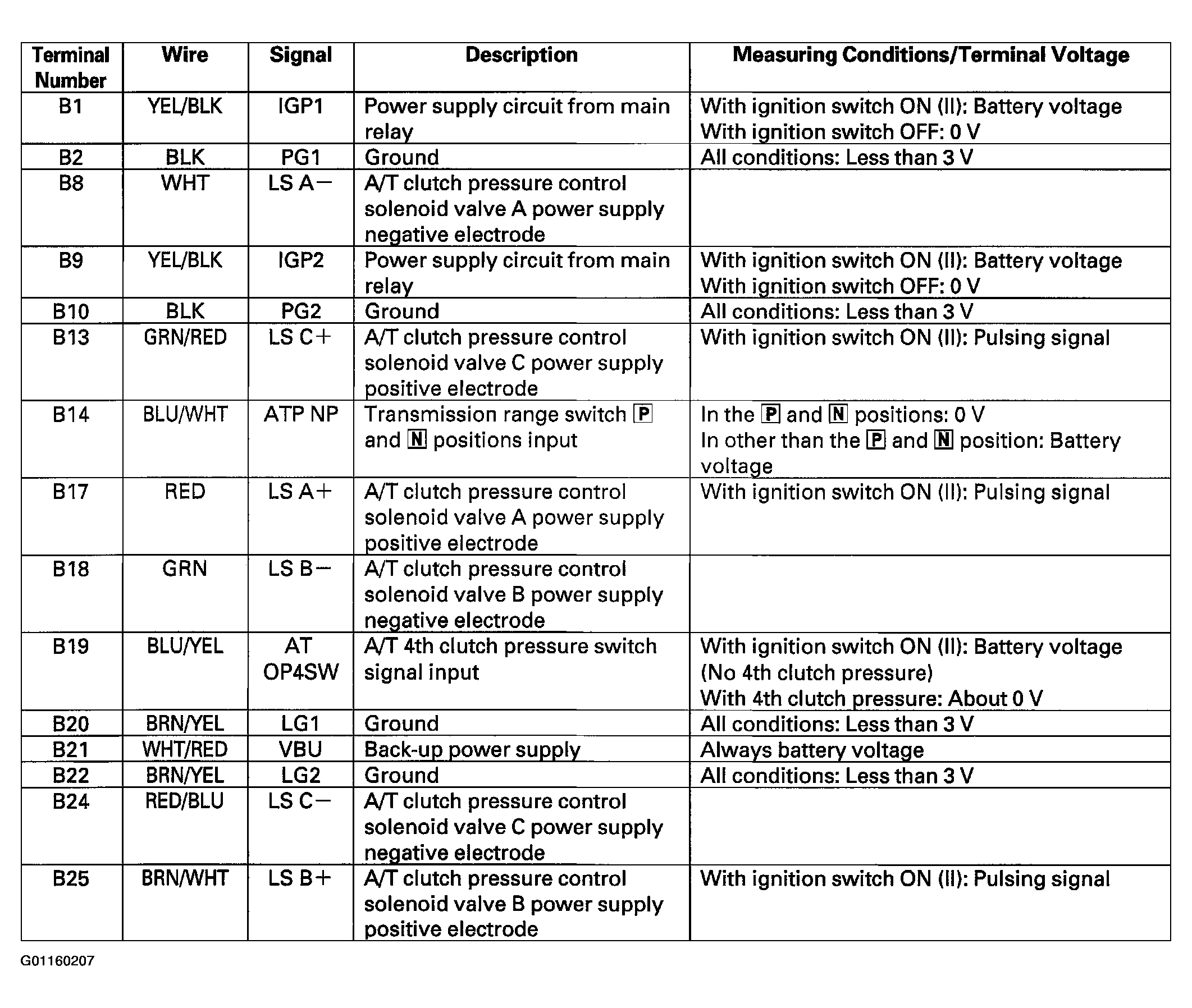

Fig 3: Identifying PCM Connector B (25P) Inputs & Outputs

Courtesy of AMERICAN HONDA MOTOR CO., INC.

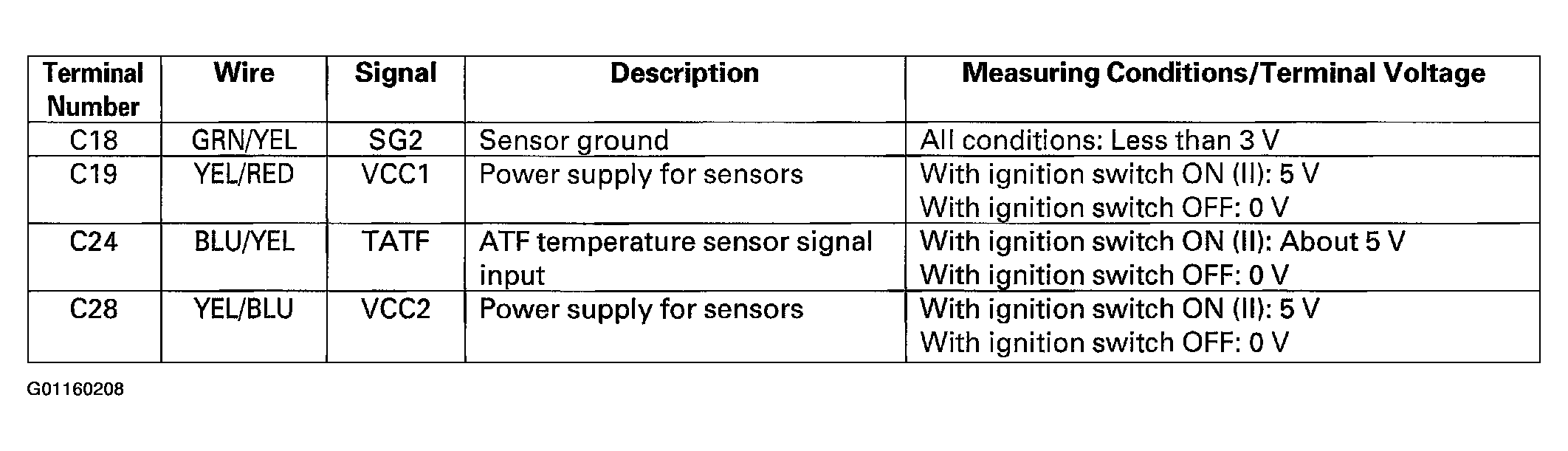

Fig 4: Identifying PCM Connector C (31P) Inputs & Outputs

Courtesy of AMERICAN HONDA MOTOR CO., INC.

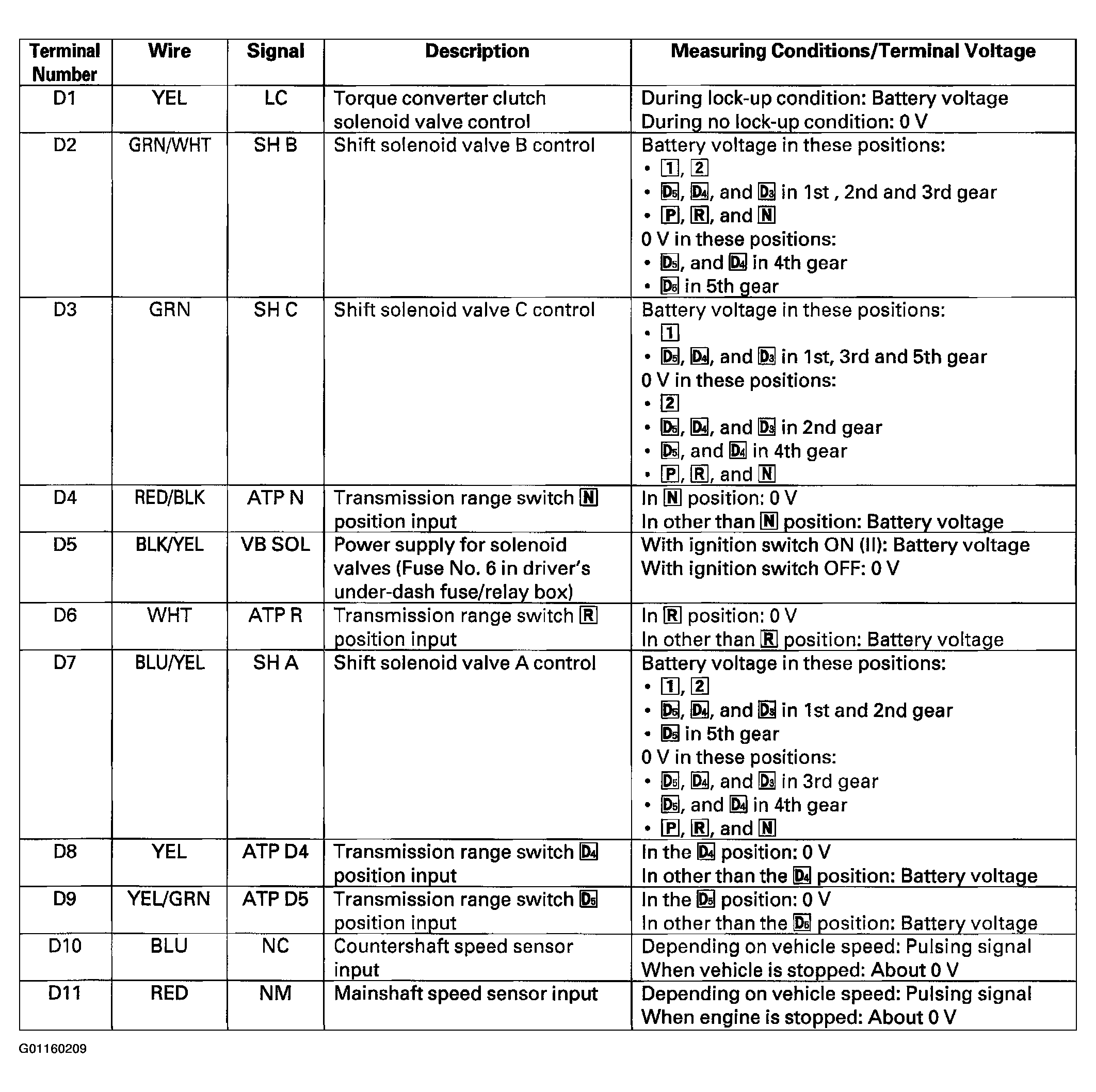

Fig 5: Identifying PCM Connector D (16P - 1 Of 2) Inputs & Outputs

Courtesy of AMERICAN HONDA MOTOR CO., INC.

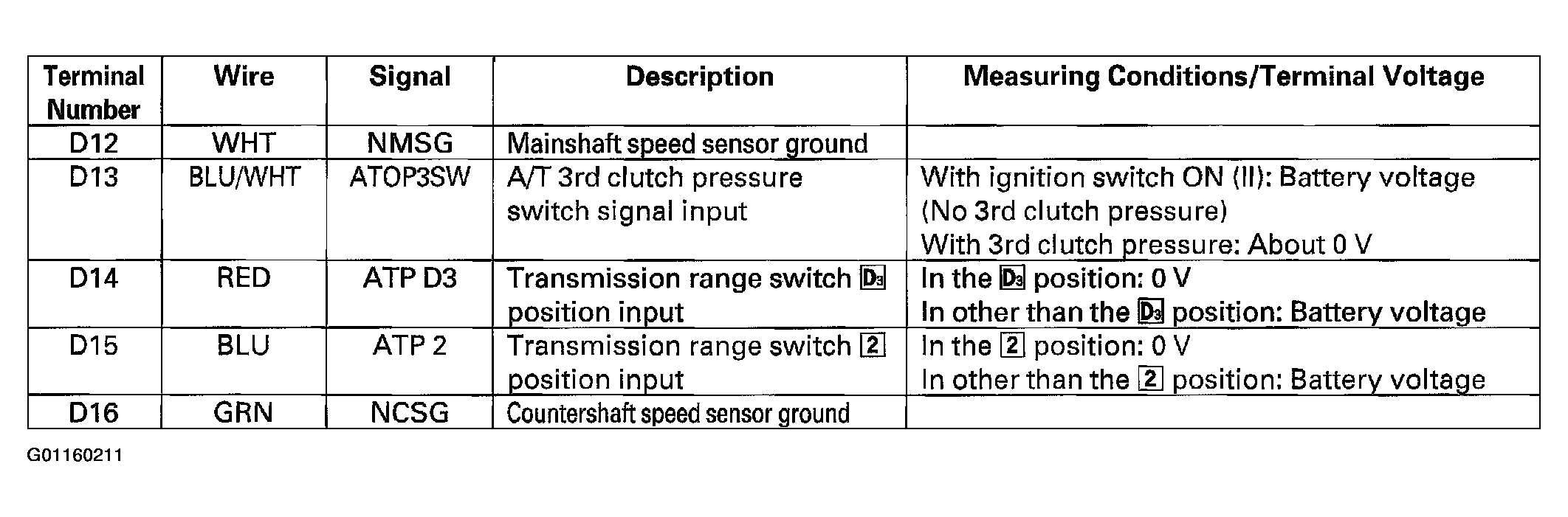

Fig 6: Identifying PCM Connector D (16P - 2 Of 2) Inputs & Outputs

Courtesy of AMERICAN HONDA MOTOR CO., INC.

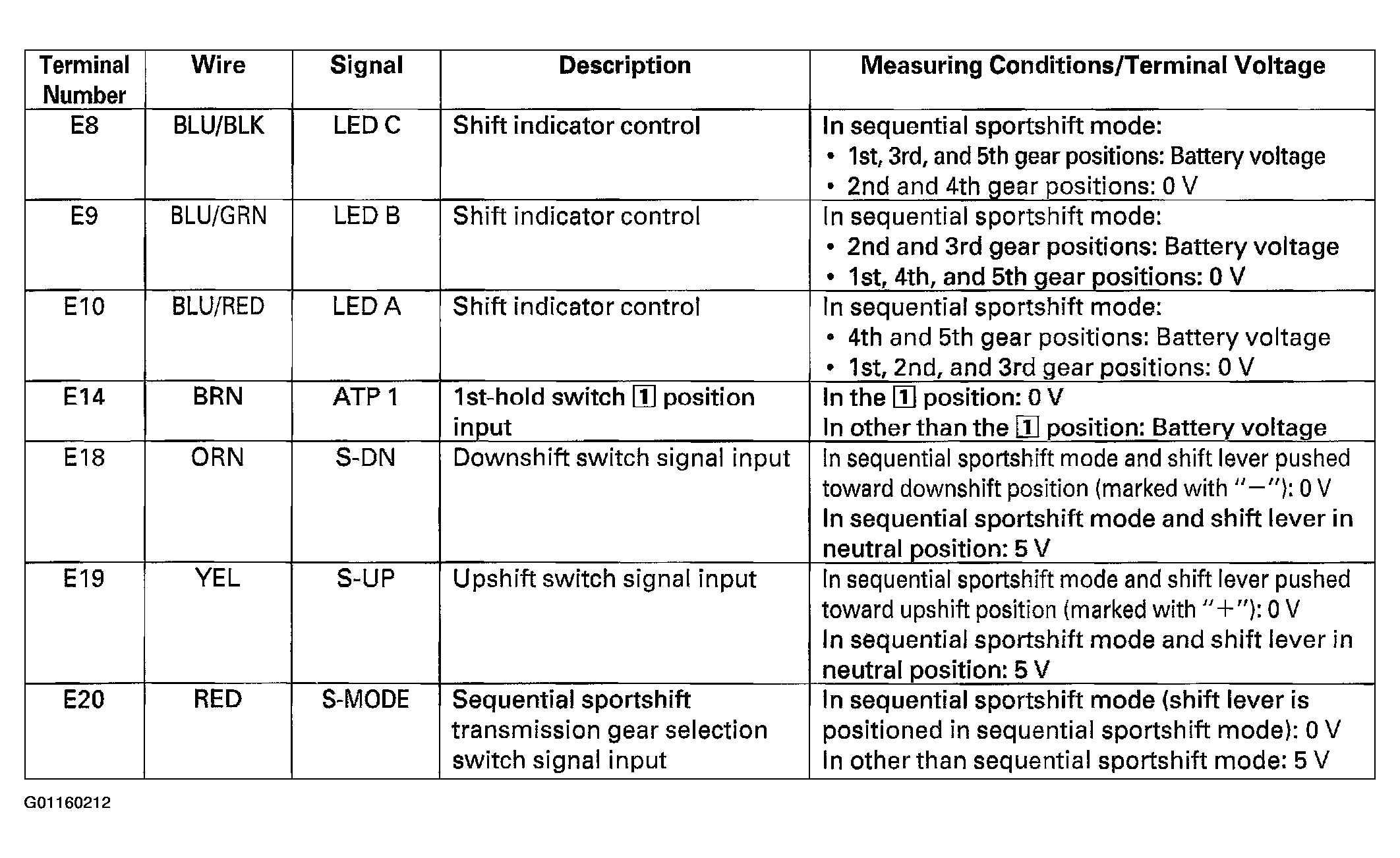

Fig 7: Identifying PCM Connector E (20P) Inputs & Outputs

Courtesy of AMERICAN HONDA MOTOR CO., INC.
