Home >> Acura >> 2003 >> 3.2TL Base >> Repair and Diagnosis >> Accessories & Equipment >> Warning Systems >> ONSTAR System >> Component Location Index >> '03 Model:
April 5, 2026: LEMON Manuals is launched! Read the announcement.

'03 Model:

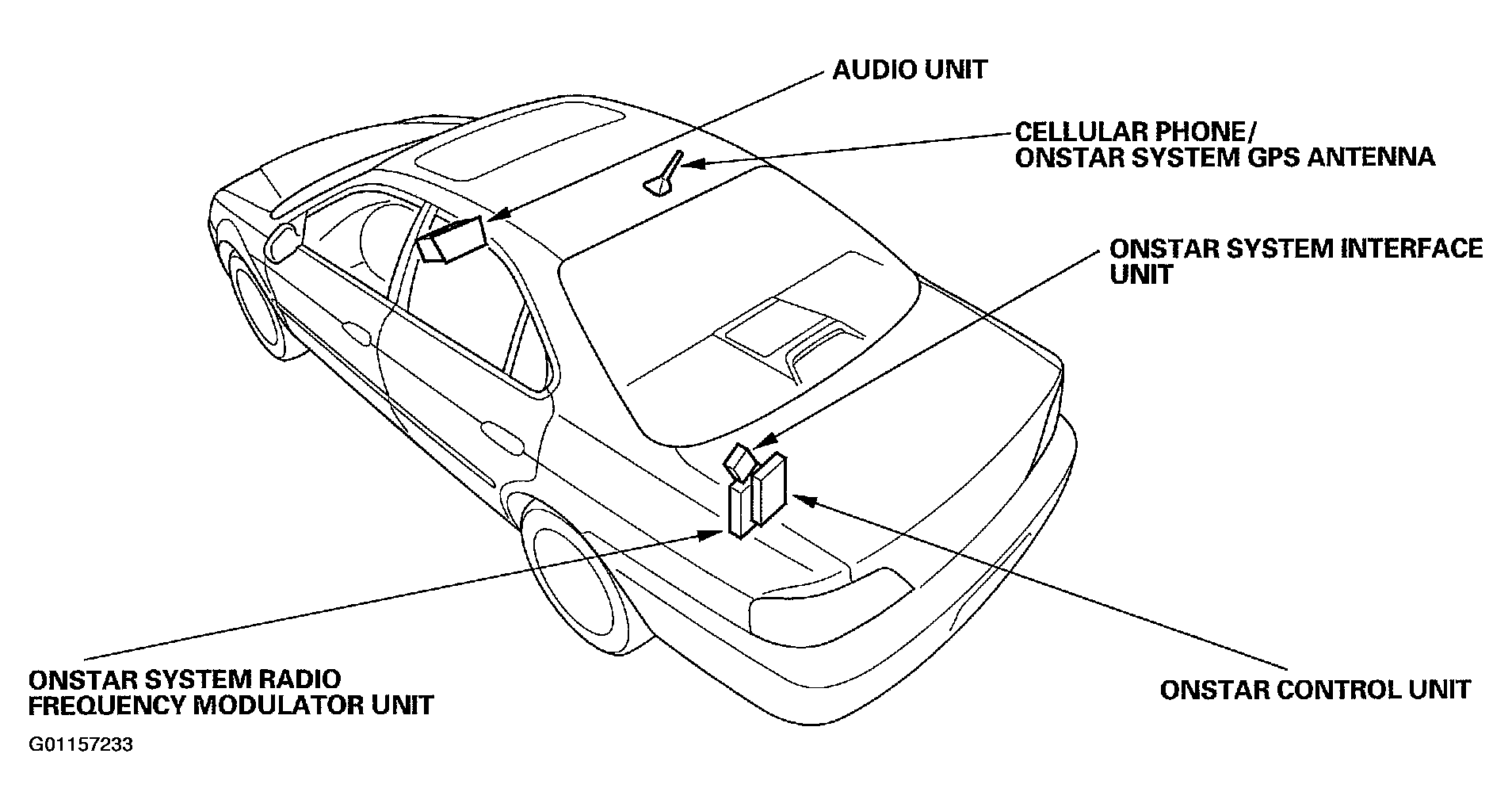

Fig 1: Locating OnStar System Components (1 Of 2)
G01157233Courtesy of AMERICAN HONDA MOTOR CO., INC.

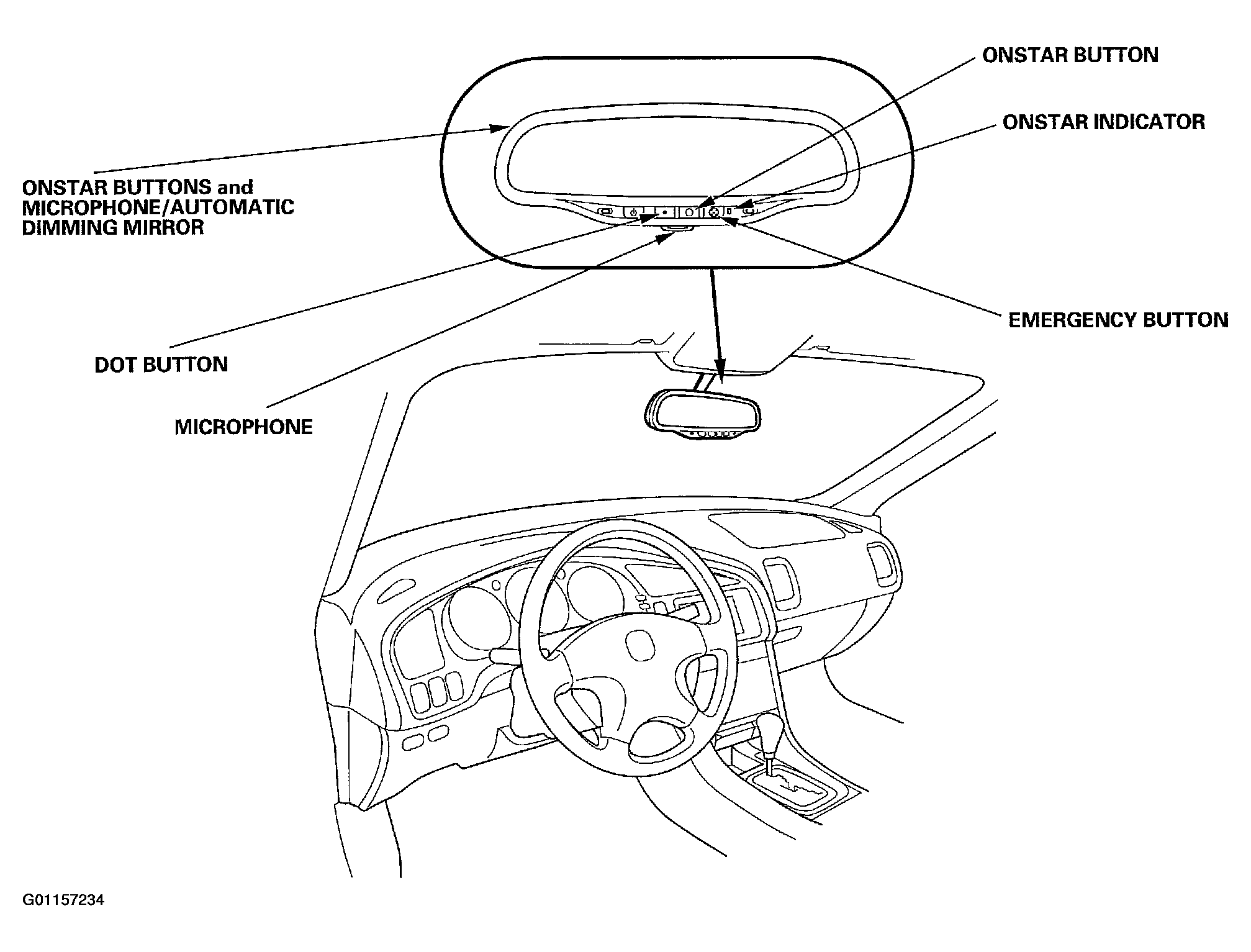

Fig 2: Locating OnStar System Components (2 Of 2)
G01157234Courtesy of AMERICAN HONDA MOTOR CO., INC.
