Circuit Diagram

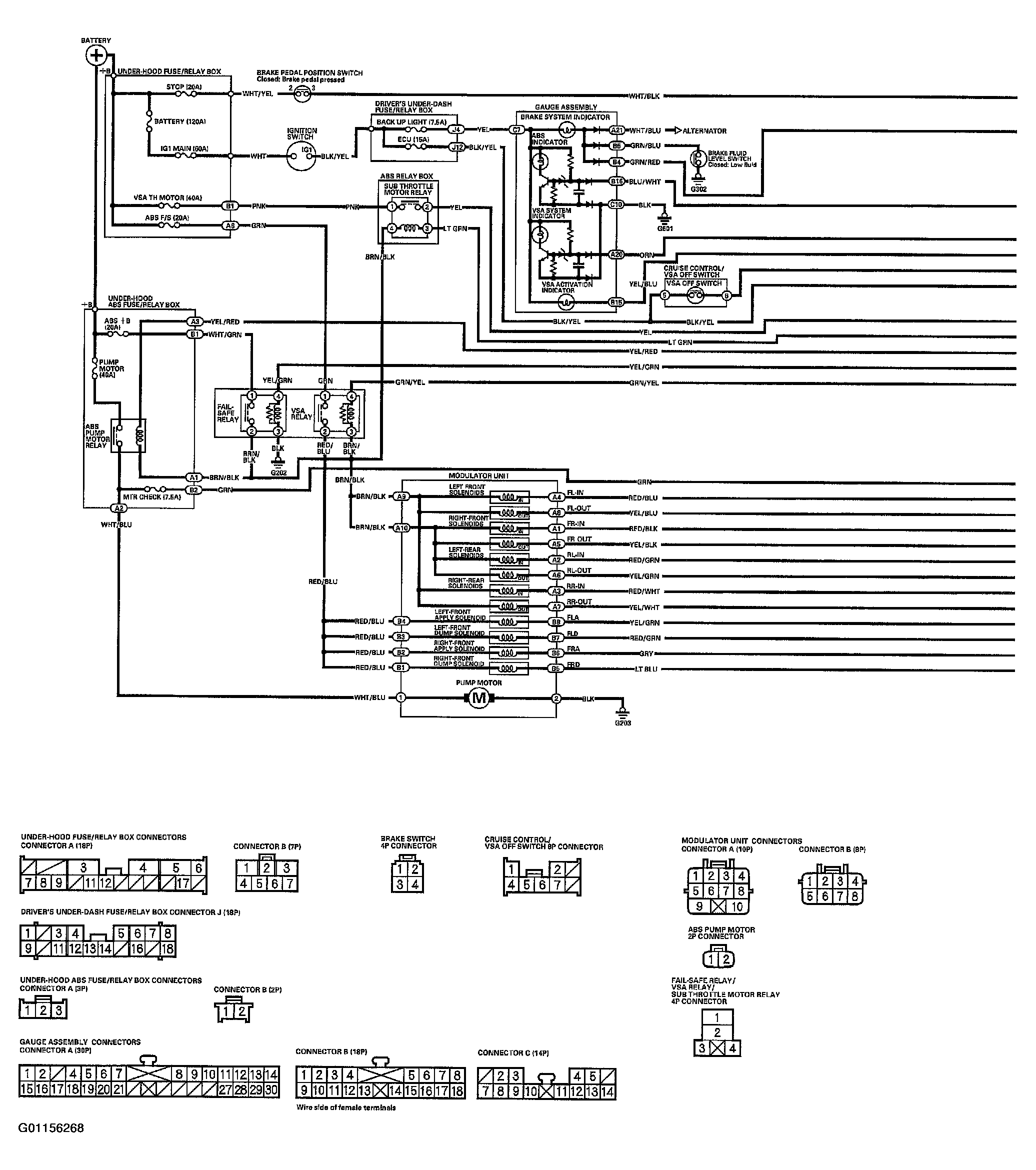

Fig 1: VSA Circuit Diagram (1 Of 2)
G01156268Courtesy of AMERICAN HONDA MOTOR CO., INC.

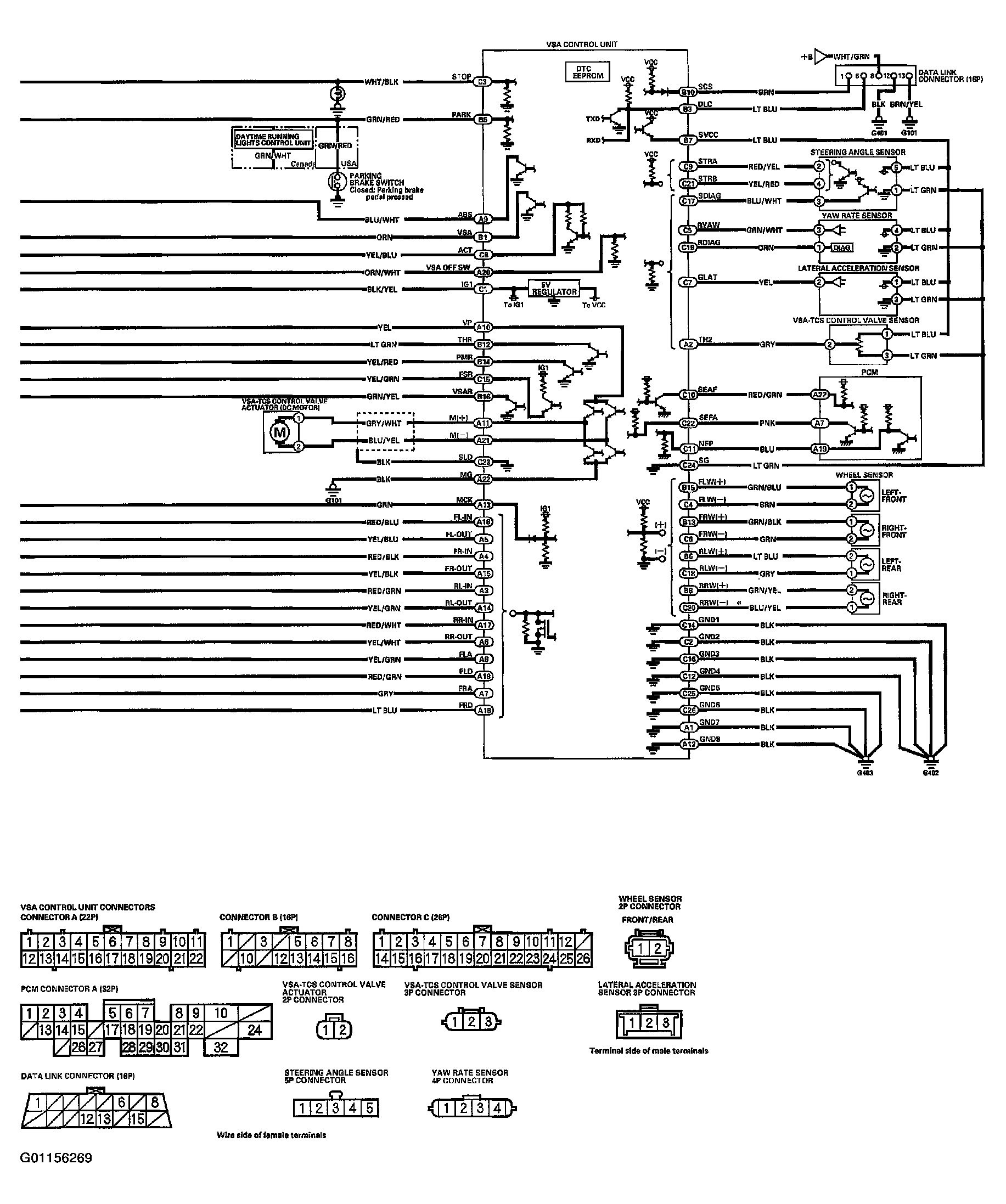

Fig 2: VSA Circuit Diagram (2 Of 2)
G01156269Courtesy of AMERICAN HONDA MOTOR CO., INC.
