Ignition Switch

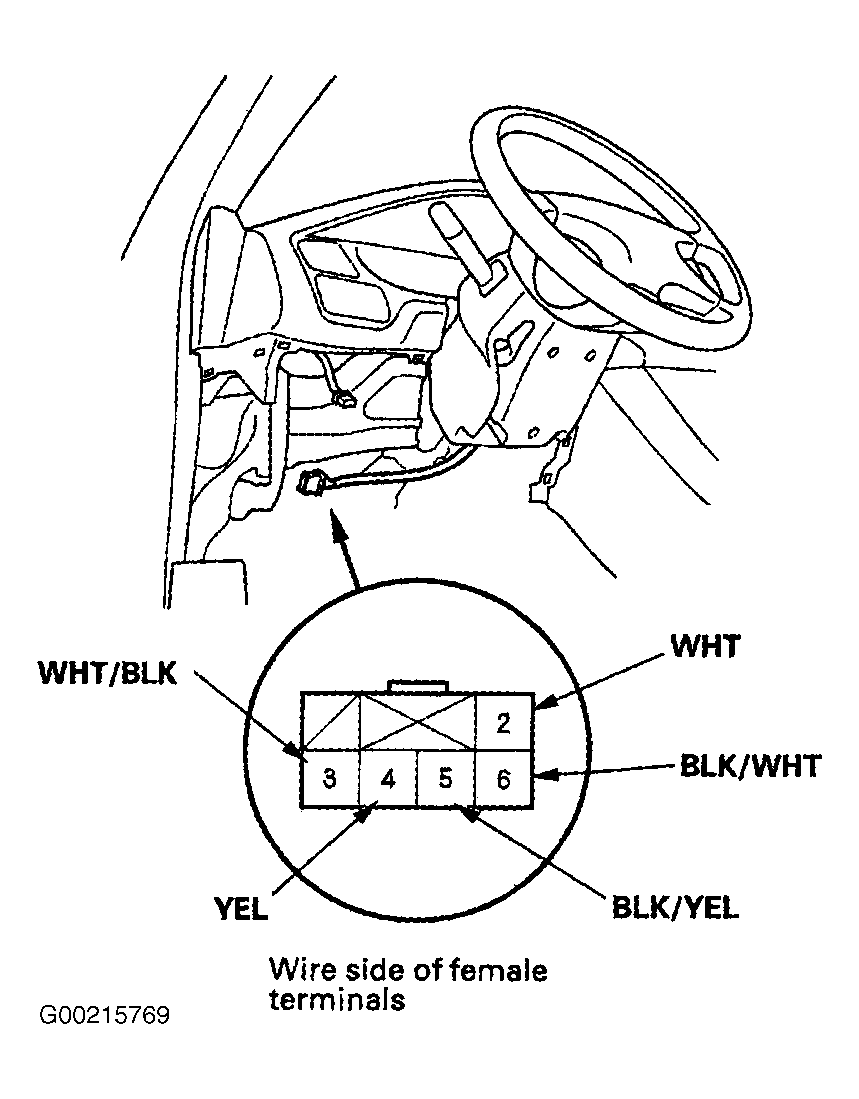

Disconnect negative battery cable. Remove dashboard lower cover. Disconnect 6-pin connector from driver's under-dash fuse/relay box. See Fig 1. Check for continuity between terminals in each switch position. See IGNITION SWITCH CONTINUITY table. If continuity is not as specified, replace ignition switch.
IGNITION SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. |
|---|---|
| I (ACC) | 2 & 3 |
| II (ON) | 2, 3, 4 & 5 |
| III (START) | 2, 5 & 6 |
