OPDS Unit ('00-'03) Connector End View

Fig 1: OPDS Unit ('00-'03) Connector End View (1 Of 2)
G11247469Courtesy of AMERICAN HONDA MOTOR CO., INC.

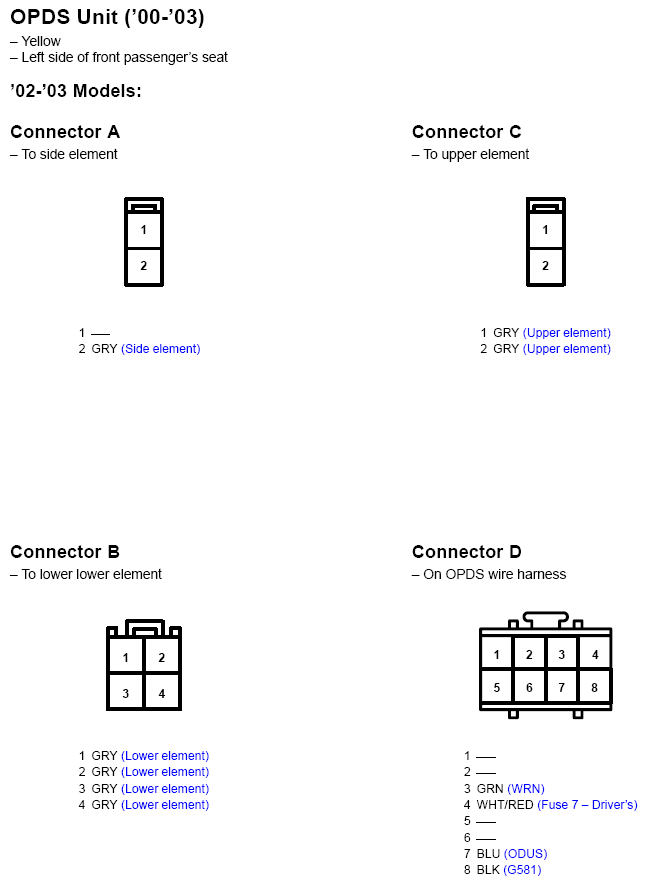

Fig 2: OPDS Unit ('00-'03) Connector End View (2 Of 2)
G11247470Courtesy of AMERICAN HONDA MOTOR CO., INC.
