Steering Linkage And Gearbox Inspection

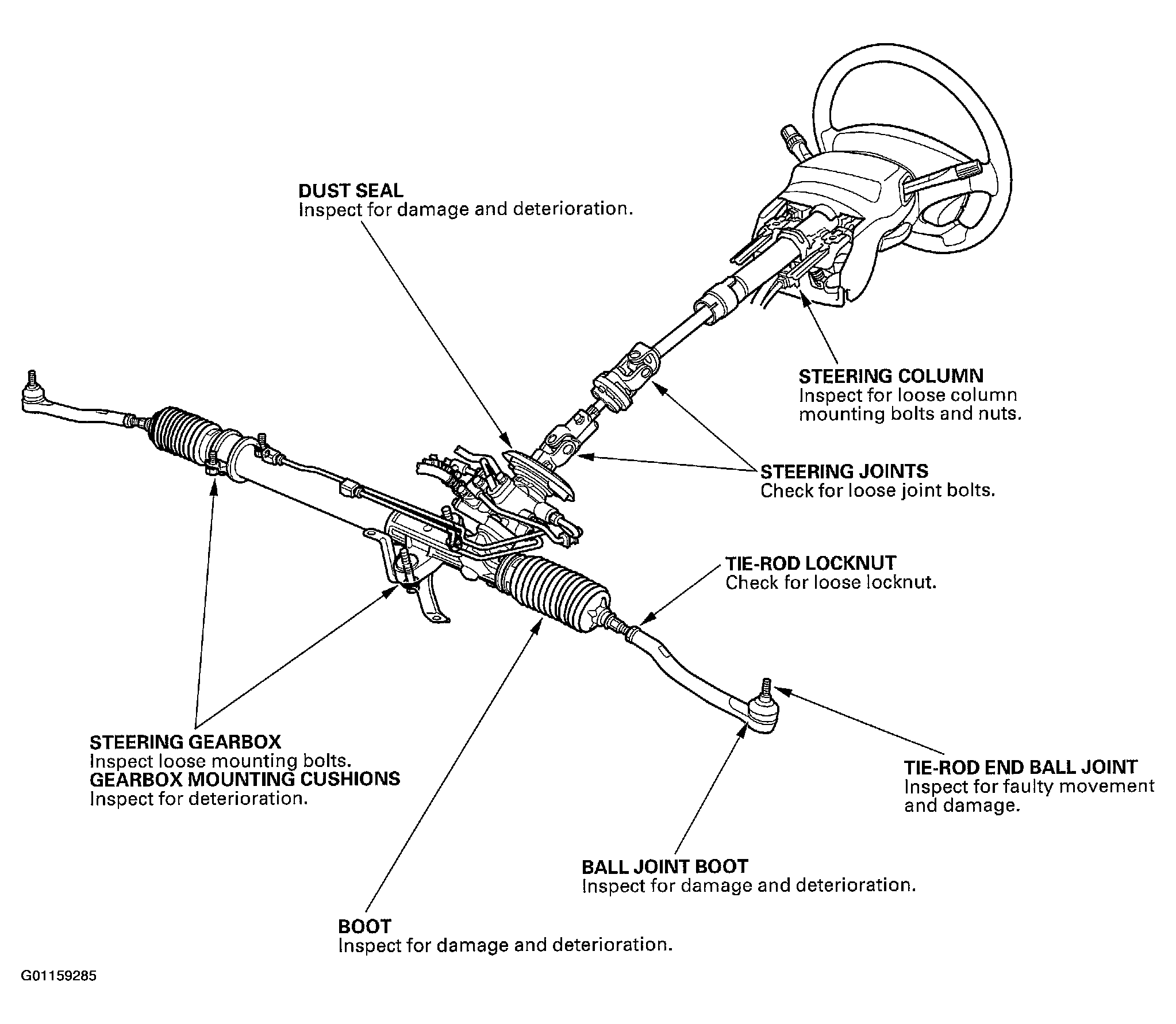

Fig 1: Exploded View Of Steering Linkage & Gearbox
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
