PCM Electrical Connections

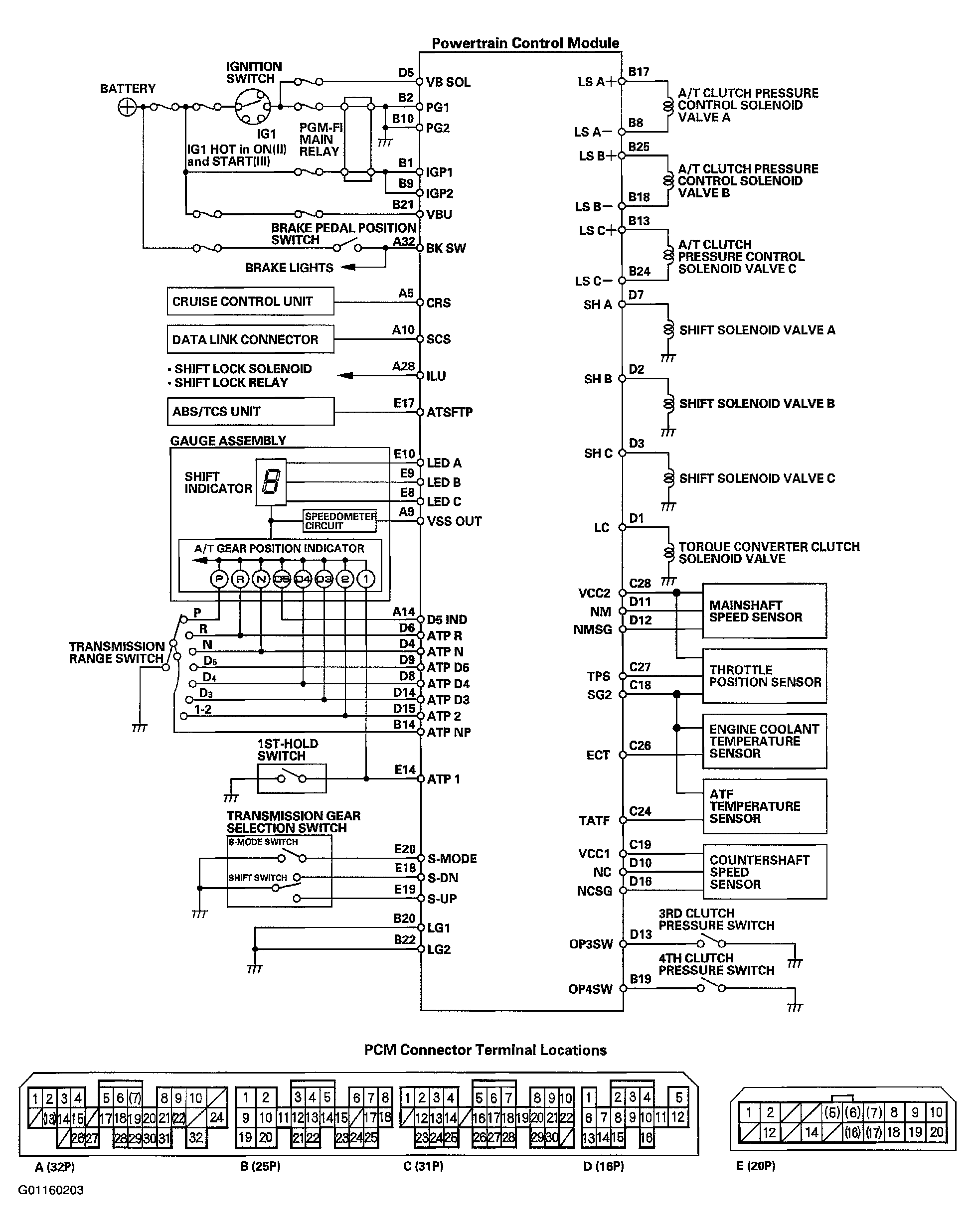

Fig 1: Identifying PCM Electrical Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
