Vehicle Speed Sensor: Service and Repair

Vehicle Speed Pulse (VSP) Sensor Replacement

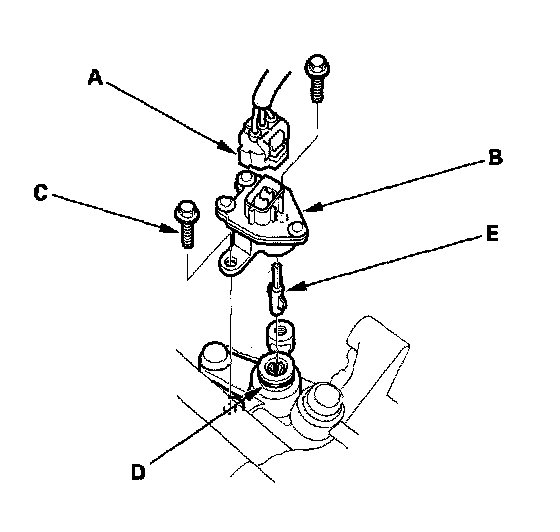

1. Disconnect the 3P connector (A) from the vehicle speed pulse (VSP) sensor (B).




2. Remove the mounting bolt (C), then remove the VSP.
3. Install the VSP. Lubricate the new O-ring (D) and the vehicle speed pulse (VSP) sensor joint (E) with grease before installing.
