VSA Control Unit Replacement


VSA Control Unit Replacement
1. Remove the passenger's kick panel.

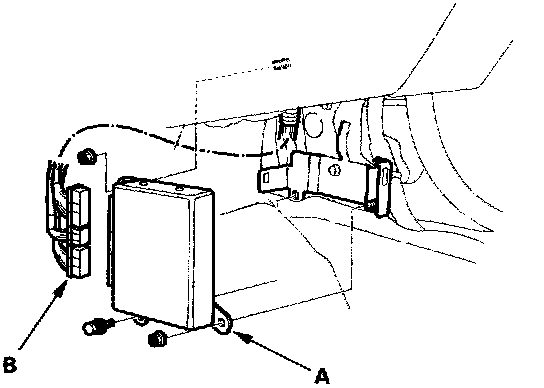

2. Remove the VSA control unit (A).
3. Disconnect the VSA control unit connectors (B).
4. Install the VSA control unit in the reverse order of removal.
5. Do the neutral position memorization.
