Vehicle Speed Sensor: Service and Repair

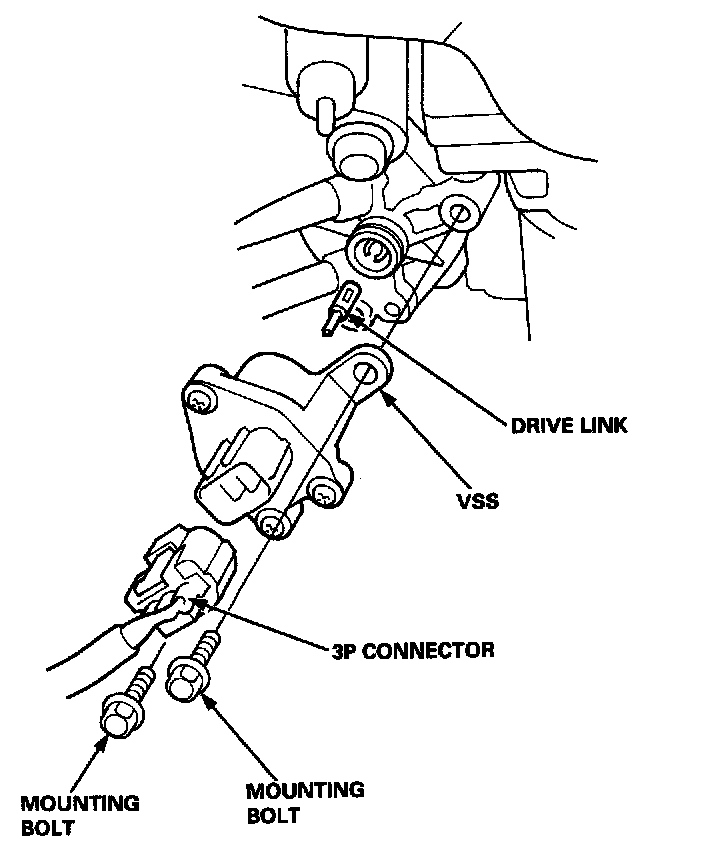

1. Disconnect the 3P connector from the vehicle speed sensor (VSS).

NOTE: The VSS drive link is a very small part; be careful not to lose it.

2. Remove the two mounting bolts, then remove the VSS.
3. Install in the reverse order of removal.
