Pressure reducing mode

VSA NO valve closed, VSA NC valve open, inlet valve closed, outlet valve open, pump motor ON.

Caliper fluid flows through the outlet valve to the reservoir.

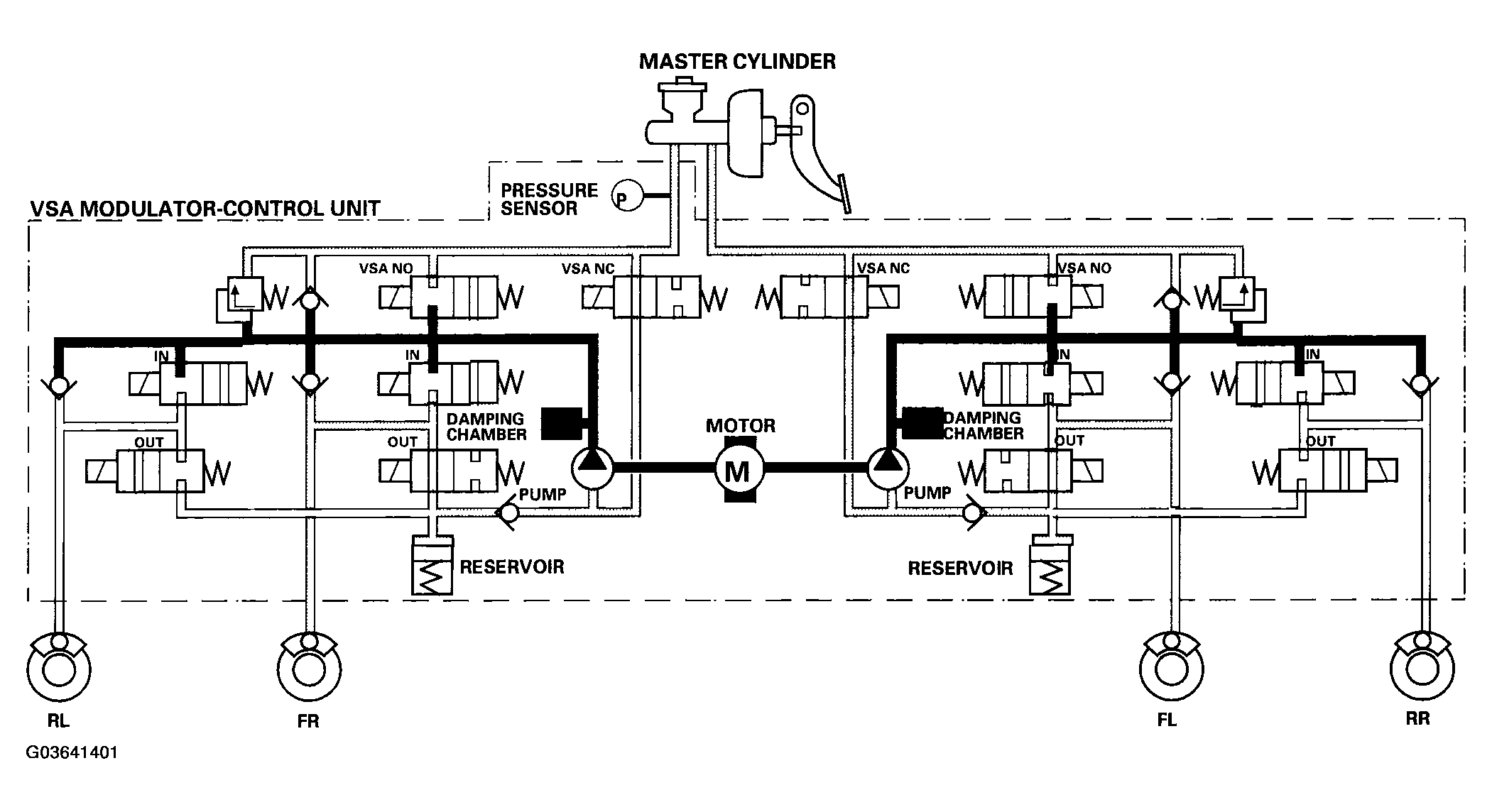

Fig 1: Identifying Pressure Reducing Mode

Courtesy of AMERICAN HONDA MOTOR CO., INC.
