VSA Sensor Neutral Position Memorization

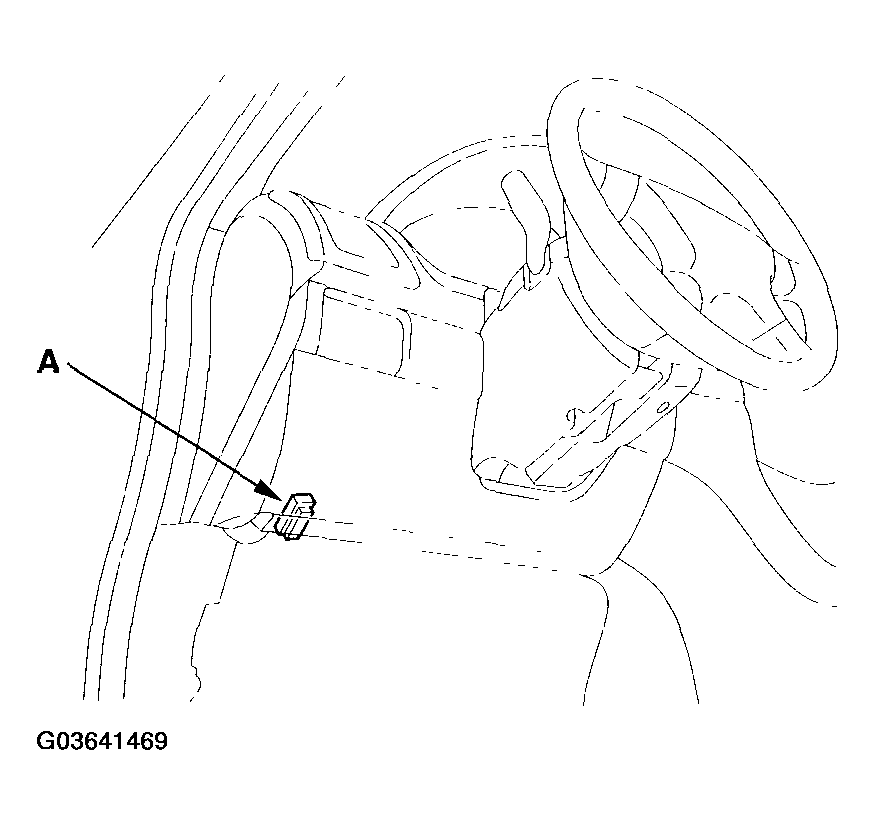

With the ignition switch OFF, connect the HDS to the 16P date link connector (DLC) (A) under the left side of the driver's dashboard.

Fig 1: Identifying VSA Sensor Neutral Position Memorization
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Short the SCS circuit to body ground using the HDS.
Make sure the vehicle is parked on a level surface.
Do not touch the brake pedal during step 5 through 10.
Turn the ignition switch ON (II).
The ABS indicator comes on for 2 seconds and goes off.
After the ABS indicator goes off, push the VSA OFF switch once within 2 seconds.
After the ABS indicator comes on, push the VSA OFF switch once within 2 seconds.
The VSA activation indicator blinks and the system starts VSA sensors neutral position memorization.
When the ABS indicator, VSA indicator, and VSA activation indicator go off, the memorizing is done. If the indicators do not go off, retry these steps.
