Vacuum Distribution

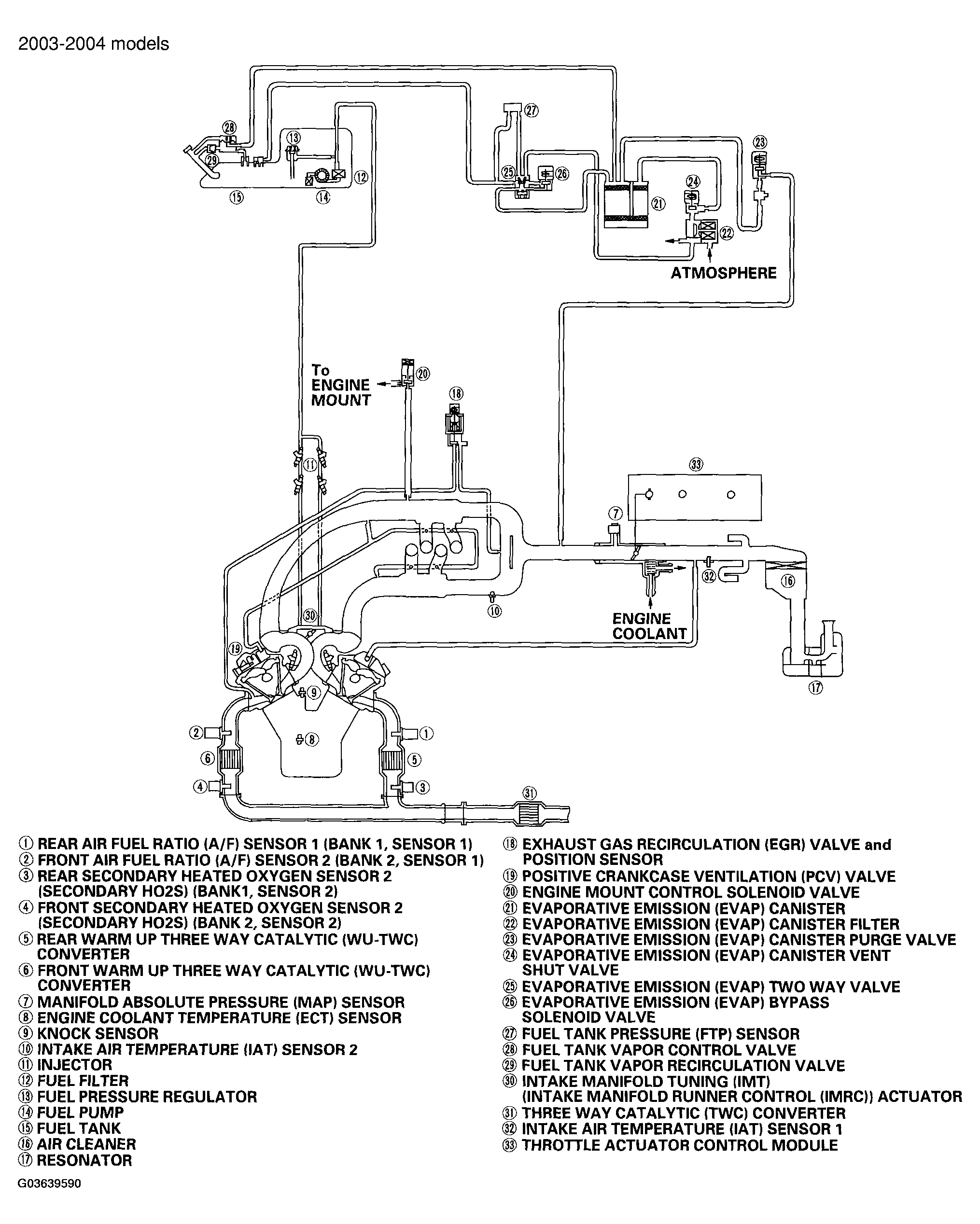

Fig 1: Identifying Vacuum Distribution (2003-04 Models)
G03639590Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying Vacuum Distribution (2005-06 Models)
G03639591Courtesy of AMERICAN HONDA MOTOR CO., INC.
