Drive Unit Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear pillar trim (see QUARTER PILLAR TRIM ).
  2. Disconnect the 2P and 8P connectors (A) from the drive unit (B).

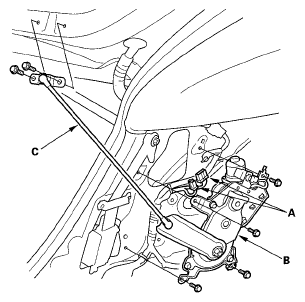

    Fig 1: Identifying 2P, 8P Connectors And Drive Unit
    G05488412Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Carefully remove the bolts and support strut (C) from the tailgate.
  4. Remove the mounting bolts and drive unit.
  5. Install in the reverse order of removal.
