Symptom Troubleshooting Using Malfunctioning Circuit Functions

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

If a malfunction occurs in the immobilizer circuit, use the table to cross-reference the malfunctioning function to the line(s) that should be checked table:

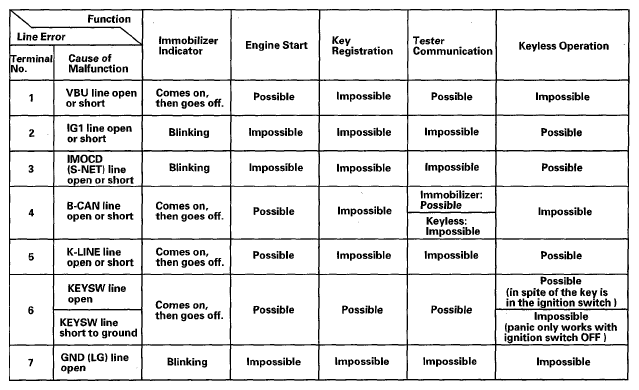

Fig 1: Symptom Troubleshooting Chart
G05488219Courtesy of AMERICAN HONDA MOTOR CO., INC.
