Third Row Child Seat Tether Anchor Replacement

  1. Remove the rear trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE LOWER AREA ).
  2. Remove the screw (A) and remove the third row child seat tether anchor (B).

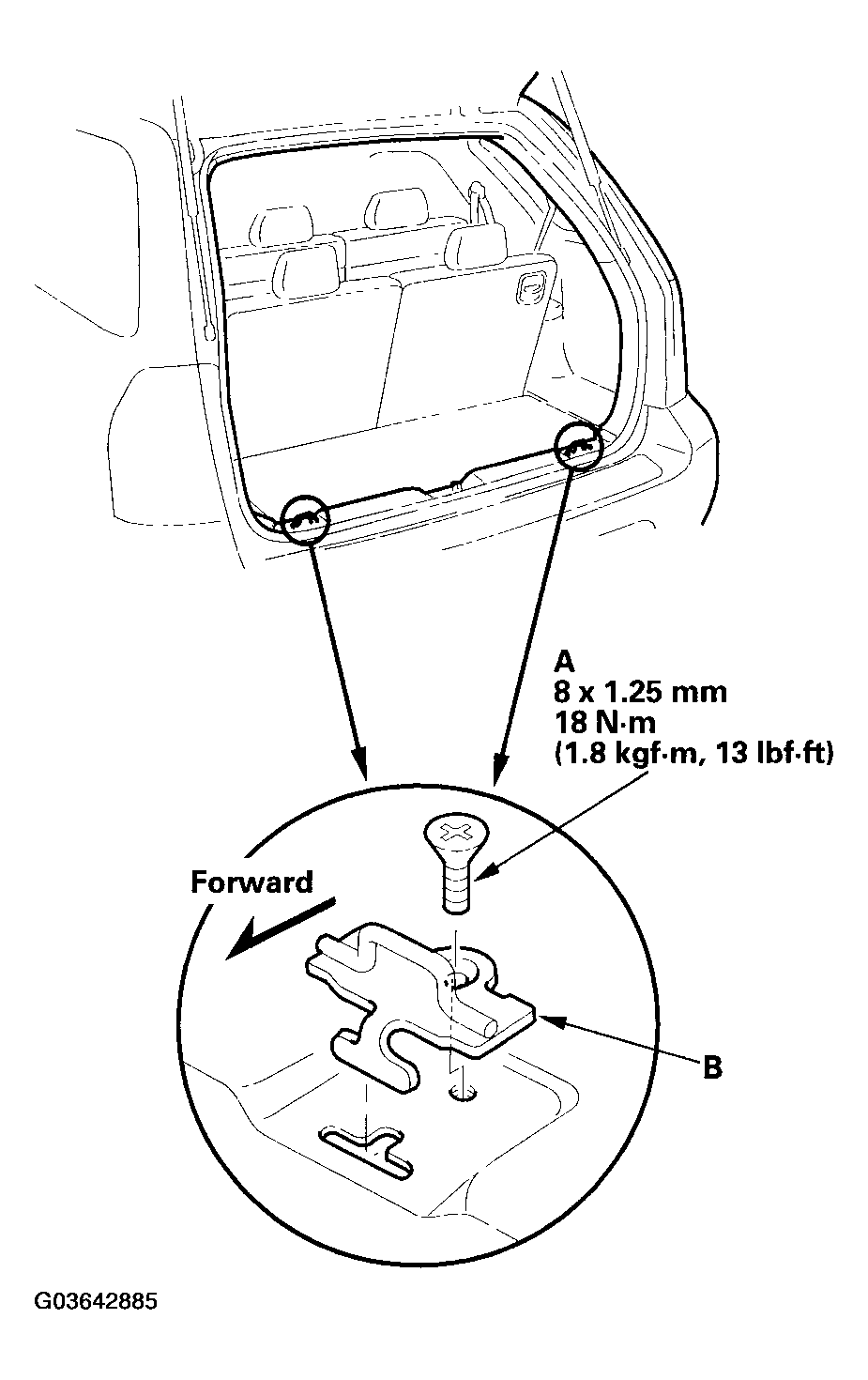

    Fig 1: Removing Screw And Third Row Child Seat Tether Anchor
    G03642885Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the anchor in the reverse order of removal.
