Circuit Diagram - PCM A/T Control System - 2002-2004 Models

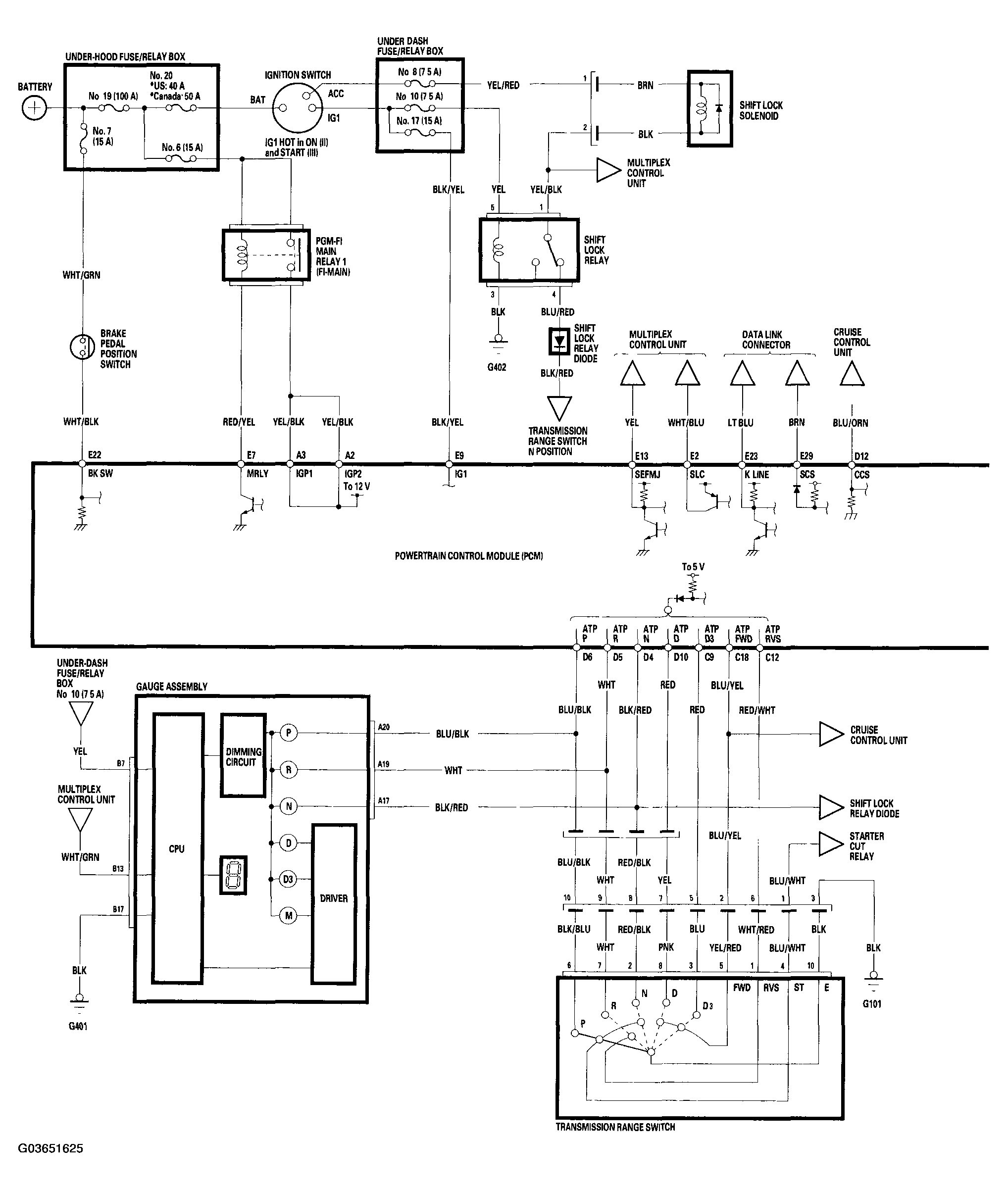

Fig 1: Circuit Diagram - PCM A/T Control System - 2002-2004 Models (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

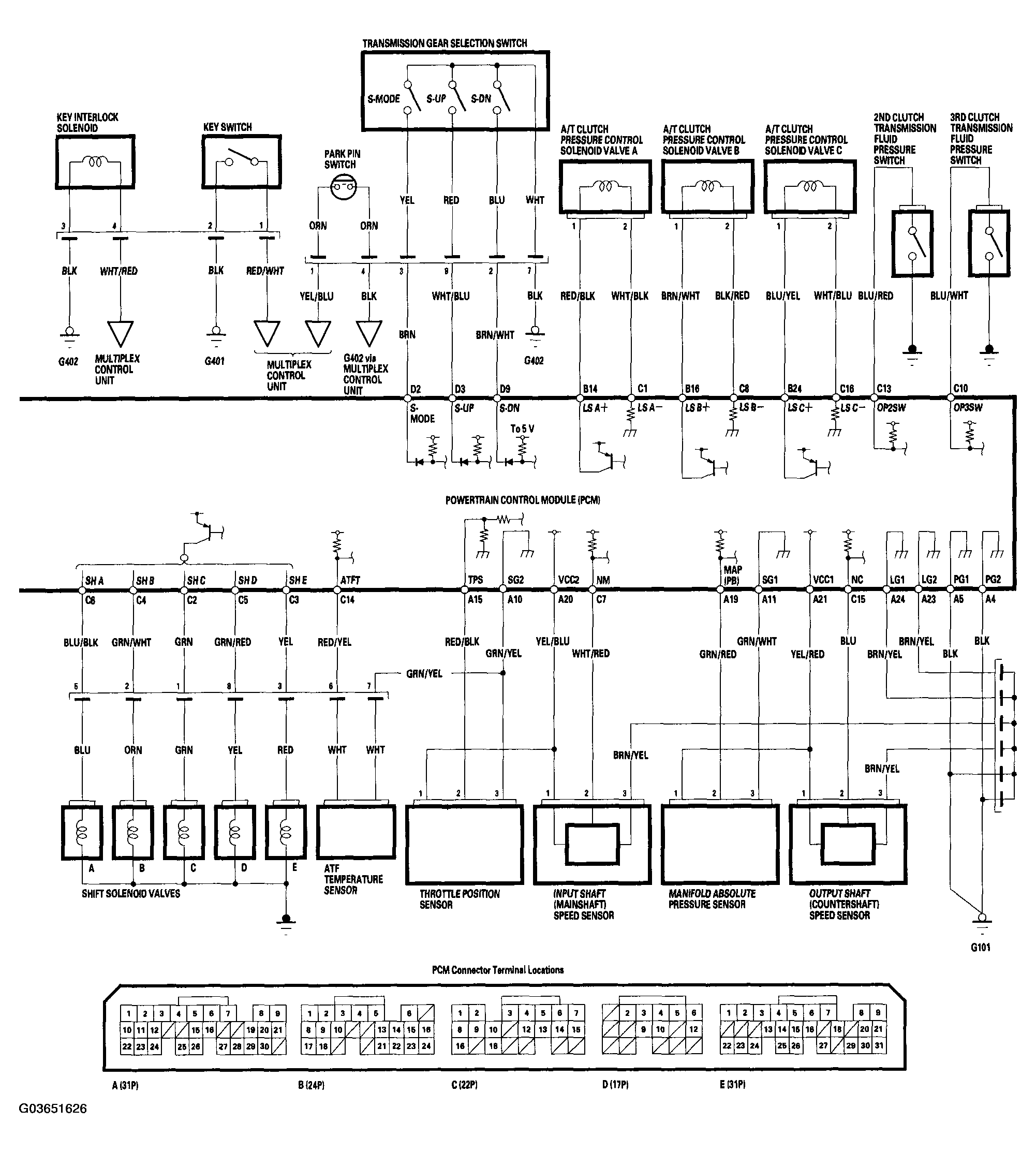

Fig 2: Circuit Diagram - PCM A/T Control System - 2002-2004 Models (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
