ECM/PCM Inputs and Outputs at Connector E (31P)-2002-2004 Models

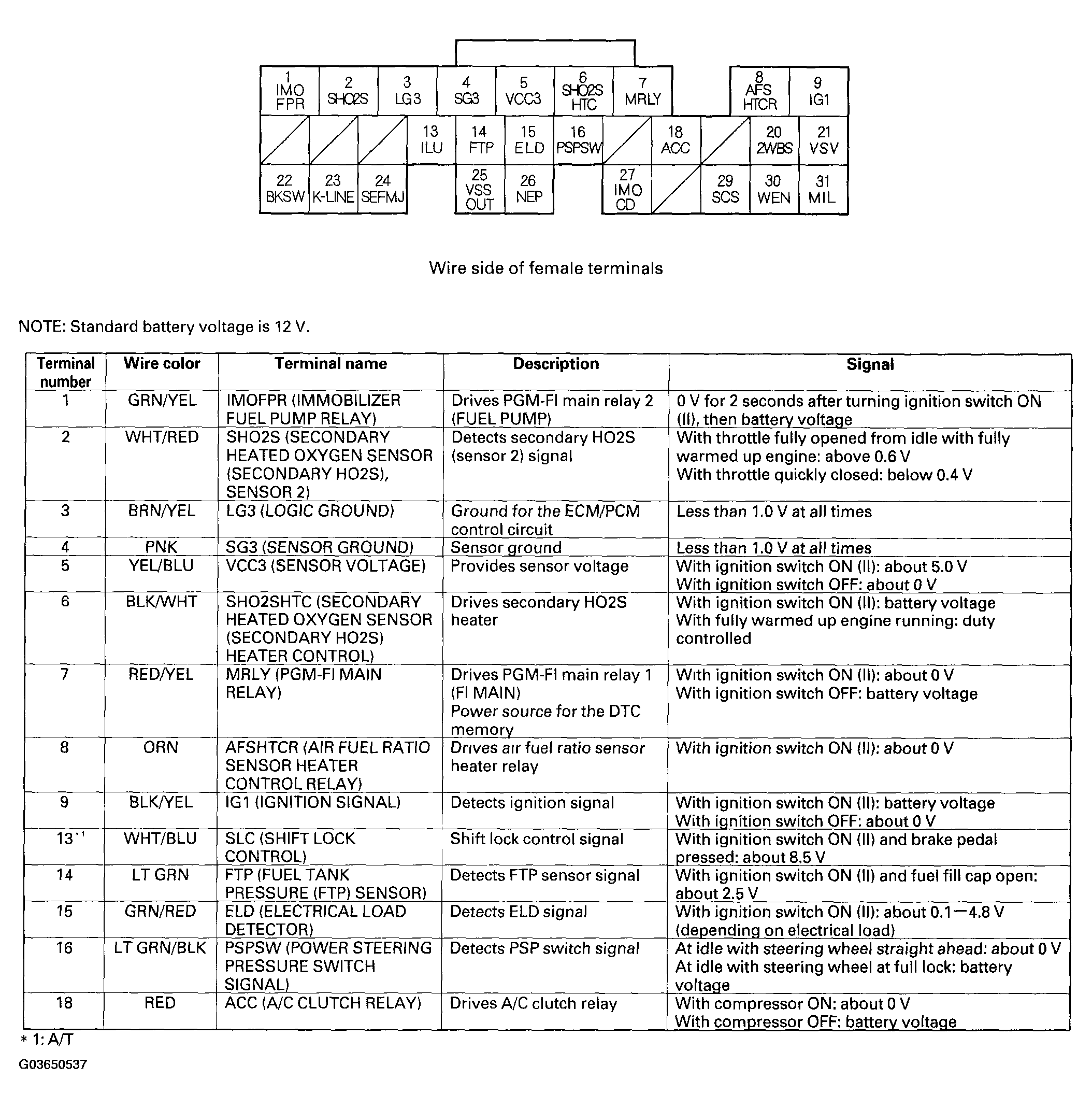

Fig 1: Identifying ECM\PCM Connector E (31P) And Terminal Description (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

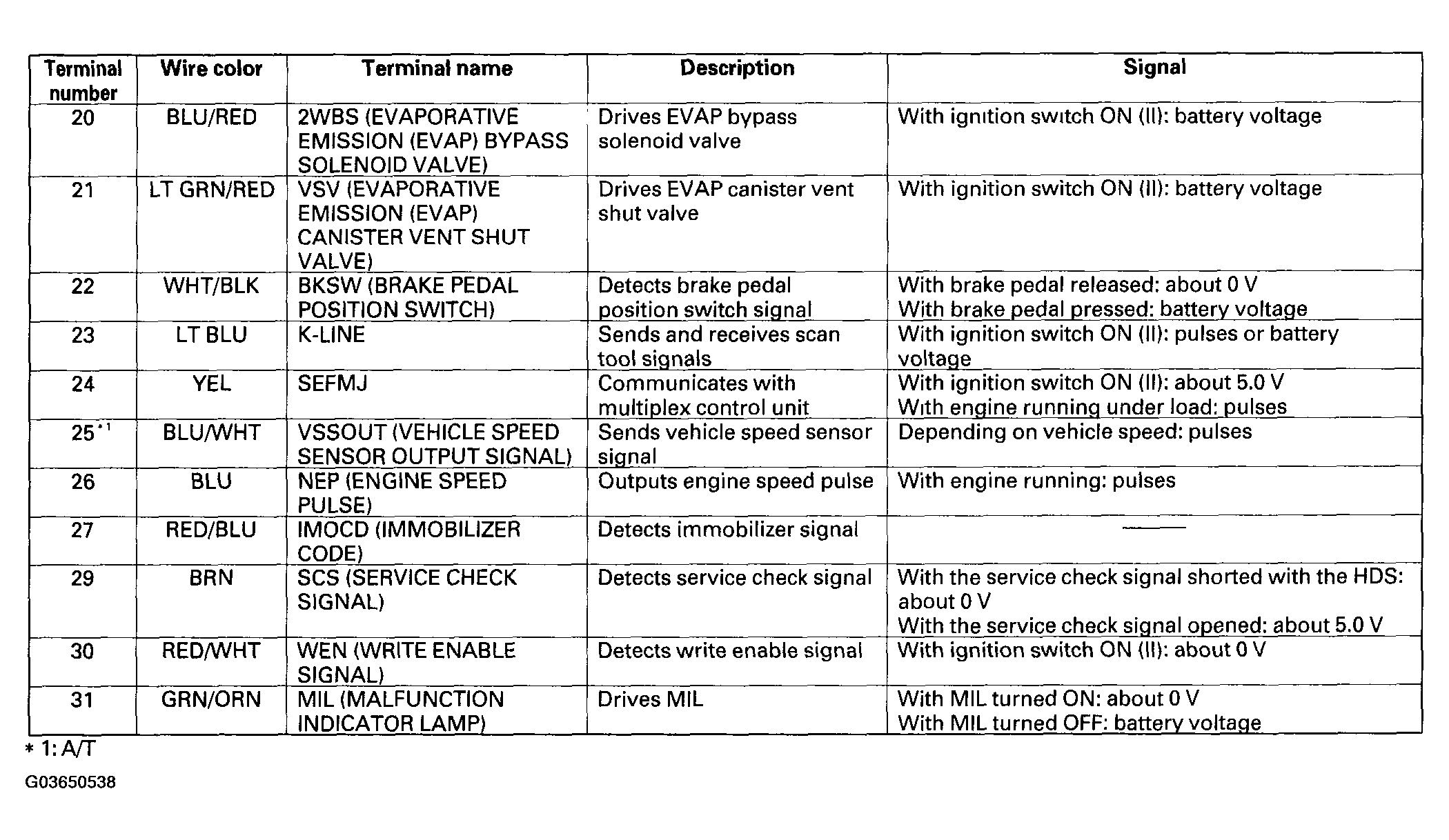

Fig 2: Identifying ECM\PCM Connector E (31P) And Terminal Description (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
