Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Electrical Load Detector (ELD) Unit | Underhood fuse/relay box. |
| Underdash Fuse/Relay Box | Under left side of dash. |

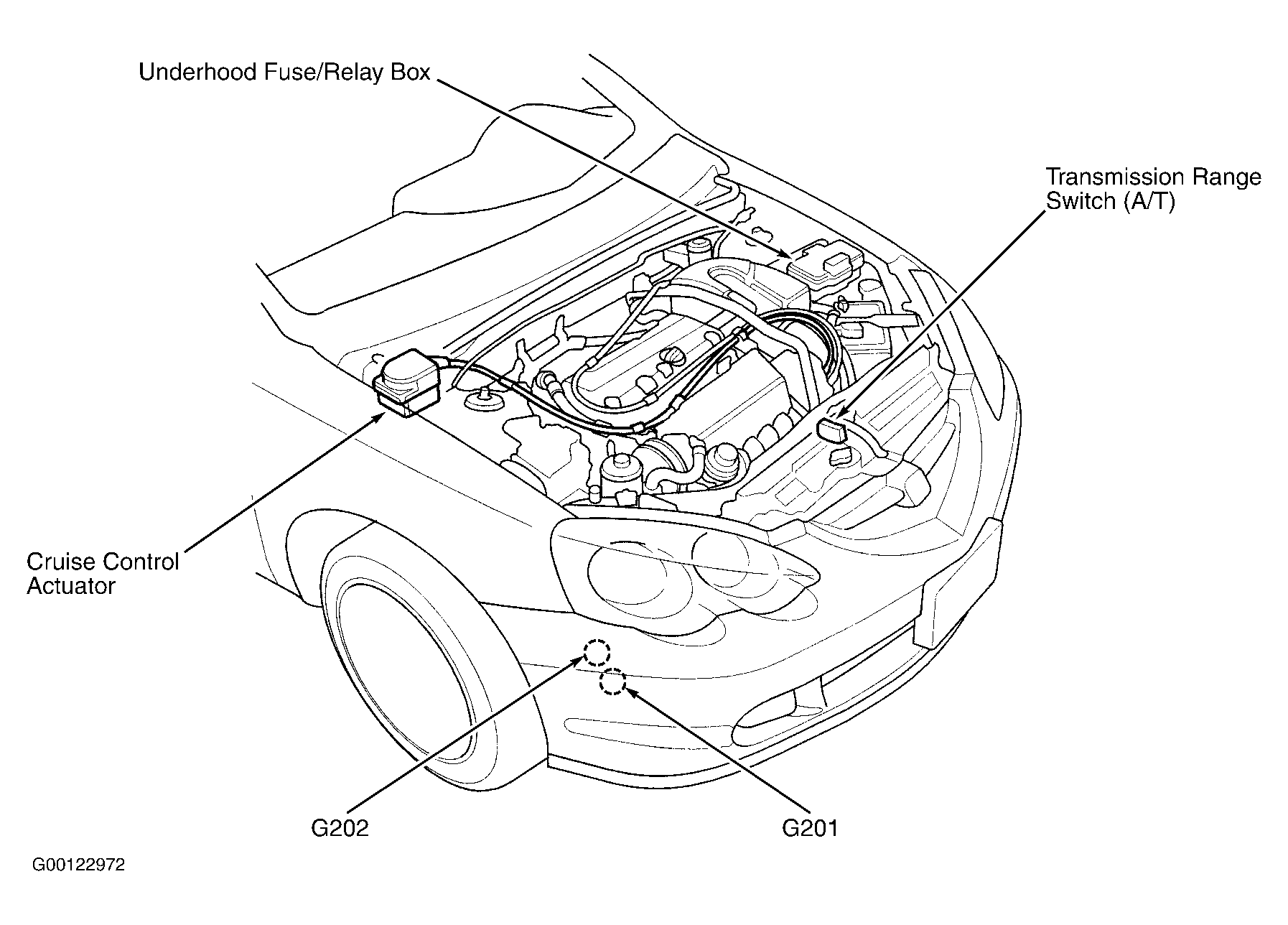

| Underhood Fuse/Relay Box | Left side of engine compartment, near battery. See Figure . |
