Piston Ring Replacement

Remove the piston from the engine block (see CRANKSHAFT AND PISTON REMOVAL ).
Using a ring expander (A), remove the old piston rings (B).

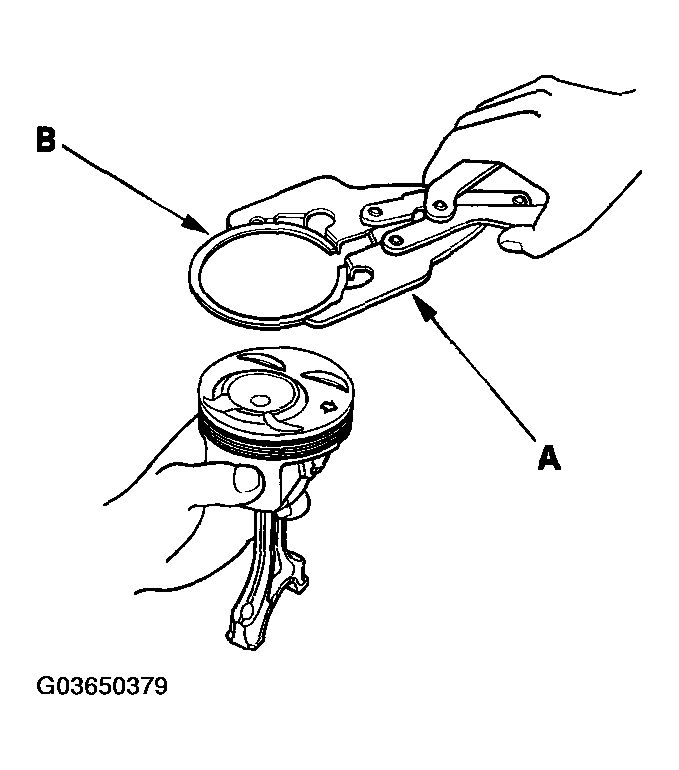

Fig 1: Removing Old Piston Rings Using Ring Expander
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Clean all ring grooves thoroughly with a squared-off broken ring or ring groove cleaner with a blade to fit the piston grooves. The top and 2nd ring grooves are 1.2 mm (0.05 in.) wide. The oil ring groove is 2.0 mm (0.08 in.) wide. File down a blade, if necessary. Do not use a wire brush to clean the ring grooves, or cut the ring grooves deeper with the cleaning tools.
NOTE: If the piston is to be separated from the connecting rod, do not install new rings yet.
Using a piston, push a new ring (A) into the cylinder bore 15-20 mm (0.6-0.8 in.) from the bottom.

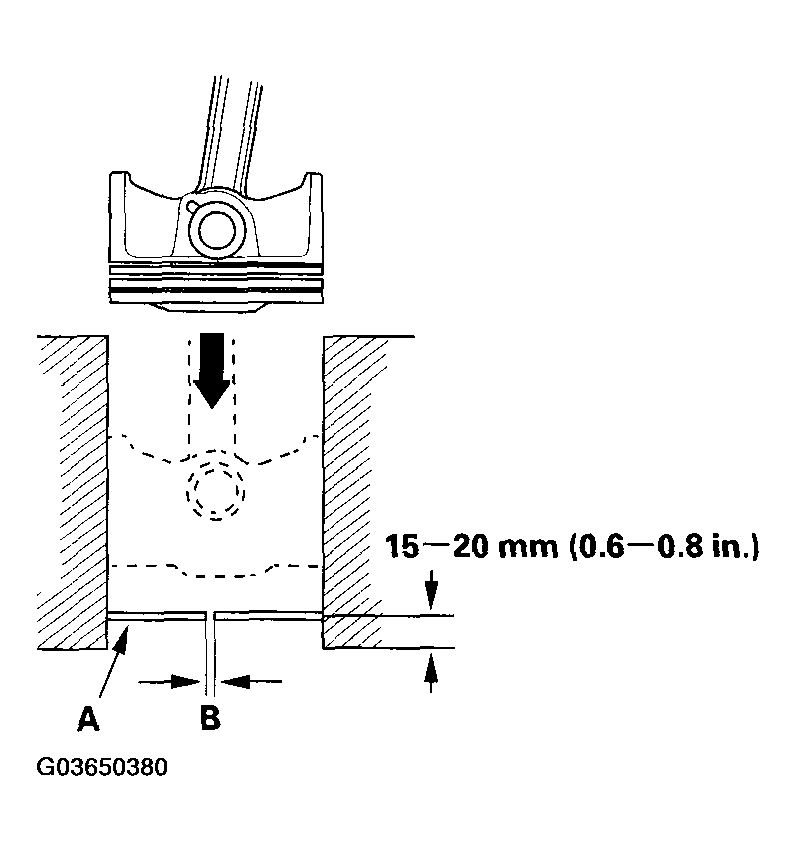

Fig 2: Pushing New Rings Into Cylinder Bore
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the piston ring end-gap (B) with a feeler gauge:
- If the gap is too small, check to see if you have the proper rings for your engine.
- If the gap is too large, recheck the cylinder bore diameter against the wear limits (see BLOCK AND PISTON INSPECTION ). If the bore is over the service limit, the engine block must be rebored.
Piston Ring End-Gap

Top Ring:

Standard (New): 0.20-0.35 mm (0.008-0.014 in.)

Service Limit: 0.60 mm (0.024 in.)

Second Ring:

K20A3 Engine:

Standard (New): 0.40-0.55 mm (0.016-0.022 in.)

Service Limit: 0.70 mm (0.028 in.)

K20A2, K20Z1 Engines:

Standard (New): 0.50-0.65 mm (0.020-0.026 in.)

Service Limit: 0.75 mm (0.030 in.)

Oil Ring:

K20A3 Engine:

Standard (New): 0.25-0.65 mm (0.010-0.026 in.)

Service Limit: 0.75 mm (0.030 in.)

K20A2, K20Z1 Engines:

Standard (New): 0.20-0.70 mm (0.008-0.028 in.)

Service Limit: 0.80 mm (0.031 in.)

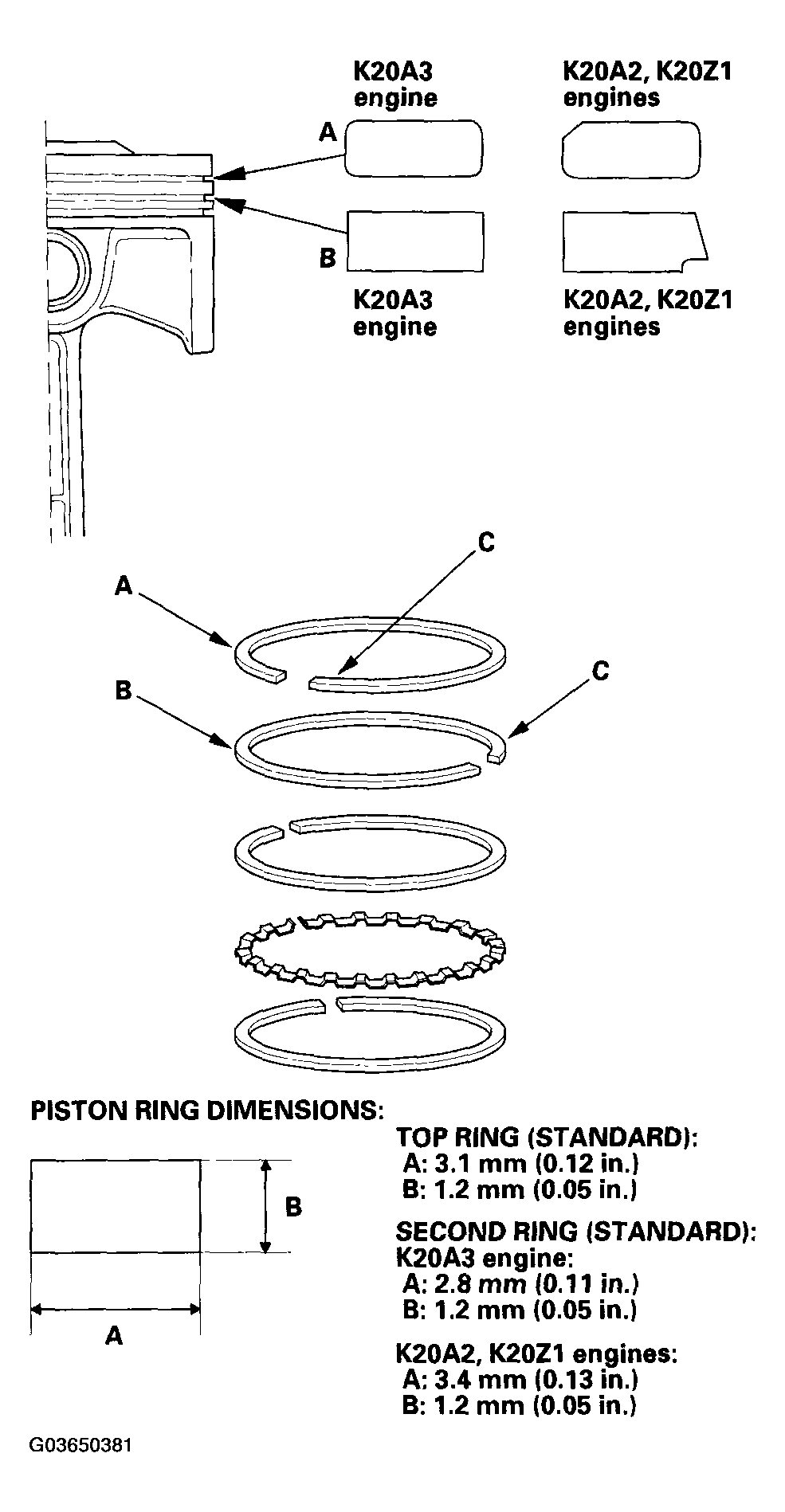

Install the top ring and second ring as shown. The top ring (A) has a T1 or R1 mark and the second ring (B) has a T2 or R2 mark. The manufacturing marks (C) must be facing upward.

Fig 3: Installing Top Ring And Second Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rotate the rings in their grooves to make sure they do not bind.
Position the ring end gaps as shown:

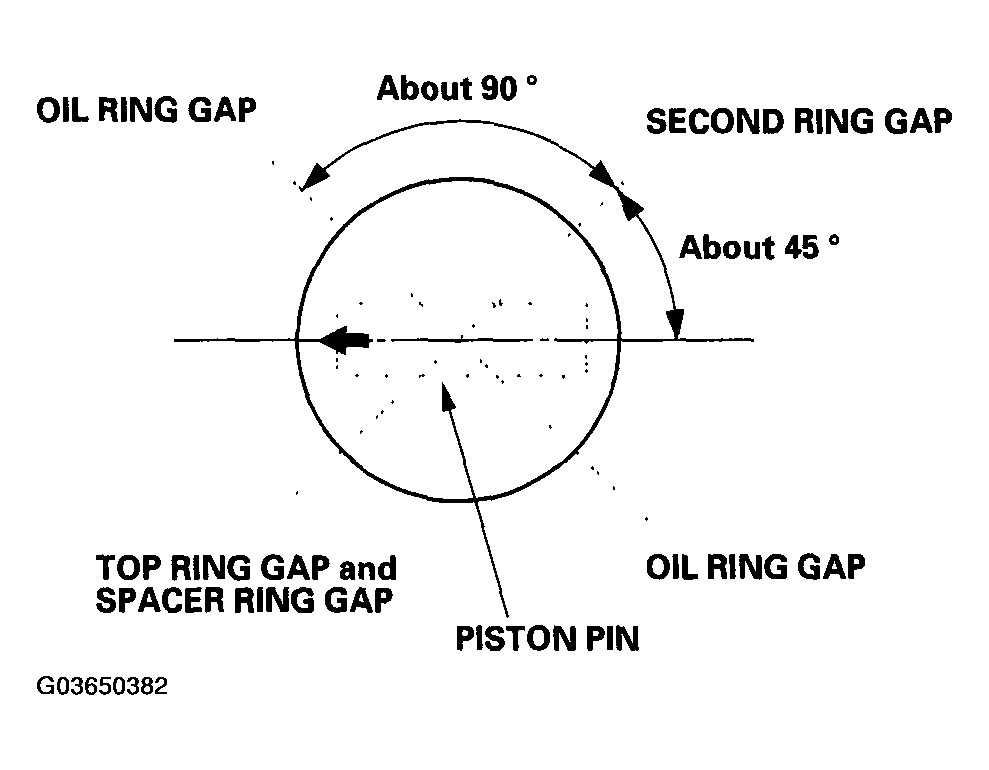

Fig 4: Positioning Ring End Gaps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After installing a new set of rings, measure the ring-to-groove clearances:
Top Ring Clearance

K20A3 Engine:

Standard (New): 0.035-0.060 mm

(0.0014-0.0024 in.)

Service Limit: 0.13 mm (0.005 in.)

K20A2, K20Z1 Engines:

Standard (New): 0.040-0.065 mm

(0.0016-0.0026 in.)

Service Limit: 0.13 mm (0.005 in.)

Second Ring Clearance

K20A3 Engine:

Standard (New): 0.030-0.055 mm

(0.0012-0.0022 in.)

Service Limit: 0.13 mm (0.005 in.)

K20A2, K20Z1 Engines:

Standard (New): 0.045-0.070 mm

(0.0018-0.0028 in.)

Service Limit: 0.13 mm (0.005 in.)

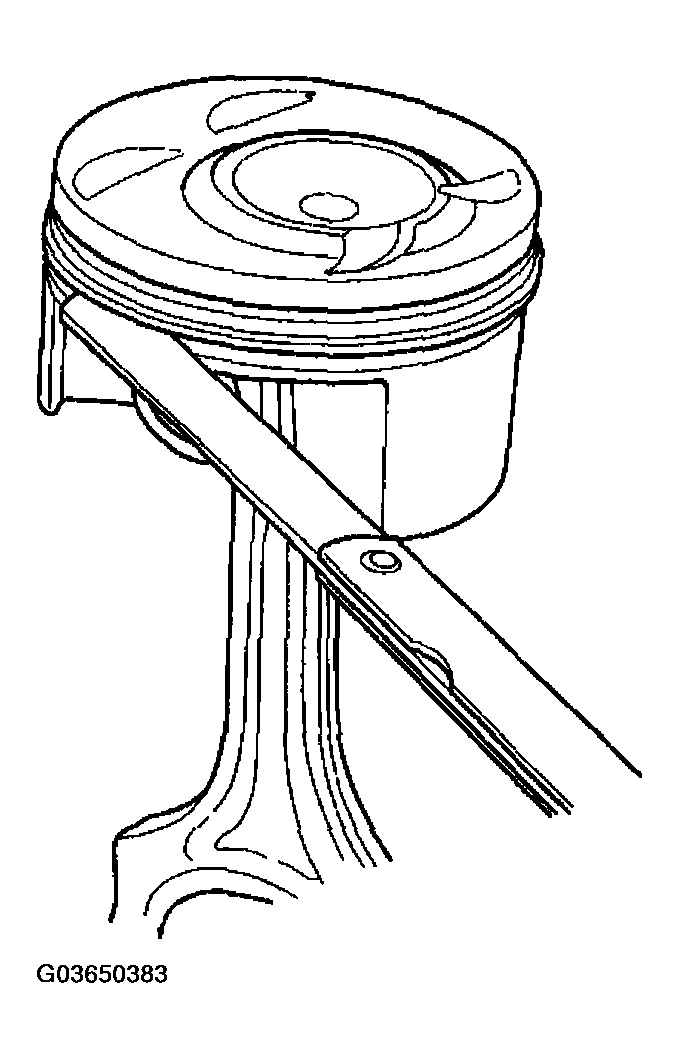

Fig 5: Measuring Ring-To-Groove Clearances
