Climate Control Unit Removal and Installation

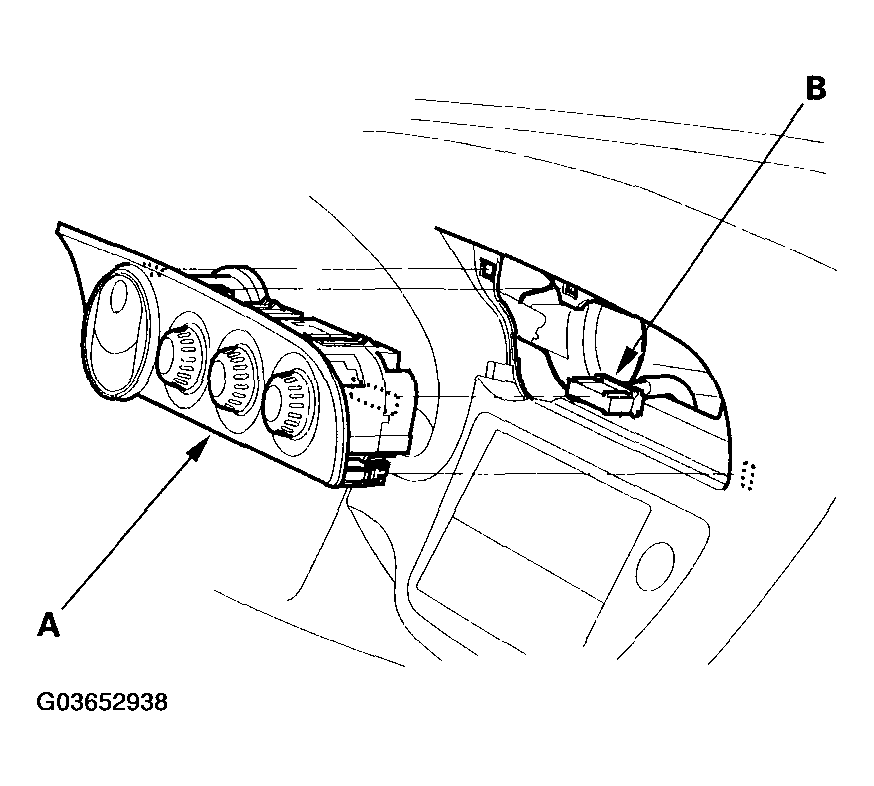

- Remove the climate control unit (A) from the dashboard, then disconnect the 30P connector (B). Be careful not to damage the control unit or the dashboard.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the control unit in the reverse order of removal. After installation, operate the control unit controls to see if they work properly.
- Run the self-diagnostic function to confirm that there are no problems in the system (see GENERAL TROUBLESHOOTING INFORMATION
).
