Child Seat Tether Anchor Removal/Installation

  1. Open the child seat tether anchor cap (A) in the trunk side trim panel (B).

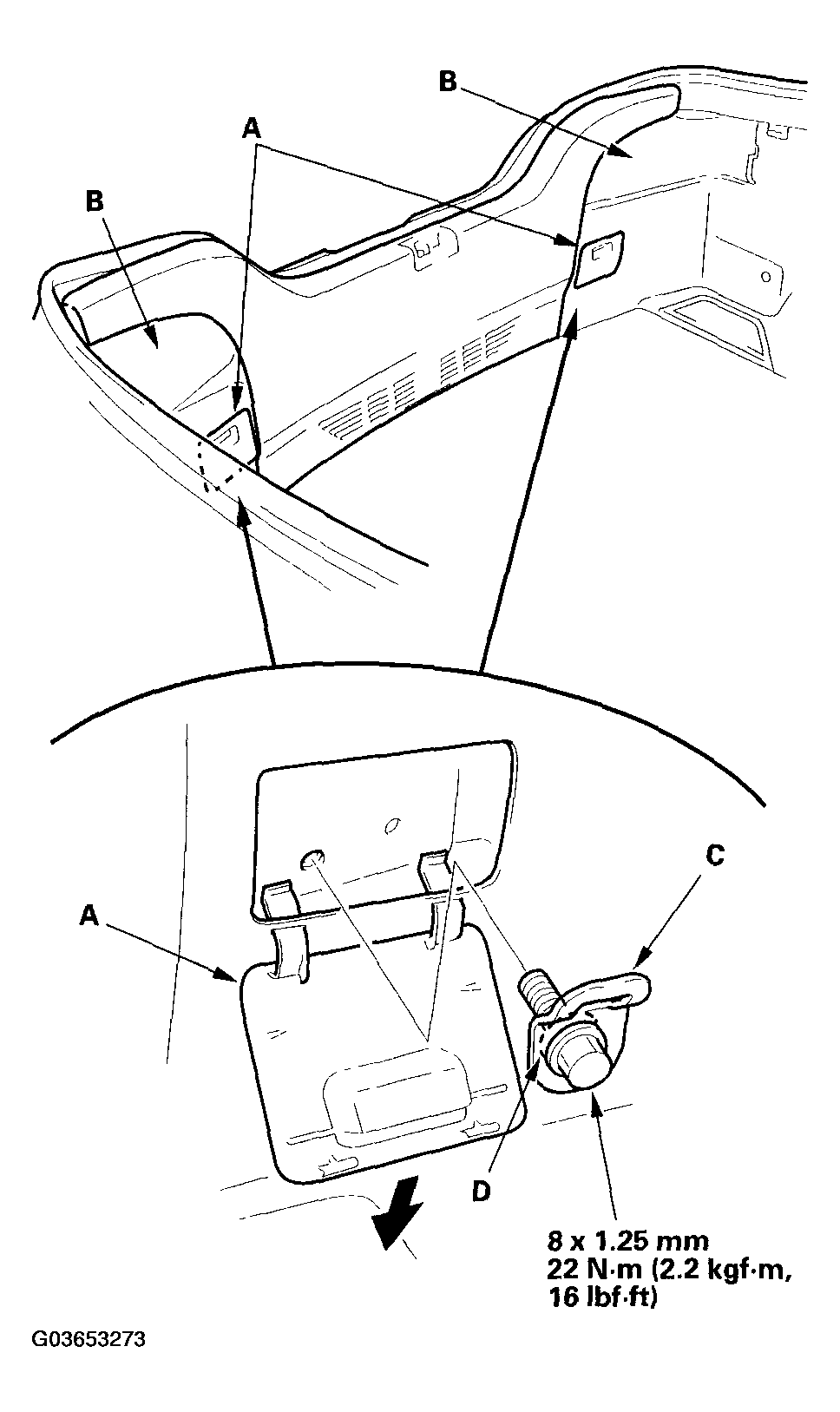

    Fig 1: Opening Child Seat Tether Anchor Cap And Torque Specifications
    G03653273Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the child seat tether anchor (C). Do not remove the toothed washer (D) from the tether anchor.
  3. Install the anchor in the reverse order of removal, and apply liquid thread lock to the threads of the anchor bolt(s).
