Cruise Control Servo: Service and Repair

Actuator/Cable Replacement

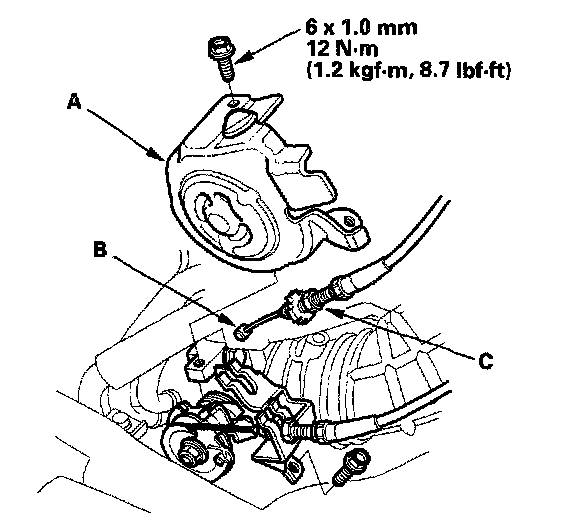

1. K20A3 engine: Remove the throttle cover (A), fully open the cruise control link by hand, then remove the cruise control cable (B) from link. Loosen the locknut (C), and remove the cable from the bracket.

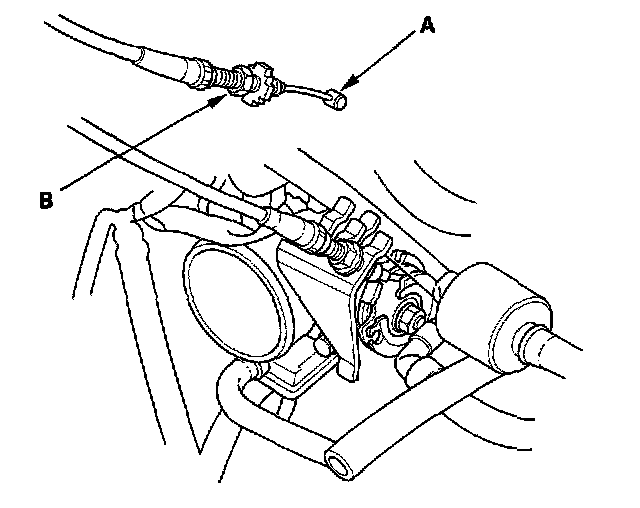

2. K20A2 engine: Fully open the cruise control link by hand, then remove the cruise control cable (A) from link. Loosen the locknut (B), and remove the cable from the bracket.
3. Remove the cowl cover.

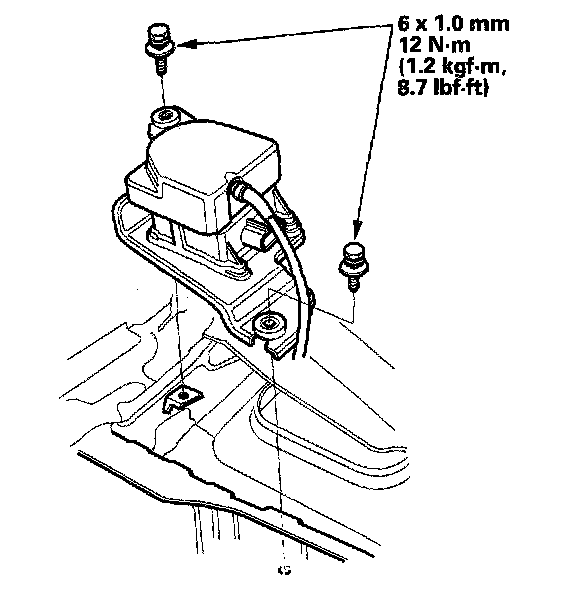

4. Disconnect the 4P connector, and remove the two bolts securing the actuator.

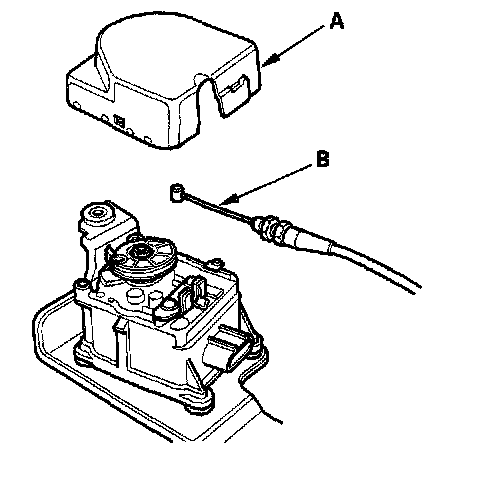

5. Remove the actuator cover (A), then remove the actuator cable (B) from the actuator.

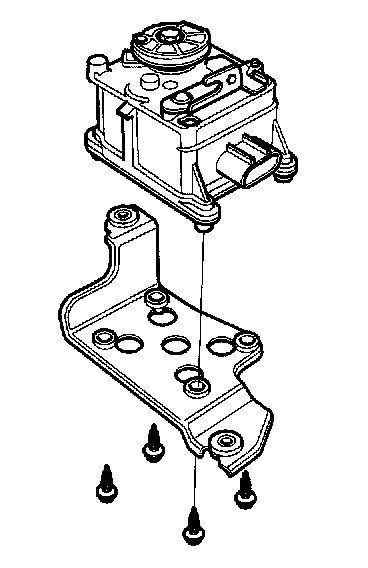

6. Remove the bracket from the actuator.
7. Install in the reverse order of removal, and adjust the free play at the throttle linkage after connecting the actuator cable.
