Impact Sensor

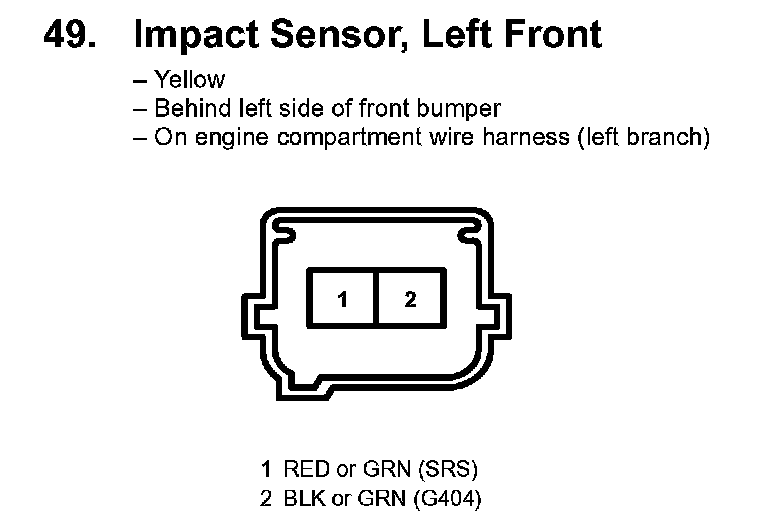

49. Impact Sensor, Left Front:

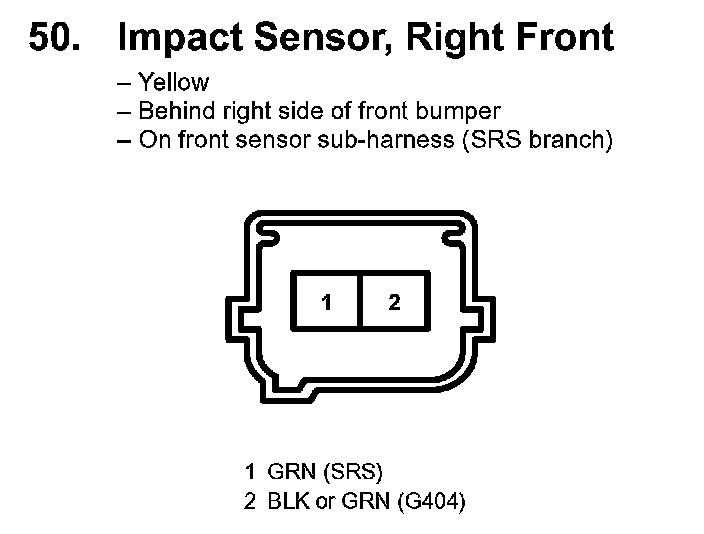

50. Impact Sensor, Right Front:

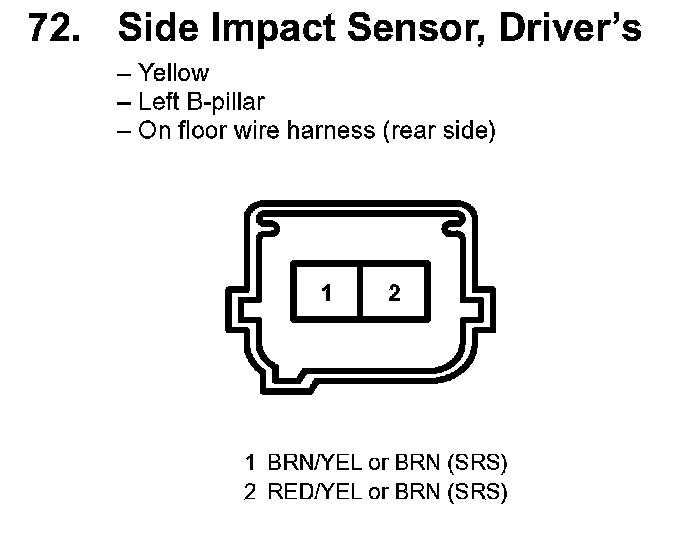

72. Side Impact Sensor, Driver's:

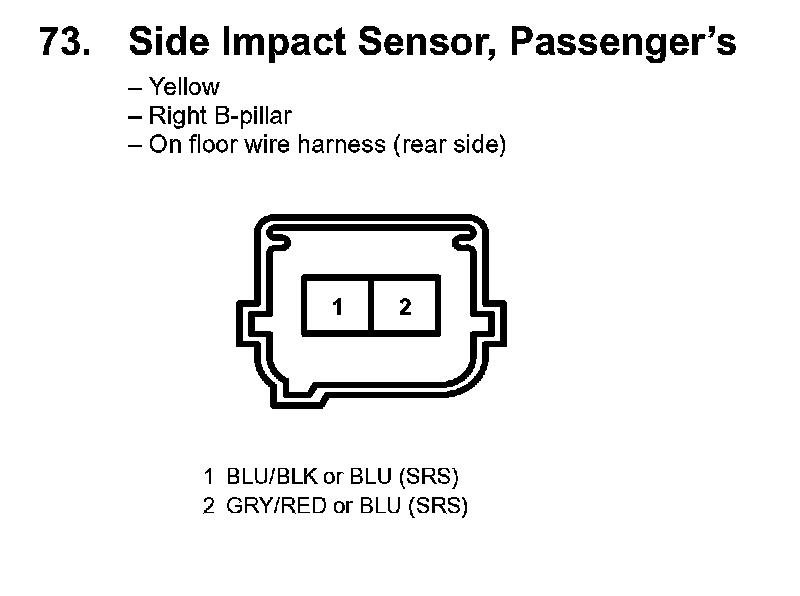

73. Side Impact Sensor, Passenger's:
