CMP Sensor A

CMP Sensor Replacement

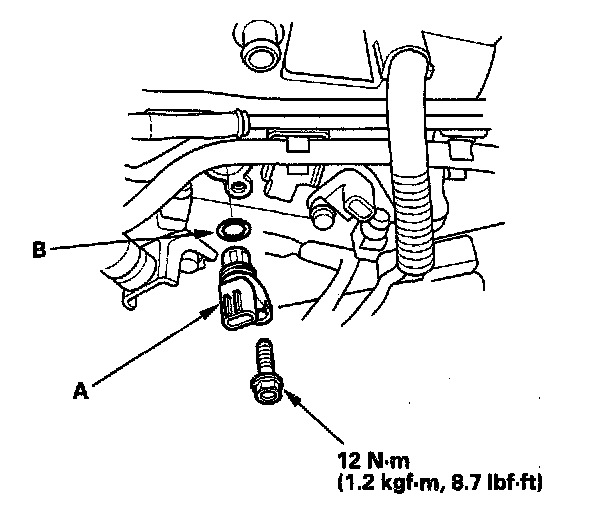

1. Remove the air cleaner.
2. Disconnect the CMP sensor 3P connector.
3. Remove the CMP sensor (A).
4. Install the sensor in the reverse order of removal with a new O-ring (B).
